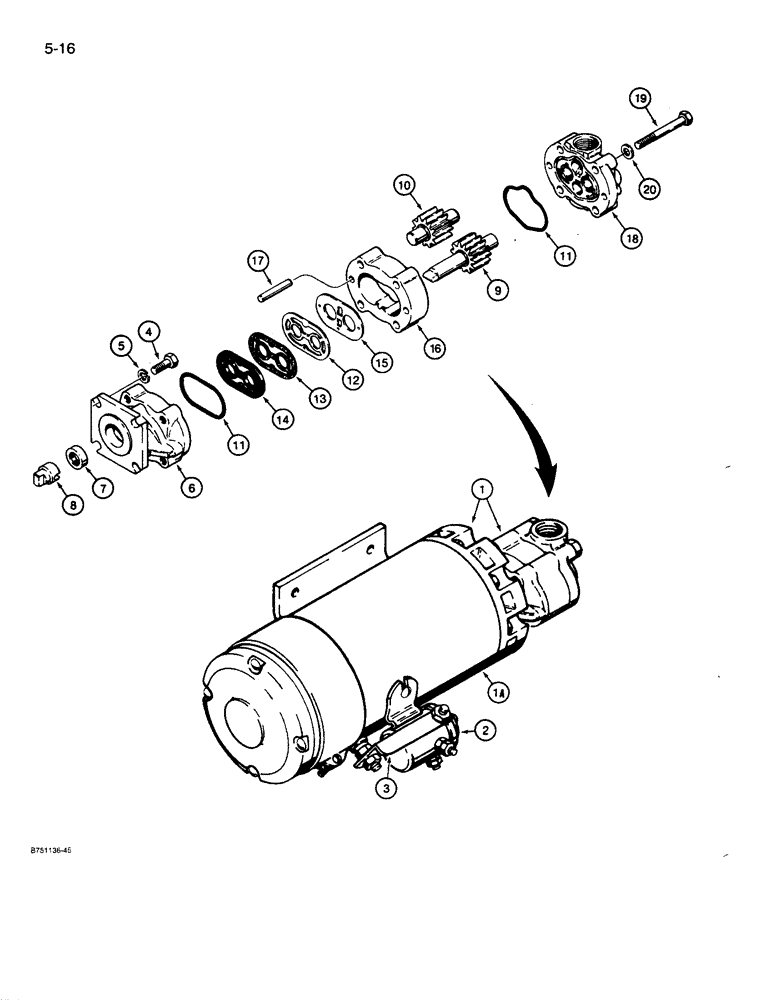

Запчасти Case 621 (5-16) - AUXILIARY STEERING PUMP AND MOTOR ASSEMBLY (05) - STEERING

1

L116118

PUMP, HYDRAULIC

PUMP AND MOTOR ASSEMBLY - auxiliary steering, see Figure 5-14 for mounting, Includes: Ref. 1A - 5

1шт.

1a

D71479

MOTOR, ELECTRIC

MOTOR ASSEMBLY - auxiliary steering, parts list Figure 4-44

1шт.

2

L115871

SOLENOID SWITCH

SOLENOID - electric motor, component parts not serviced separately

1шт.

3

D71481

CONNECTOR, ELEC

STRAP - solenoid mounting, see Figure 4-44 for mounting hardware

1шт.

4

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

5

92-5

LOCK WASHER,5/16"

4шт.

D71482

PUMP

ASSEMBLY - auxiliary steering, Includes: Ref. 6 - 20

1шт.

6

D71496

COVER

- shaft end

1шт.

7

A52213

SEAL,12.7mm ID x 25.48mm OD x 6.35mm Thk

- shaft

1шт.

8

D71498

COUPLING

- pump drive

1шт.

9

D71497

PINION

GEAR - drive, pump

1шт.

10

N9276

GEAR

- driven, pump

1шт.

11

N9277

O-RING

- seal

2шт.

12

N9281

LARGE PLATE

SHIELD - heat, pump

1шт.

13

N9282

GASKET

- pump

1шт.

14

N9283

SEAL

- V-type

1шт.

15

N9280

LARGE PLATE

PLATE - wear, pump

1шт.

16

N9278

HOUSING

- gear

1шт.

17

F53109

DOWEL

PIN - dowel, pump

2шт.

18

N9275

COVER

- port end

1шт.

19

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

4шт.

20

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.
