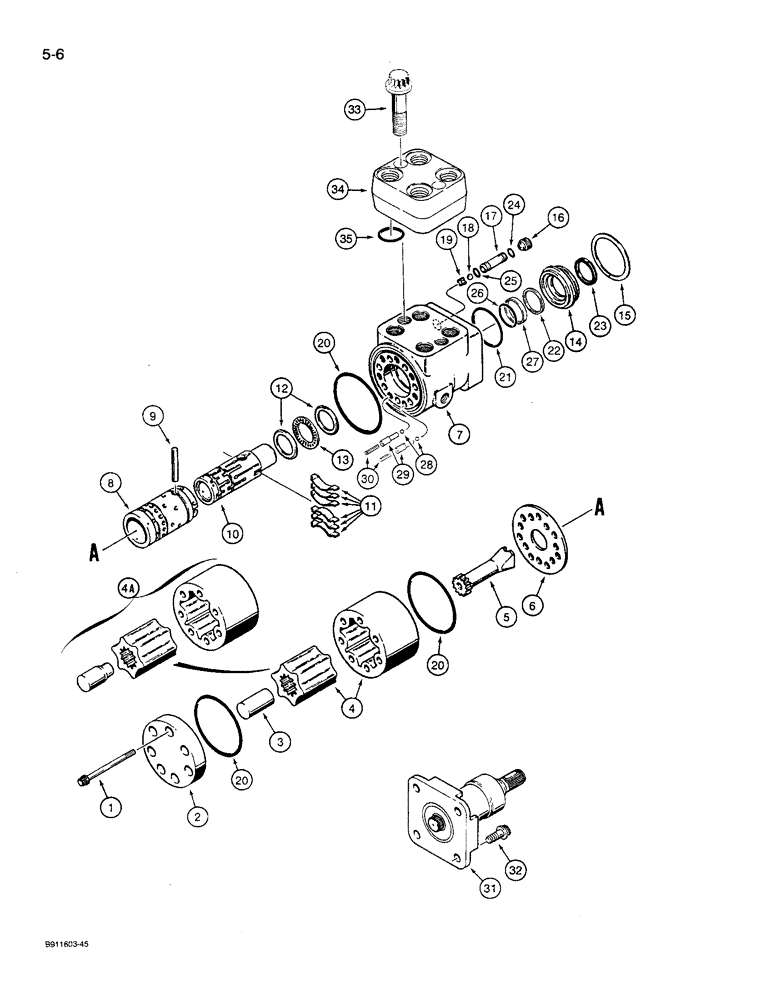

Запчасти Case 621 (5-06) - STEERING CONTROL VALVE ASSEMBLY (05) - STEERING

L123997

VALVE

ASSEMBLY - steering control, with column, without internal or bolt-on relief, order L129607 valve

1шт.

L129607

VALVE

ASSEMBLY - steering control, with column, with internal relief

1шт.

L128420

VALVE

ASSEMBLY - steering control, without column, without internal or bolt-on relief, L123997 valve

1шт.

S301969

VALVE

ASSEMBLY - steering control, without column, with internal relief, L129607 valve, Includes: Ref. 1 - 6

1шт.

1

D51217

BOLT,5/16" x 3 1/2"

- 12 point, special

7шт.

2

D82809

COVER

- end

1шт.

3

D83220

SPACER

- drive shaft, use with item 4, D83219, gerotor set

1шт.

4

D83219

ROTOR

GEROTOR SET - valve, no longer available, order item 4A kit

1шт.

4a

100066A1

ROTOR

KIT - gerotor set and spacer

1шт.

5

L30878

DRIVE SHAFT

SHAFT - drive, valve

1шт.

6

S113037

PLATE

- spacer

1шт.

D83215

BODY

CONTROL ASSEMBLY - valve, L128420 valve

1шт.

S301971

TESTER

CONTROL ASSEMBLY - valve, S301969 valve, Includes: Ref. 7 - 11

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - control assembly

1шт.

8

NSS

NOT SOLD SEPARAT

SLEEVE - control assembly

1шт.

9

L30888

PIN

- sleeve

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - control assembly

1шт.

11

N14250

KIT

- spring, spool (set of 6)

1шт.

12

D82804

RACE

WASHER - thrust, bearing

2шт.

13

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Needle

1шт.

14

N13312

CYLINDER END CAP

BUSHING - spool

1шт.

15

S110169

WASHER

RING - retaining, bushing

1шт.

16

D82805

SET SCREW

SCREW - set, special

1шт.

17

D82806

VALVE SEAT

SPOOL - ball check

1шт.

18

211-9

BALL,5/16" Dia

- 5/16 inch, grade 200, chrome alloy steel, check

1шт.

19

L35368

RETAINER

- ball

1шт.

S301023

SEAL KIT

KIT - seal, Includes: Ref. 20 - 32

1шт.

20

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

- cap and plate

3шт.

21

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- body

1шт.

22

N13314

RING

- backup, seal

1шт.

23

A28211

OIL SEAL

- bushing

1шт.

24

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, Seat, outer

1шт.

25

L30893

O-RING,1/16" Thk x 5/16" ID

- seat, inner, 7/16 x 5/16 x 1/16 in

1шт.

26

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

Spool, inner -121, 70 Duro, 1.049" ID x .103" Thk

1шт.

27

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

- spool, inner

1шт.

28

211-204

BALL

- 3/16 inch, grade 25, chrome alloy steel, S301969 valve

2шт.

29

N14764

PLUG

- retainer, anti-cavitation, S301969 valve

2шт.

30

N14763

SPRING

- anti-cavitation, S301969 valve

2шт.

31

L100706

CAP

COLUMN ASSEMBLY - lower, steering, individual components are not serviced separately, L123997 valve

1шт.

31

S301818

CAP

COLUMN ASSEMBLY - lower, steering, individual components are not serviced separately, S301969 valve

1шт.

32

166-43

12 PT SCREW,Flg, 3/8" - 16 x 3/4", Gr 8

BOLT - 12 point, 3/8 NC x 3/4 inch, grade 8

2шт.

L129558

VALVE

ASSEMBLY - relief, steering, bolt-on, L123997 or L128420 valve, Includes: Ref. 33 - 35

1шт.

33

S301686

12 PT SCREW

SCREW - 12 point, special

2шт.

34

NSS

NOT SOLD SEPARAT

BLOCK - relief, steering, bolt-on

1шт.

35

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

4шт.
