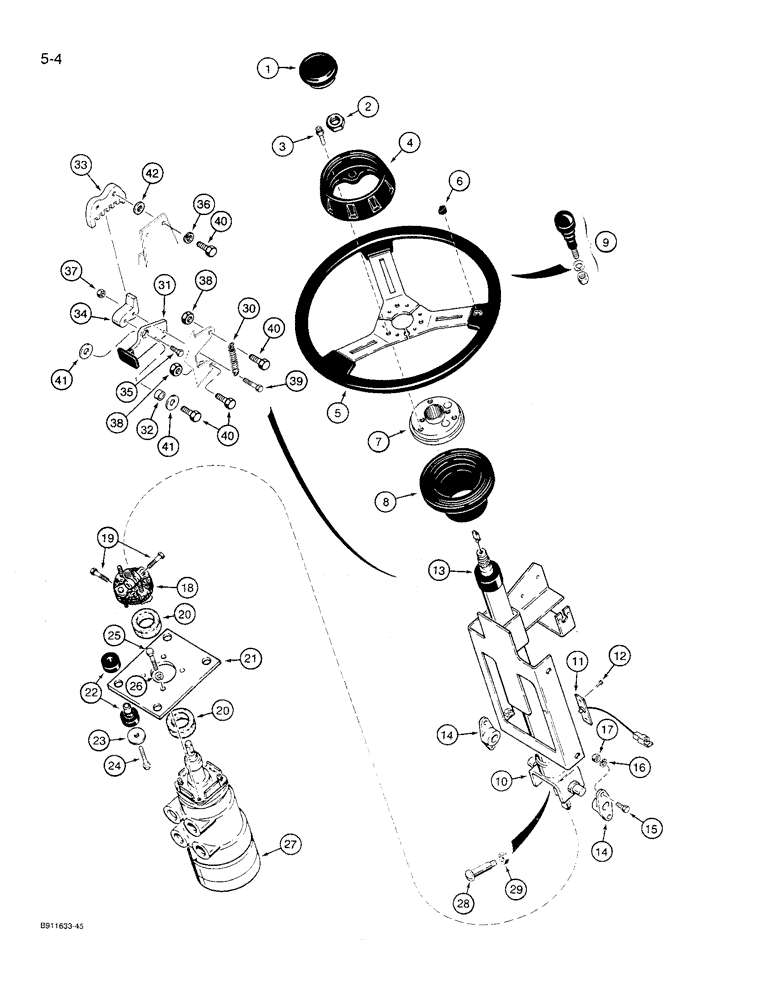

Запчасти Case 621 (5-04) - STEERING WHEEL AND COLUMN, INCLUDES TILT LATCH, P.I.N. JAK0027512 AND AFTER (05) - STEERING

1

1339877C2

BUTTON

- horn

1шт.

2

F19646

LOCK NUT,13/16"-20, Thin

NUT - lock, wheel

1шт.

L128095

WHEEL (STEERING)

WHEEL ASSEMBLY - steering, Includes: Ref. 3 - 8

1шт.

3

S301434

SCREW

- special

3шт.

4

S301399

CAP

- steering wheel

1шт.

5

D147465

STEERING WHEEL

WHEEL - steering

1шт.

6

S301435

PLUG

- steering wheel, remove to use spinner knob

1шт.

7

S301401

HUB

- steering wheel

1шт.

8

S301400

BOOT

- steering wheel

1шт.

9

L127996

KNOB

- spinner, steering wheel, if used

1шт.

1344401C3

STEERING COLUMN

COLUMN ASSEMBLY - steering, Includes: Ref. 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

COLUMN - steering

1шт.

11

1987236C1

BRUSH ASSY.

BRUSH - horn

1шт.

12

261-5454

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/4"

SCREW - self-tapping, pan, Phillips, No. 10 NC x 1/4 inch

2шт.

13

A49647

CAP

COVER - column, top

1шт.

14

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

PIVOT - steering column

2шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

16

492-11038

LOCK WASHER,3/8"

4шт.

17

425-106

NUT,3/8"-16, Cl 5

4шт.

18

L100096

ISOLATOR

COUPLING - isolator

1шт.

19

414-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

Hex, 3/8"-24 x 1 1/4", G5, Full Thd

2шт.

20

A145915

SEAL,41.148mm ID x 57.15mm OD x 12.7mm Thk

- floor plate and steering control valve

2шт.

21

1339712C1

LARGE PLATE

PLATE - floor, steering alignment

1шт.

22

A141515

ISOLATOR

MOUNT - floor plate, includes both halves

4шт.

23

495-81150

WASHER,0.44" ID x 1.25" OD x 0.07" Thk

- flat, 7/16 x 1-1/4 x 1/16 inch

4шт.

24

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

4шт.

25

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

26

492-11038

LOCK WASHER,3/8"

2шт.

27

L129607

VALVE

ASSEMBLY - control, steering, parts list Figure 5-06

1шт.

28

L128176

STEP BOLT

BOLT - shoulder, special, replaces rivet in steering column U-joint for service, use with item 29 nut

1шт.

29

L128177

LOCK NUT

- self-locking, special, use with item 28 shoulder bolt

1шт.

30

A163012

SPRING

- tilt latch

1шт.

31

1990517C1

LEVER

- tilt latch

1шт.

32

1990519C1

SPACER

BUSHING - lever

1шт.

33

1969906C3

LATCH ASSY.

RACK - tilt latch

1шт.

34

1969903C4

LATCH ASSY.

LATCH - tooth

1шт.

35

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

36

492-11038

LOCK WASHER,3/8"

2шт.

37

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex, jam, 1/4 inch NC

1шт.

38

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

2шт.

39

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

40

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

5шт.

41

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

2шт.

42

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

There's a universal joint not shown in this picture that's part of the steering. The part number is 194040A1. To see a picture of this look in catalog # 8-9371R2 - 621B Figure 5-2 Ref: #13A & 46.

1шт.
