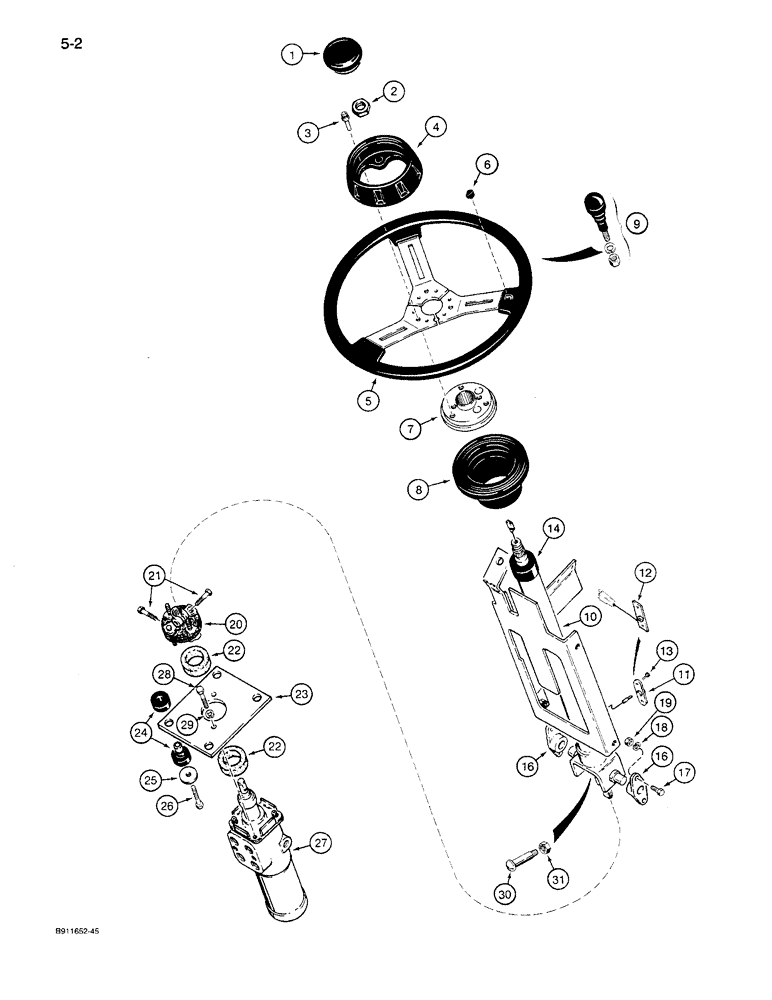

Запчасти Case 621 (5-02) - STEERING CONTROL VALVE AND WHEEL, PRIOR TO P.I.N. JAK0027512 (05) - STEERING

1

1339877C2

BUTTON

- horn

1шт.

2

F19646

LOCK NUT,13/16"-20, Thin

NUT - lock, wheel

1шт.

L128095

WHEEL (STEERING)

WHEEL ASSEMBLY - steering, Includes: Ref. 3 - 8

1шт.

3

S301434

SCREW

- special

3шт.

4

S301399

CAP

- steering wheel

1шт.

5

D147465

STEERING WHEEL

WHEEL - steering

1шт.

6

S301435

PLUG

- steering wheel, remove to use spinner knob

1шт.

7

S301401

HUB

- steering wheel

1шт.

8

S301400

BOOT

- steering wheel

1шт.

9

L127996

KNOB

- spinner, steering wheel, if used

1шт.

1977360C5

STEERING COLUMN

COLUMN ASSEMBLY - steering, Includes: Ref. 11 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

COLUMN - steering

1шт.

11

1977650C1

BRUSH ASSY.

BRUSH - horn, if used, see item 12

1шт.

12

1987236C1

BRUSH ASSY.

BRUSH - horn, if used, see item 11

1шт.

13

261-5454

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/4"

SCREW - self-tapping, pan Phillips, No. 10 NC x 1/4 inch

2шт.

14

A49647

CAP

COVER - column, top

1шт.

16

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

PIVOT - steering column

2шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

18

492-11038

LOCK WASHER,3/8"

4шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

20

L100096

ISOLATOR

COUPLING - isolator

1шт.

21

114-201

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5, Full Thd

- hex, 3/8 NF x 1-1/4 inch

2шт.

22

A145915

SEAL,41.148mm ID x 57.15mm OD x 12.7mm Thk

- floor plate and steering control valve

2шт.

23

1339712C1

LARGE PLATE

PLATE - floor, steering alignment

1шт.

24

A141515

ISOLATOR

MOUNT - floor plate, includes both halves

4шт.

25

495-81150

WASHER,0.44" ID x 1.25" OD x 0.07" Thk

- flat, 7/16 x 1-1/4 x 1/16 inch

4шт.

26

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

4шт.

27

REF

INSTRUCTION

VALVE ASSEMBLY - control, steering, for correct assembly and components, see Figure 5-06

1шт.

28

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

29

492-11038

LOCK WASHER,3/8"

2шт.

30

L128176

STEP BOLT

BOLT - shoulder, special, replaces rivet in steering column U-joint for service, use with item 31 nut

1шт.

31

L128177

LOCK NUT

- self-locking, special, use with item 30 shoulder bolt

1шт.

There's a universal joint not shown in this picture that's part of the steering. The part number is 194040A1. To see a picture of this look in catalog # 8-9371R2 - 621B Figure 5-2 Ref: #13A & 46.

1шт.
