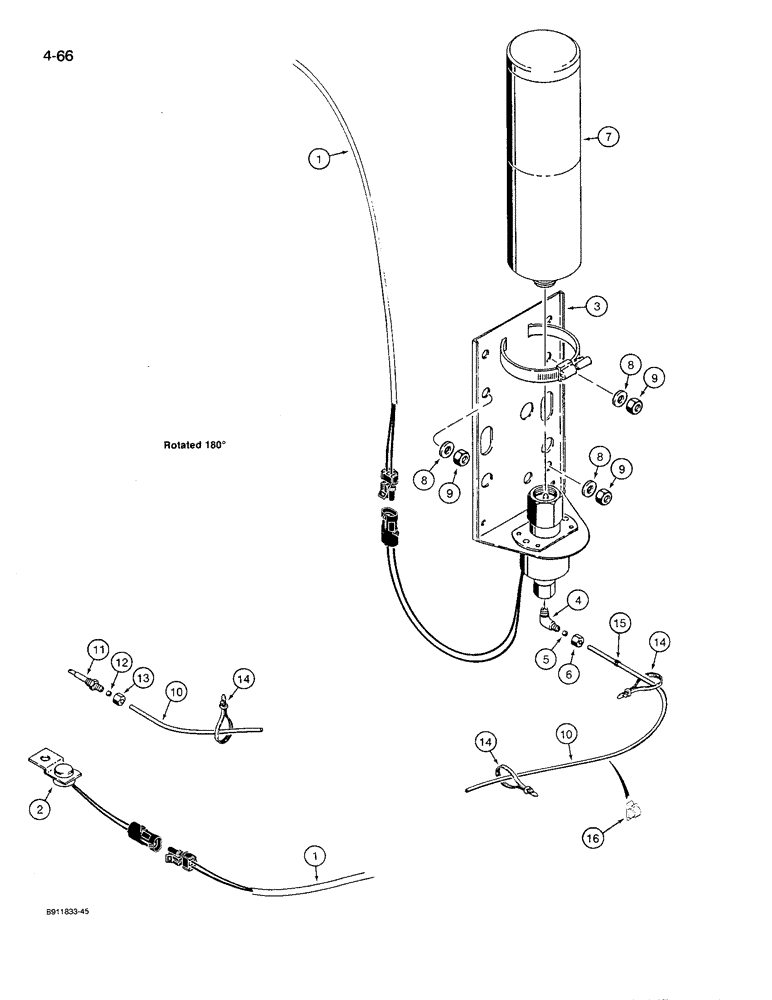

Запчасти Case 621 (4-66) - COLD WEATHER STARTING SYSTEM (04) - ELECTRICAL SYSTEMS

1

L129122

HARNESS

- rear, see Figures 4-36 and 4-38 for serviceable relay and other connections

1шт.

2

L126191

THERMOSTATIC SWITCH

THERMOCOUPLE - circuit breaking, includes lead wires, use existing engine hardware

1шт.

L126094

VALVE

ASSEMBLY - solenoid, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE - component parts not serviced separately

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube, Valve outlet 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

Tapered 1/8" Tube, Comp

1шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD 5/16"-24, 45º Fl, Comp

1шт.

7

A171940

CYLINDER

- starting fluid

1шт.

8

S95569

WASHER

- flat, hardened, special

3шт.

9

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

3шт.

10

A172361

TUBE

- nylon, 1/8 inch (3 mm) x 72 inch (1829 mm) long, cut from L60539, see below

1шт.

A172900

NOZZLE CAP

NOZZLE ASSEMBLY - cold start, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

12

222-650

SLEEVE,1/8" Tube, Comp

Tapered 1/8" Tube, Comp

1шт.

13

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD 5/16"-24, 45º Fl, Comp

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

15

L77834

GROMMET

- rubber, nylon tube

1шт.

16

L100659

CLIP

- tube

1шт.

L60539

TUBE,0.125" OD x 168" L

- nylon, 14 ft (427 cm) long

1шт.
