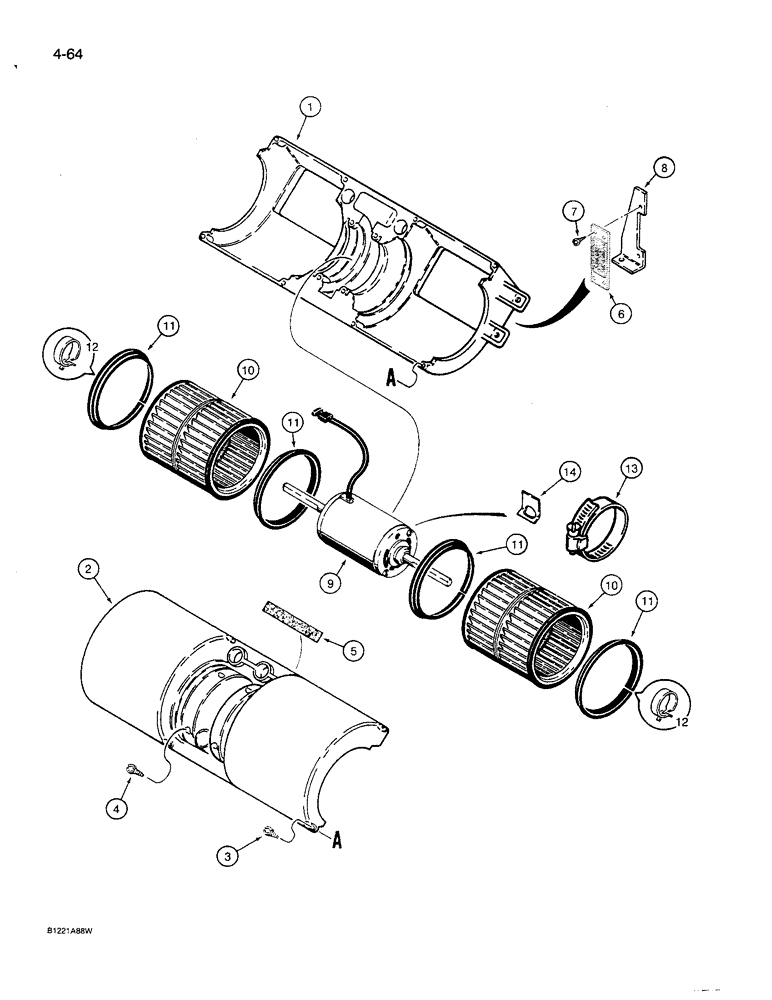

Запчасти Case 621 (4-64) - CAB BLOWER (04) - ELECTRICAL SYSTEMS

1

F64740

HOUSING

- fans, lower

1шт.

2

F64741

HOUSING

- fans, upper

1шт.

3

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - pan head, self-tapping, No. 8 x 3/4 inch

8шт.

4

187-1920

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

SCREW - pan head, self-tapping, No. 8 x 1 inch

4шт.

5

REF

INSTRUCTION

SEAL - foam, upper fan housing, 4 inch (102 mm) long, cut from F64119 bulk, see below

1шт.

6

F44903

RESISTOR

- blower, mounted on item 1, housing, for use with A187600 blower motor; see Figure 9-68, item 24, for mounting of resistor used with 1546448C1 motor

1шт.

7

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - tap, No. 10-16 x 1/2 inch, if used

2шт.

8

97389C1

SUPPORT

BRACKET - resistor mounting, with resistor mounted vertically, use with A187600 motor

1шт.

9

A187600

MOTOR, ELECTRIC

MOTOR - blower, 24 volt, with molded terminal and resistor mounted to bracket on housing

1шт.

9

1546448C1

MOTOR, ELECTRIC

MOTOR - blower, 24 volt, with molded terminal and resistor mounted to item 21, plenum duct, shown on Figure 9-68

1шт.

9

370512A1R

REMAN-ELECTRIC MOTOR

621, SN JAK0021701 & Aft., Reman For New P/N 1546448C1

1шт.

9

370512A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

10

F64935

BLOWER,Fan

FAN - blower

2шт.

11

F64739

RING

- plastic, fan retaining

4шт.

12

F64936

CLAMP

- hose

2шт.

13

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose, 1-13/16 to 2-3/4 inch

1шт.

14

R51563

CLIP,ELECTRICAL

CLIP - motor retaining clamp

1шт.

F64119

SEALING STRIP

SEAL - foam, bulk roll, 100 ft (3048 cm) long

1шт.
