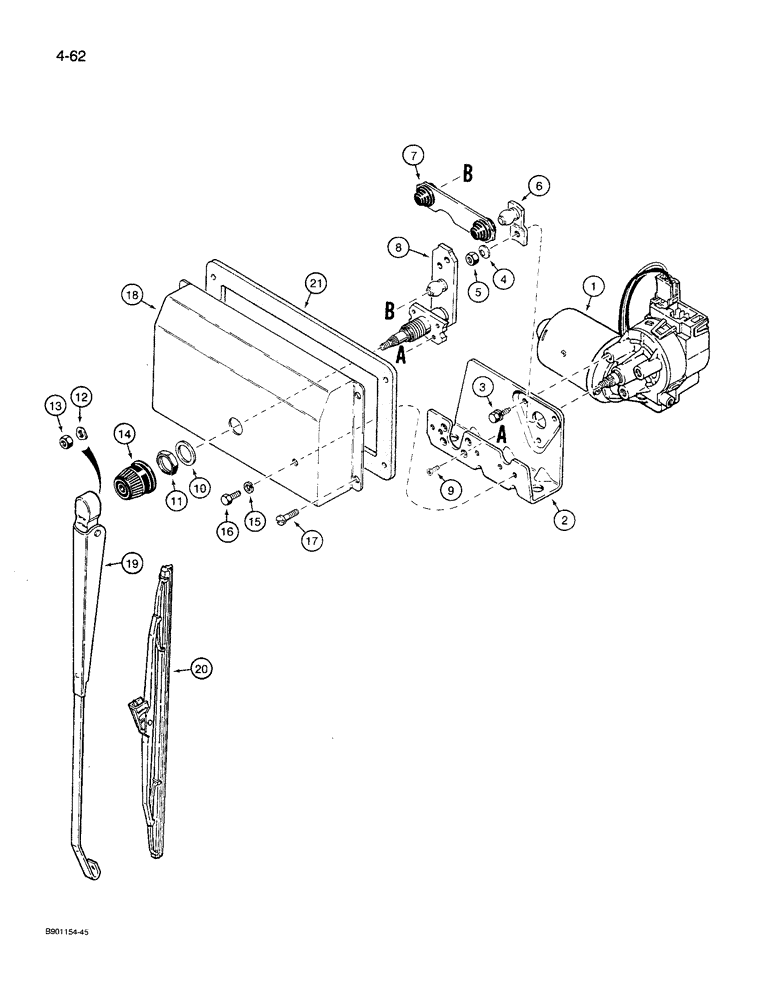

Запчасти Case 621 (4-62) - REAR WIPER (04) - ELECTRICAL SYSTEMS

A187672

WIPER MOTOR

MOTOR ASSEMBLY - with bracket, rear windshield wiper, 24 volt, Includes: Ref. 1 -9

1шт.

1

A187535

WIPER MOTOR

MOTOR - 24 volt, windshield wiper

1шт.

2

N8359

SUPPORT

BRACKET - wiper

1шт.

3

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

SCREW AND WASHER ASSEMBLY - mounting

3шт.

4

N8361

SPRING WASHER

SPRING - Belleville, washer

1шт.

5

L112090

NUT

- hex, special, 8 mm, shaft end

1шт.

6

N8360

SUPPORT

ARM - drive

1шт.

7

N8358

LINK

LINK - wiper

1шт.

8

N14112

SHAFT

AND PIVOT - wiper

1шт.

9

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

- special, pivot shaft to bracket

4шт.

10

L112088

WASHER

- flat, large, special, shaft

1шт.

11

L112087

NUT

- hex, specal, shaft

1шт.

12

L112089

WASHER

- wave, special, shaft end

1шт.

13

L112090

NUT

- hex, special, 8 mm, shaft end

1шт.

14

L112081

CAP

- pivot shaft end

1шт.

15

192-83

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

414-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

1шт.

17

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

SCREW - 1/4 NC x 3/4 inch, special

4шт.

18

1339894C1

COVER

- mounting, rear wiper

1шт.

19

A187712

WIPER ARM,Single, 500mm L

ARM - windshield wiper, 375 mm long, complete

1шт.

20

A186258

BLADE

- wiper arm, no longer available, order A187909 blade

1шт.

20

A187909

WIPER BLADE

BLADE - wiper arm, complete, see below for blade refill

1шт.

21

1345074C1

GASKET,5mm Thk

- rear wiper cover

1шт.

1983335C1

WIPER

BLADE - rubber, 500 mm long, refill

1шт.
