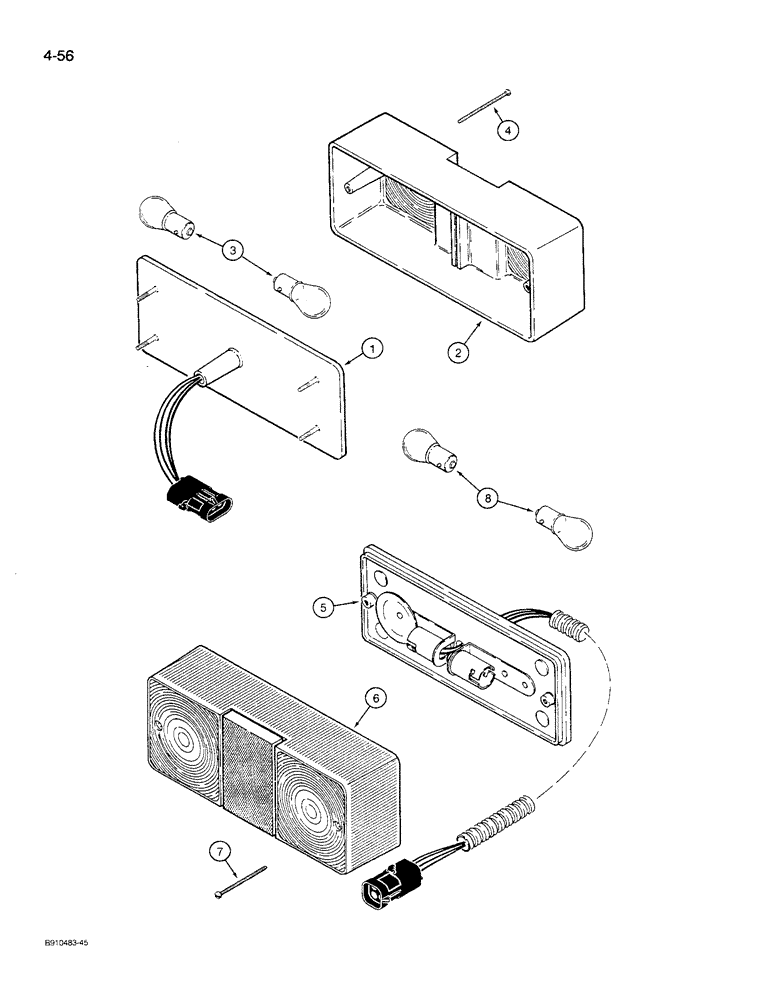

Запчасти Case 621 (4-56) - TURN SIGNAL, FLASHER, STOP AND TAIL LAMPS, TURN SIGNAL AND FLASHER LAMP (04) - ELECTRICAL SYSTEMS

A187992

LIGHT ASSY.,24V, 27W, Amber/Clear

LAMP ASSEMBLY - turn signal and flasher, right-hand, see Figure 4-50 for mounting, Includes: Ref. 1 - 4

1шт.

A187993

LIGHT ASSY.,24V, 27W, Amber/Clear

LAMP ASSEMBLY - turn signal and flasher, left-hand, see Figure 4-50 for mounting, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - lamp, turn signal and flasher lamp

1шт.

2

A186293

LENS

- lamp, turn signal and flasher lamp

1шт.

3

A15084

LAMP

BULB - No. 1683, turn signal and flasher lamp

2шт.

4

NSS

NOT SOLD SEPARAT

SCREW - lens mounting, turn signal and flasher lamp

2шт.

A187961

LAMP, TAIL

LAMP ASSEMBLY - stop and tail, right-hand, see Figure 4-52 for mounting, Includes: Ref. 5 - 8

1шт.

A187962

LAMP, TAIL

LAMP ASSEMBLY - stop and tail, left-hand, see Figure 4-52 for mounting, Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - lamp, stop and tail lamp

1шт.

6

A186295

LENS

- lamp, stop and tail lamp

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW - lens mounting, stop and tail lamp

2шт.

8

A15084

LAMP

BULB - lamp, No. 1683, stop and tail lamp

2шт.

Ref. #4 and #7 are 226668A1 screw. 04/22/96

1шт.
