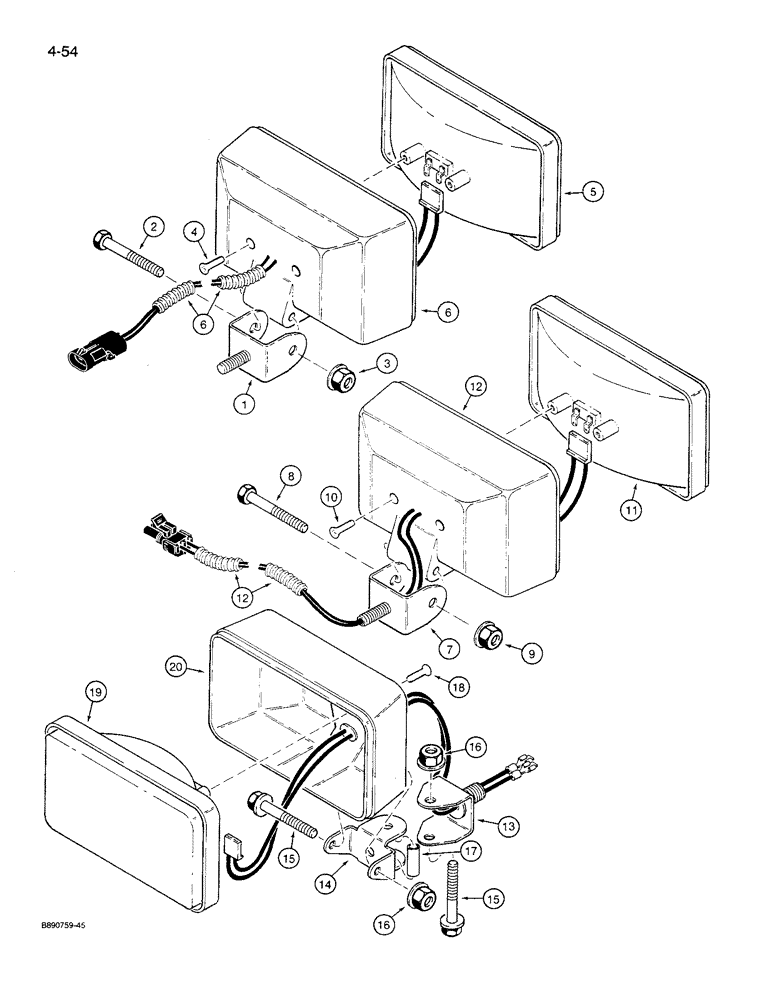

Запчасти Case 621 (4-54) - LAMPS, FRONT AND REAR, FRONT LAMP (04) - ELECTRICAL SYSTEMS

A187519

LIGHT ASSY.,24V, 70W, Clear

LAMP ASSEMBLY - drive, front lamp, Includes: Ref. 1 - 6

2шт.

1

A187913

SUPPORT

BRACKET - lamp, front

1шт.

2

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Front lamp Hex, 5/16"-18 x 2", G5

1шт.

3

131-937

FLANGE NUT,Flg, 5/16"-18

NUT - hex flange type, special-locking, 5/16 inch NC, front lamp

1шт.

4

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - pan head, self-tapping, No. 8 x 1/2 inch, front lamp

2шт.

5

N9427

HEADLIGHT

BULB - sealed beam, front lamp

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - lamp, front

1шт.

A187520

LIGHT ASSY.,24V, 70W, Clear

LAMP ASSEMBLY - flood, front and rear , Includes: Ref. 7 - 12

4шт.

7

A187913

SUPPORT

BRACKET - lamp, front and rear, flood

1шт.

8

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Front and rear flood lamps Hex, 5/16"-18 x 2", G5

1шт.

9

131-937

FLANGE NUT,Flg, 5/16"-18

NUT - hex flange type, special-locking, 5/16 inch NC, front and rear flood lamps

1шт.

10

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - pan head, self-tapping, No. 8 x 1/2 inch, front and rear flood lamps

2шт.

11

F45305

HEADLIGHT

BULB - sealed beam, front and rear flood lamps

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - lamp, front and rear, flood

1шт.

A187541

LIGHT ASSY.,Halogen, 24V, 70W, Clear

LAMP ASSEMBLY - flood, cab or canopy, Includes: Ref. 13 - 20

2шт.

13

A52216

SUPPORT

BRACKET - mounting, includes stud, cab or canopy flood lamps

1шт.

14

A52215

SUPPORT

BRACKET - mounting, lamp, cab or canopy flood lamps

1шт.

15

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

Cab or canopy flood lamps Hex Flg, 5/16"-18 x 2", Serr

2шт.

16

131-931

FLANGE NUT,Flg, USR, 5/16"-18

- hex, flange type, special locking, 5/16 inch NC, cab or canopy flood lamps

2шт.

17

A52219

SPACER

- bracket, cab or canopy flood lamps

1шт.

18

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - flat head, self-tapping, No. 8 x 1/2 inch, cab or canopy flood lamps

2шт.

19

F45305

HEADLIGHT

BULB - sealed beam, cab or canopy flood lamps

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - lamp, cab or canopy, flood

1шт.
