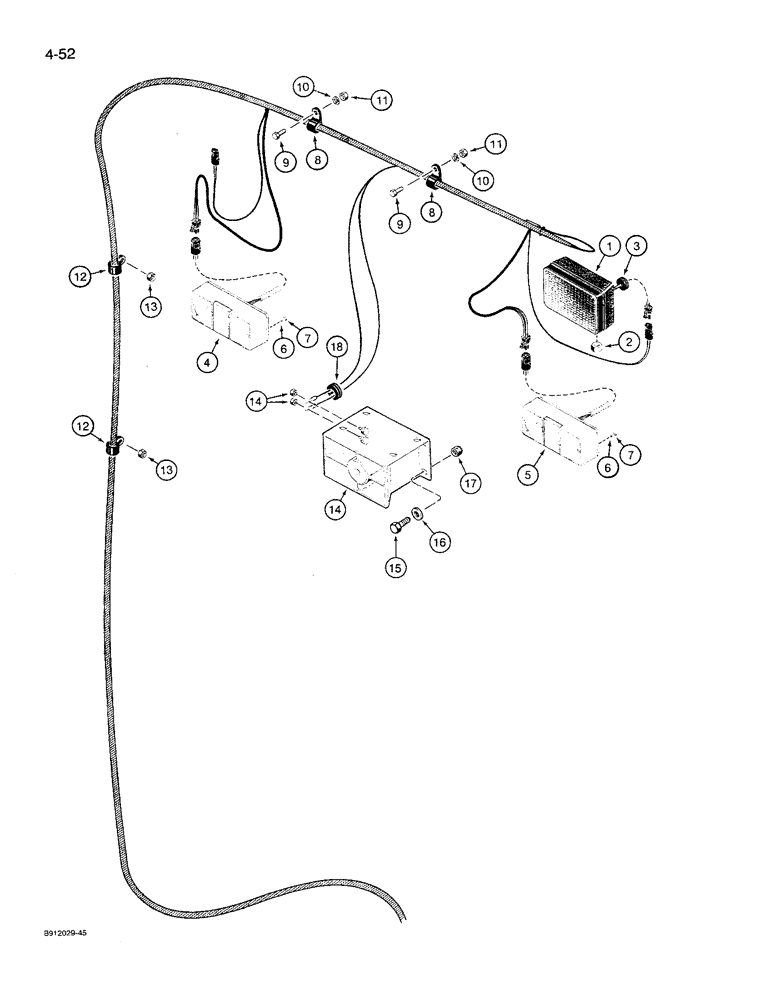

Запчасти Case 621 (4-52) - REAR LAMP AND BACKUP ALARM MOUNTING (04) - ELECTRICAL SYSTEMS

1

A187520

LIGHT ASSY.,24V, 70W, Clear

LAMP ASSEMBLY - flood, parts list Figure 4-54

2шт.

2

131-1402

THIN NUT,1/2"-13, GB, Thin

NUT, LOCK, 1/2"-13, GB, Thin

2шт.

3

L124504

GROMMET

- split

2шт.

4

A187962

LAMP, TAIL

LAMP - stop and tail, left-hand, parts list Figure 4-56

1шт.

5

A187961

LAMP, TAIL

LAMP - stop and tail, right-hand, parts list Figure 4-56

1шт.

6

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

8шт.

7

825-1405

NUT,M5, Cl 8

8шт.

8

49838

CLAMP

- wire

2шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

425-106

NUT,3/8"-16, Cl 5

2шт.

12

NLS

NO LONGER SERVICED

- harness

2шт.

13

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

2шт.

14

D121972

ALARM

- backup, electric, rectangular type, includes nuts

1шт.

15

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

4шт.

16

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

4шт.

17

86625061

NUT,1/4"-20, GB

NUT - light hex, self-locking, 1/4 inch NC

4шт.

18

L124504

GROMMET

- wire

1шт.
