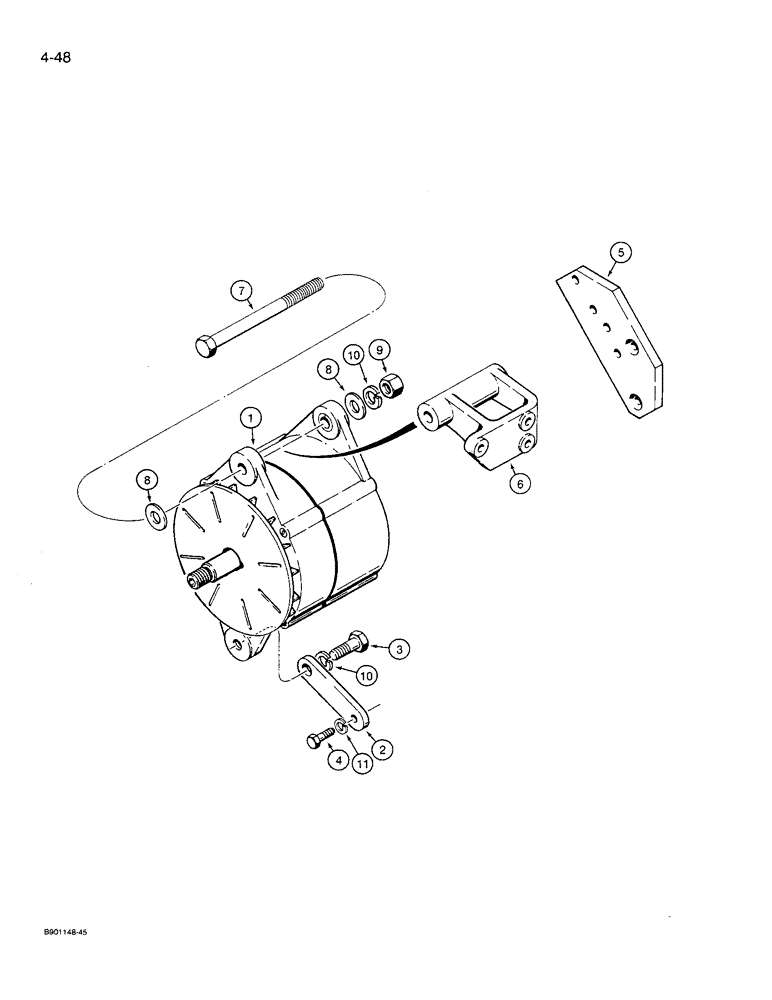

Запчасти Case 621 (4-48) - 65 AMP ALTERNATOR AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

1

1964860C1

ALTERNATOR,24V, 60A, W/O Pulley

ALTERNATOR ASSEMBLY - engine, 65 amp, for 24 volt system, parts list Figure 4-02

1шт.

1

1964860C1GV

ALTERNATOR

Value

1шт.

1

1964860C1R

REMAN-ALTERNATOR

621 CASE WHEEL LOADER (S/N JAK0021701 & AFTER) (NORTH AMERICA), ALTERNATOR ASSEMBLY, engine, 65 amp, for 24 volt system, 65 AMP

1шт.

1

1964860C1C

CORE-ALTERNATOR

Return Number

1шт.

2

J910924

PLATE

STRAP - alternator

1шт.

3

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

BOLT - hex, 1/2 NC x 1-1/4 inch

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT - hex, 8 - 1.25 x 25 mm

1шт.

5

J904553

SUPPORT

BRACKET - belt tensioner, supplied with engine

1шт.

6

J910923

BRACE

BRACKET - support, alternator, supplied with engine

1шт.

7

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

BOLT - hex, 1/2 NC x 6 inch

1шт.

8

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

WASHER - flat, 13.5 x 24 x 2.5 mm

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

11

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.
