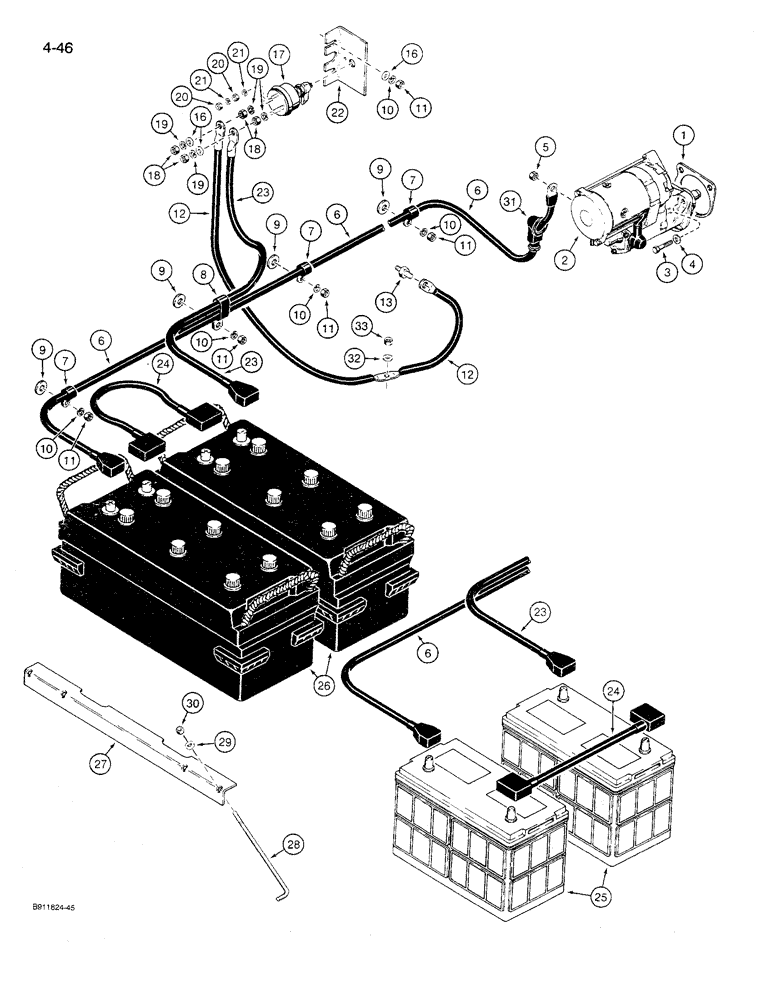

Запчасти Case 621 (4-46) - STARTER, BATTERY, AND BATTERY CABLES (04) - ELECTRICAL SYSTEMS

1

L112209

GASKET,0.79mm Thk

- starting motor

1шт.

2

D129494

STARTING MOTOR

STARTER ASSEMBLY - engine, parts list Figure 4-04

1шт.

2

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

2

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN D129494

1шт.

2

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

3

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 - 1.5 x 40 mm

3шт.

4

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

3шт.

5

825-1110

NUT,M10, Cl 8

- hex, 10 mm - 1.5

1шт.

6

L127638

CABLE

- battery to starter, positive terminal, 2100 mm long

1шт.

7

NLS

NO LONGER SERVICED

- battery cable to rear frame

4шт.

8

L19029

CLAMP

- double, battery cable to rear frame

1шт.

9

S95569

WASHER

- flat, hardened, special

5шт.

10

492-11038

LOCK WASHER,3/8"

7шт.

11

425-106

NUT,3/8"-16, Cl 5

7шт.

12

L124790

CABLE

- ground, engine to disconnect switch

1шт.

13

L127553

STUD

ADAPTER - stud

1шт.

16

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

L126256

SWITCH

- master disconnect, Includes: Ref. 17 - 21

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - switch

1шт.

18

129-187

NUT,5/16"-24, Brass

6шт.

19

492-11038

LOCK WASHER,3/8"

4шт.

20

131-573

NUT,#10-32

NUT - hex, self-locking, No. 10 NF

4шт.

21

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

22

L126108

SUPPORT

BRACKET - mounting, disconnect switch

1шт.

23

L124788

CABLE

- ground, disconnect switch to battery, negative terminal

1шт.

24

L124738

CABLE

- jumper, Serial Range: battery-battery

1шт.

25

BMF31E

DRY BATTERY

BATTERY - standard, 12 volt, dry type, service replacement

2шт.

26

BHC4DA

BATTERY, DRY

BATTERY - heavy duty, 12 volt, dry type, service replacement

2шт.

27

L124221

SUPPORT

BRACKET - battery hold down

2шт.

28

L124224

BOLT

BOLT - special, J-type, battery hold down

4шт.

29

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

30

231-1445

NUT,5/16"-18, GB

NUT - light hex, self-locking, 5/16 inch NC

4шт.

31

L126713

BOOT

- plastic, cable at starter

1шт.

32

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

- flat, special

1шт.

33

L127555

NUT,Hex, 3/8" - 16

- hex, special

1шт.
