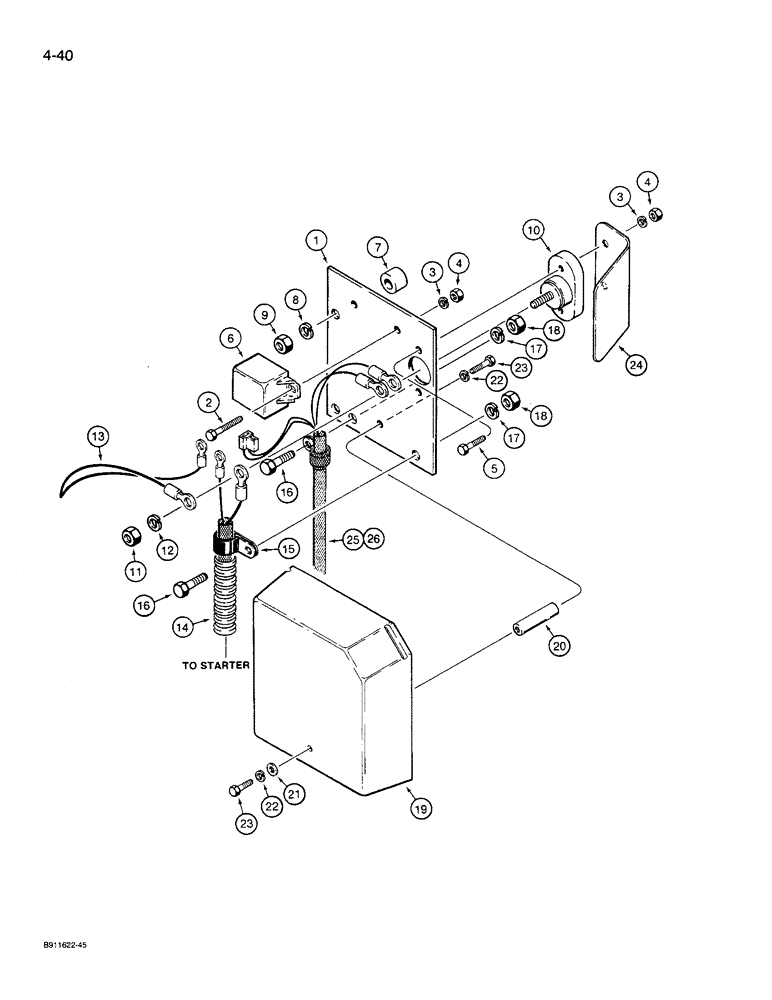

Запчасти Case 621 (4-40) - REAR HARNESS TO RELAY PANEL (04) - ELECTRICAL SYSTEMS

1

L124084

LARGE PLATE

PANEL - relay mounting

1шт.

2

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

5

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

6

1546542C1

RELAY

- starter

1шт.

7

S77915

SPACER

- relay panel mounting

2шт.

8

492-11038

LOCK WASHER,3/8"

2шт.

9

425-106

NUT,3/8"-16, Cl 5

2шт.

L124085

CONNECTOR, ELEC

BLOCK - terminal, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - terminal block, includes flat washer

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

L124102

ELECTRICAL WIRE

WIRE - jumper

1шт.

14

L124097

CABLE

-, Serial Range: relay-starter

1шт.

15

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- cable

1шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.

19

L114612

COVER

- relay panel

1шт.

20

L114195

SPACER

- relay cover

1шт.

21

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

1шт.

22

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

23

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

24

L125774

PROTECTOR

SHIELD - heat, terminal block

1шт.

25

L129122

HARNESS

- rear, see Figures 4-36 and 4-38 for continuation of harness, Serial Range: -JAK0027512

1шт.

26

L128690

HARNESS

- rear, see Figures 4-36 and 4-38 for continuation of harness JAK0027512 to

1шт.
