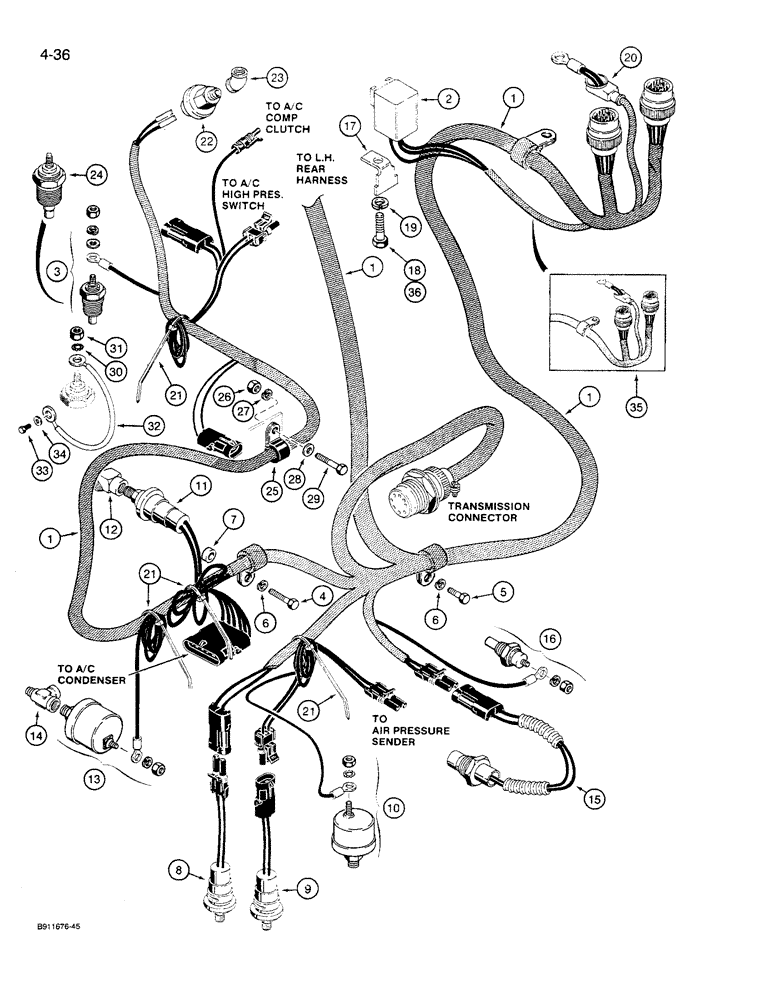

Запчасти Case 621 (4-36) - REAR HARNESS, ENGINE RIGHT-HAND SIDE (04) - ELECTRICAL SYSTEMS

1

L129122

HARNESS

- rear, see Figures 4-38 and 4-40 for continuation of harness, Includes: Ref. 2, Serial Range: -JAK0027512

1шт.

2

A186288

RELAY

- control, transmission to shifter

1шт.

3

A187529

TEMPERATURE SENDER

SENDER - engine temperature to JAK0022020

1шт.

4

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

1шт.

5

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

6

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

7

L58752

TUBE SPACER,13.53mm ID x 19.05mm OD x 18.28mm L

SPACER - 23/32 inch long, harness clamp

1шт.

8

1546463C1

SWITCH, PRESSURE

SWITCH - declutch, low air

1шт.

9

A187531

SWITCH

- pressure, low air

1шт.

10

L128324

SENDER UNIT

SENDER - air pressure, brake, use on units with optional gauges

1шт.

11

A187723

SENDER UNIT

SWITCH - engine oil pressure

1шт.

12

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street 45º, 1/8"-27 Female x 1/8"-27 Male

1шт.

13

L127534

SENDER UNIT

SENDER - engine oil pressure, use on units with optional gauges

1шт.

14

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

- 1/8 inch female PT branch x female PT x PT

1шт.

15

A187530

TEMPERATURE SENDER

SWITCH - temperature, transmission oil

1шт.

16

L127532

TEMPERATURE SENDER,1/2" - 14

SENDER - temperature, transmission oil

1шт.

17

L127449

SUPPORT

BRACKET - mounting, transmission shift relay, L129122 harness

1шт.

18

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, use with L127449 bracket

1шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

20

L126713

BOOT

- plastic, harness at floor of operators compartment

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

22

1983233C1

RESTRICTION SWITCH

SWITCH - restriction, air cleaner

1шт.

23

221-1365

ELBOW,45 Degree, 1/8" NPT

- pipe, 45 degree, 1/8 inch

1шт.

24

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - engine temperature, Start Serial: JAK0022020

1шт.

25

S79579

CLAMP

- harness

1шт.

26

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

28

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

29

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

30

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

1шт.

31

225-20210

NUT,#10-32, Brass

1шт.

32

L129823

ELECTRICAL WIRE

WIRE - resistor, engine coolant temperature sender to engine, use with A191109, item 2, page 4-6, Start Serial: JAK0022054

1шт.

Ref #32 - (Has a 1/2 watt, 2.7 ohm resistor built into it. The resistor is not serviced separately) 04/22/96

1шт.

33

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 16 mm

1шт.

34

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

35

L128690

HARNESS

- rear, see Figures 4-38 and 4-40 for continuation of harness, Start Serial: JAK0027512

1шт.

36

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch, if used

1шт.
