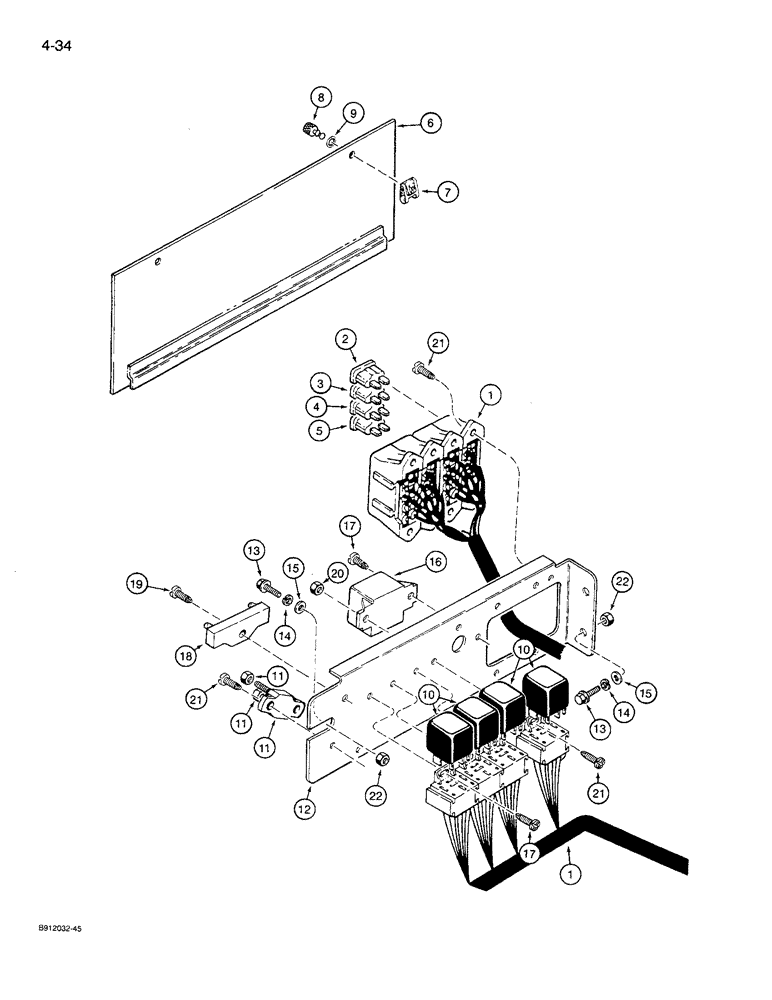

Запчасти Case 621 (4-34) - MAIN CANOPY HARNESS, POWER DISTRIBUTION CENTER, P.I.N. JAK0027512 AND AFTER (04) - ELECTRICAL SYSTEMS

1

1546471C1

HARNESS

- main ROPS canopy, see Figure 4-32 for serviceable rectifiers

1шт.

2

A149796

FUSE

- 3 ampere (Violet)

1шт.

3

A149798

FUSE

- 5 ampere (Tan)

3шт.

4

A149800

FUSE,10 Amp

- 10 ampere (Red)

7шт.

5

A149801

FUSE,Lt Blue, 15 Amp

- 15 ampere (Light blue)

1шт.

6

1977999C3

COVER

- fuse box

1шт.

7

A36042

CLIP

RECEPTACLE - quarter turn

2шт.

8

1970049C2

STUD

- fuse box

2шт.

9

1981869C1

WASHER

- stud

2шт.

10

A186288

RELAY

- mini

4шт.

11

S243558

CIRCUIT-BREAKER,12.5A

BREAKER - circuit, 12.5 amp, includes bracket, with plastic housing and seal

1шт.

12

1987018C2

SUPPORT

HOUSING - power distribution center

1шт.

13

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

- Self tapping, hex washer, 1/4 NC x 3/4 inch

3шт.

14

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

15

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 5/64 inch

3шт.

16

1546485C1

RELAY,24V

- canopy power, not sealed, production only

1шт.

16

1546542C1

RELAY

- canopy power, sealed, service only

1шт.

17

261-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/8 inch

2шт.

18

F22316

RESISTOR,75 Ohms 0.2 Amps DC

- 75 ohm

1шт.

19

261-13516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

SCREW - self-tapping, pan Phillips, No. 10 NC x 1 inch

1шт.

20

231-51409

SERRATED NUT,Flg, USR, #10-24

1шт.

21

261-13512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/4 inch

7шт.

22

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.
