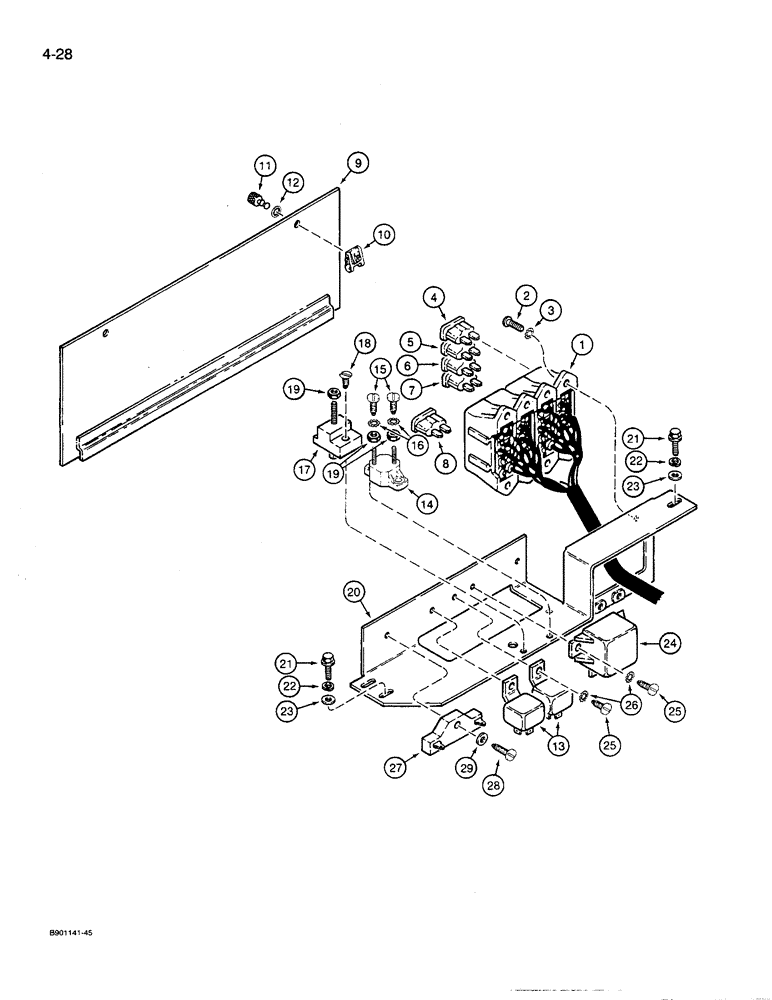

Запчасти Case 621 (4-28) - CANOPY HARNESS, OPERATORS COMPARTMENT, POWER DISTRIBUTION CENTER, PRIOR TO P.I.N. JAK0027512 (04) - ELECTRICAL SYSTEMS

1

A187886

SWITCH

HARNESS - ROPS canopy, see Figure 4-26 for serviceable rectifiers

1шт.

2

187-330

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - self-tapping, pan head, No. 10-16 x 5/8 inch

4шт.

3

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

4шт.

4

A149796

FUSE

- 3 ampere (Violet)

1шт.

5

A149798

FUSE

- 5 ampere (Tan)

2шт.

6

A149799

FUSE

- 7.5 ampere (Brown)

4шт.

7

A149800

FUSE,10 Amp

- 10 ampere (Red)

5шт.

8

A149801

FUSE,Lt Blue, 15 Amp

- 15 ampere (Light blue)

1шт.

9

1977999C3

COVER

- fuse box

1шт.

10

A36042

CLIP

RECEPTACLE - quarter turn

2шт.

11

1970049C2

STUD

- fuse box

2шт.

12

1981869C1

WASHER

- stud

2шт.

13

A186288

RELAY

- mini

2шт.

14

S243558

CIRCUIT-BREAKER,12.5A

BREAKER - circuit, 12.5 amp, includes bracket, with plastic housing and seal

1шт.

15

187-330

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - pan head, self-tapping, No. 10 NC x 5/8 inch

2шт.

16

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

2шт.

17

245539C1

CONNECTION

BLOCK - junction

1шт.

18

187-130

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

SCREW - self-tapping, No. 10 NC x 5/8 inch

1шт.

19

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

20

1970034C4

SUPPORT

HOUSING - power distribution center

1шт.

21

187-1310

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

BOLT - hex flange, 1/4 NC x 3/4 inch

3шт.

22

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

23

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 5/64 inch

3шт.

24

1546542C1

RELAY

- canopy power, replaces L115883 relay

1шт.

25

263-1056

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - pan head, self-tapping, No. 10 NC x 1/2 inch

4шт.

26

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

4шт.

27

F22316

RESISTOR,75 Ohms 0.2 Amps DC

- 75 ohm

1шт.

28

26489R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

SCREW - pan head, self tapping, No. 10 NC x 1 inch

1шт.

29

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 1/16 inch

1шт.
