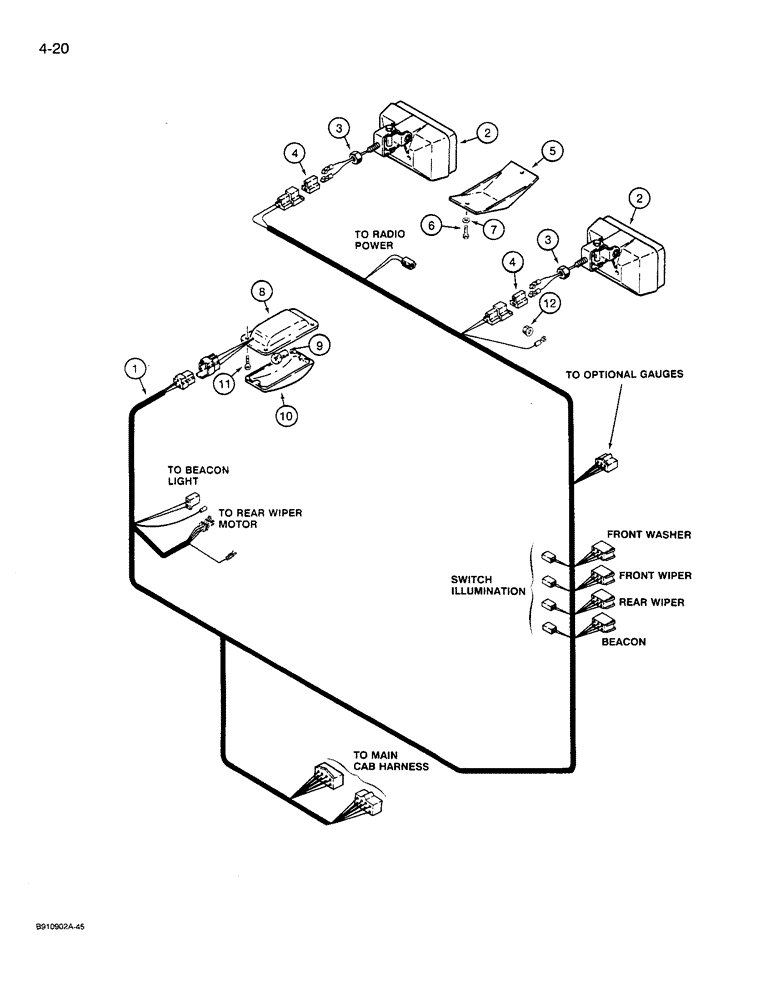

Запчасти Case 621 (4-20) - CAB ROOF HARNESS, P.I.N. JAK0027512 AND AFTER (04) - ELECTRICAL SYSTEMS

1

1546501C1

HARNESS

- roof, cab

1шт.

2

A187541

LIGHT ASSY.,Halogen, 24V, 70W, Clear

LAMP ASSEMBLY - flood, parts list Figure 4-54

2шт.

3

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

2шт.

4

877291R1

ELEC CONNECTOR,Female

CONNECTOR - harness to flood lamp

2шт.

5

1339590C3

COVER

- harness

1шт.

6

281-5658

SCREW,Hex Wshr Hd, #10 x 1/2"

- self-tapping, hex washer head, No. 10 NC x 1/2 inch

2шт.

7

1990502C1

WASHER

- flat, 17/64 x 13/16 x 5/64 inch

2шт.

A186296

LAMP

ASSEMBLY - 24 volt, dome, for service order 245659C91 12 volt lamp assembly and 456602 24 volt bulb

1шт.

245659C91

LAMP

ASSEMBLY - 12 volt, dome, service replacement, use with 24 volt bulb

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

9

456602

BULB,2C2R, #1692, 28V

- 24 volt, dome lamp, No. 1692, type 2C2R, not part of 245659C91 lamp assembly

1шт.

10

245679C1

LENS

- dome light, use with A186296 or 245659C91 lamp assembly

1шт.

11

265-1458

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - self-tapping, oval Phillips, No. 10-16 x 1/2 inch, cab frame

4шт.

12

1999948C1

FLANGE NUT

- hex flange, 5/16 inch, special, mounts ground wire to cab frame

1шт.
