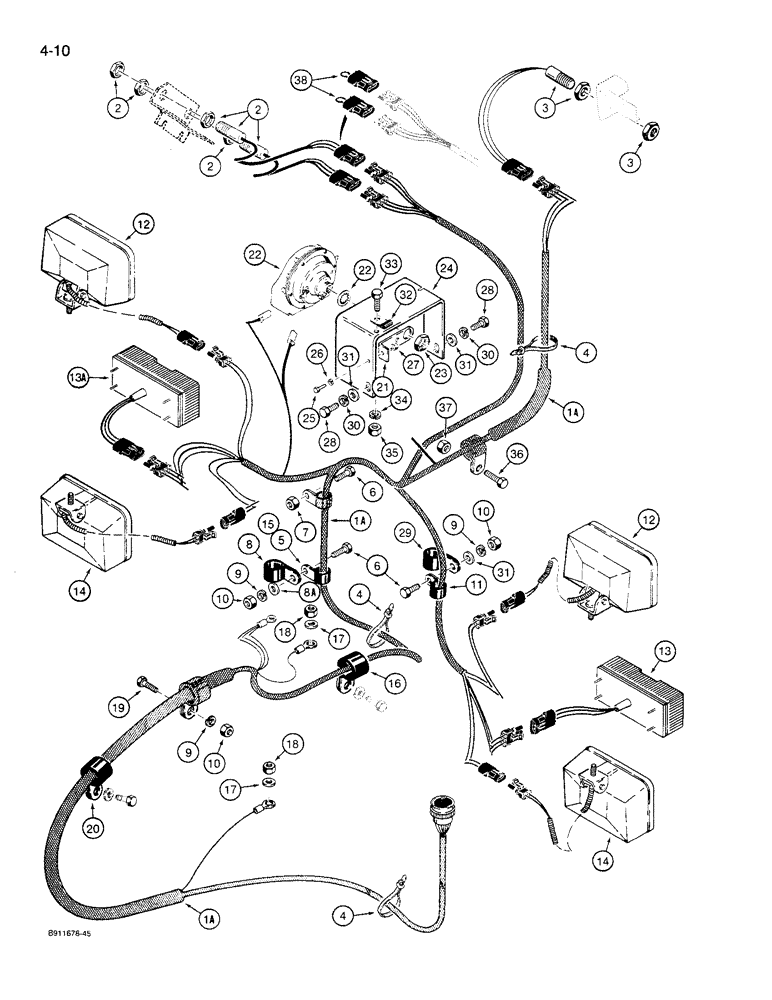

Запчасти Case 621 (4-10) - FRONT HARNESS, LAMPS AND SWITCHES (04) - ELECTRICAL SYSTEMS

1

L126375

HARNESS

- front, not shown, Serial Range: -JAK0027512

1шт.

L126375 harness is identical to L129089 harness except that it has two wires and connectors for auxiliary steering in the area of the rear chassis ground wire and a connector to the cab harness.

1шт.

1a

L129089

HARNESS

- front, Start Serial: JAK0027512

1шт.

2

A186283

IGNITION SWITCH

SWITCH - proximity, height control and return-to-transport, includes hardware

2шт.

3

1546497C1

SWITCH

- proximity, return-to dig, includes hardware

1шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

5

49845

CLAMP

- harness, use on models with return-to-dig

1шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

7

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

1шт.

8

D34033

CLAMP

- tube, left hand

1шт.

8a

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

9

492-11038

LOCK WASHER,3/8"

3шт.

10

425-106

NUT,3/8"-16, Cl 5

3шт.

11

49838

CLAMP

- harness, front lamps

1-2шт.

12

A187519

LIGHT ASSY.,24V, 70W, Clear

LAMP - front, drive, parts list Figure 4-54

2шт.

13

A187992

LIGHT ASSY.,24V, 27W, Amber/Clear

LAMP - turn signal and flasher, right-hand, parts list Figure 4-56

1шт.

13a

A187993

LIGHT ASSY.,24V, 27W, Amber/Clear

LAMP - turn signal and flasher, left-hand, parts list Figure 4-56

1шт.

14

A187520

LIGHT ASSY.,24V, 70W, Clear

LAMP - flood, parts list Figure 4-54

2шт.

15

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- harness, replaces item 5, 49845 clamp, on models with return-to-dig, height control and return-to-transport

1шт.

16

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- P-type, wire, use existing hardware

1шт.

17

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

- flat, special

2шт.

18

L127555

NUT,Hex, 3/8" - 16

- hex, special

2шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

20

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- harness, front, use existing hardware

1шт.

21

L73799

BRACKET

- mounting, horn

1шт.

22

L10353

HORN

- electric, includes internal-tooth washer

1шт.

23

L30866

LOCK NUT

- hex, special

1шт.

24

L126838

COVER

- horn

1шт.

25

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

1шт.

26

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

28

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

29

D34033

CLAMP

- tube, right-hand

1шт.

30

492-11038

LOCK WASHER,3/8"

2шт.

31

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

3шт.

32

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- harness, Serial Range: return-dig

1шт.

33

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

34

492-11038

LOCK WASHER,3/8"

1шт.

35

425-106

NUT,3/8"-16, Cl 5

1шт.

36

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

37

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

1шт.

38

L127785

HARNESS

WIRE - jumper, use when height control and return-to- transport option is not used

2шт.
