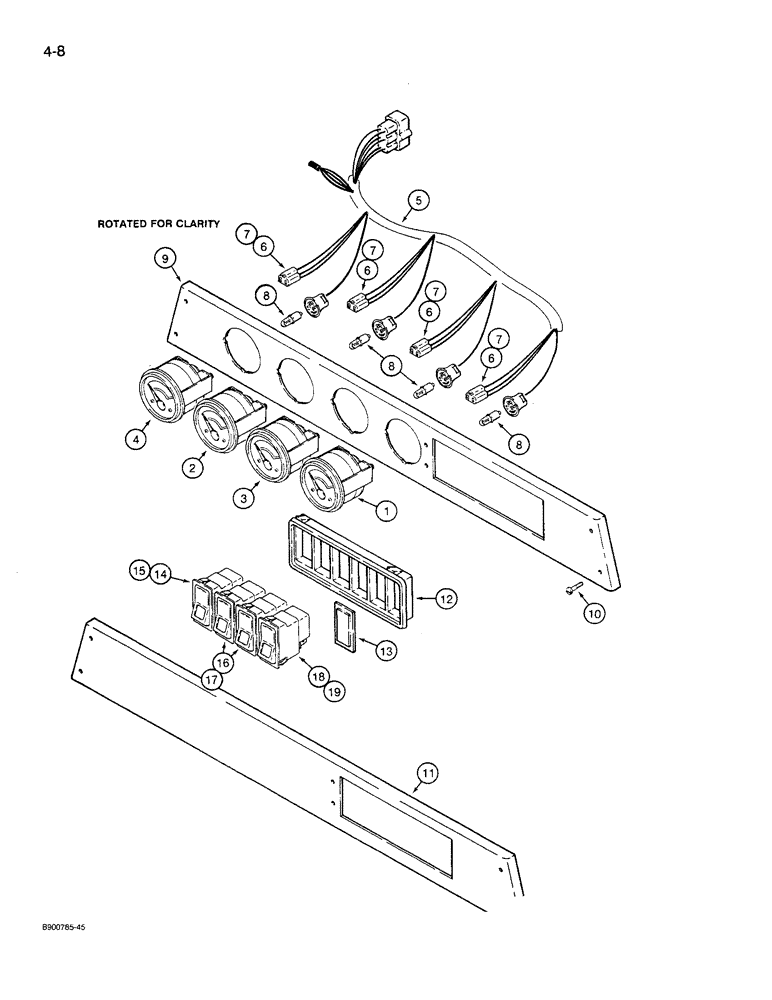

Запчасти Case 621 (4-08) - OPTIONAL GAUGES AND OVERHEAD SWITCHES (04) - ELECTRICAL SYSTEMS

1

L125857

VOLTMETER

GAUGE - voltmeter

1шт.

2

L125853

PRESSURE GAUGE

GAUGE - engine oil pressure

1шт.

3

L125854

GAUGE

- transmission oil temperature

1шт.

4

L125855

PRESSURE GAUGE

GAUGE - air pressure

1шт.

5

A187814

HARNESS

- optional gauge, Includes: Ref. 6 & 7

1шт.

6

L127566

CONNECTION

CONNECTOR - electrical

4шт.

7

L127569

SPADE TERMINAL,Female, 0.75 - 2 mm2

TERMINAL - blade type, not shown

12шт.

8

S116543

BULB

- gauge, No. 456

4шт.

9

1339563C2

PANEL, INSTRUMENTS

PANEL - instrument, overhead, use on units with optional gauges

1шт.

10

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

4шт.

11

1339868C2

PANEL, INSTRUMENTS

PANEL - instrument, overhead, use on units without optional gauges

1шт.

12

A187580

PANEL

- mounting, switch

1шт.

13

245918C1

LENS

PLUG - blanking, rocker switch

1шт.

14

A187622

SWITCH

- rocker, windshield washer, Includes: Ref. 15

1шт.

See Figs. 9-88 & 9-90 for rocker switch decals

1шт.

15

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W

1шт.

16

A187621

SWITCH

- rocker, wiper, front and rear, see Notes 1 and 2, Includes: Ref. 17

2шт.

See Figures 9-88 and 9-90 for environmental control panel and rocker switch decals.

1шт.

One A187621 wiper switch is included in L36339 canopy windsheild and wiper kit shown on Fig. 9-86

1шт.

17

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W

1шт.

18

1913507C1

SWITCH ASSY

SWITCH - rocker, beacon, Includes: Ref. 19

1шт.

See Figures 9-88 and 9-90 for environmental control panel and rocker switch decals.

1шт.

19

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1, 2W

1шт.

20

353-401

PLUG,Dome, .312" hole, Nylon

- nylon, 5/16 inch, used with item 9, 1339563C2, and item 11, 1339868C2, not shown

2-4шт.

THE HOURMETER IS PART OF 1987532C1 CLUSTER REF PG 4-6 1/22/97 DB

1шт.
