(3-16) - FUEL INJECTION NOZZLE, 7 MM TIP, 6T-590 ENGINE, ENGINE SERIAL NUMBER 44511034 AND AFTER

Запчасти Case 621 (3-16) - FUEL INJECTION NOZZLE, 7 MM TIP, 6T-590 ENGINE, ENGINE SERIAL NUMBER 44511034 AND AFTER (03) - FUEL SYSTEM

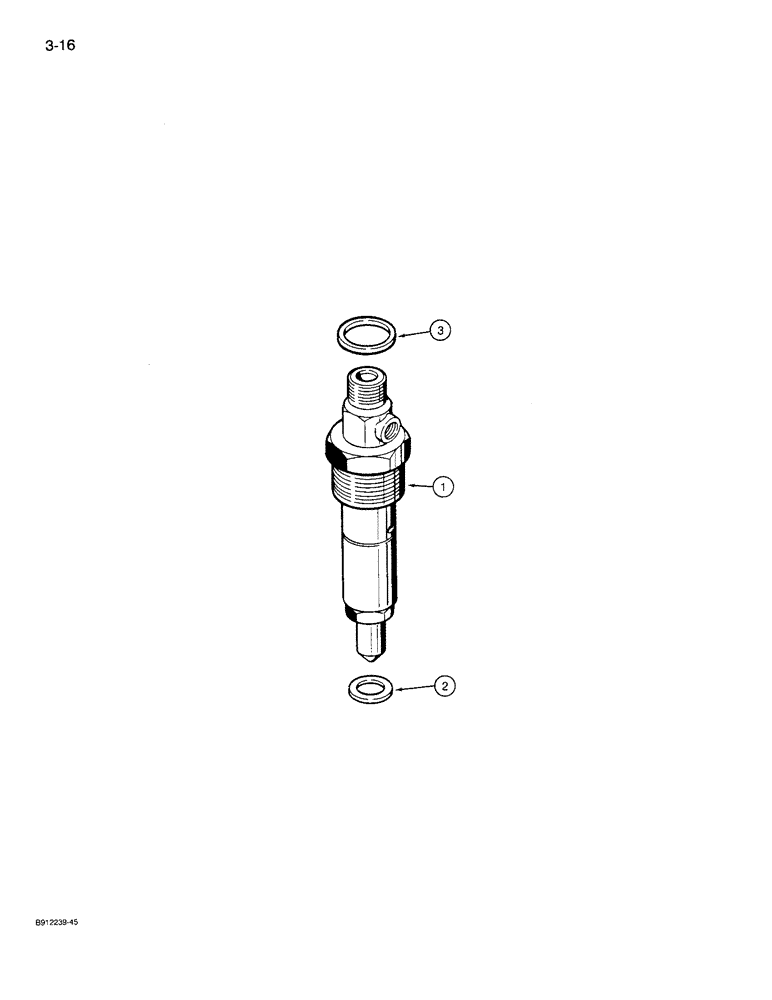

Схема запчастей Case 621 - (3-16) - FUEL INJECTION NOZZLE, 7 MM TIP, 6T-590 ENGINE, ENGINE SERIAL NUMBER 44511034 AND AFTER (03) - FUEL SYSTEM
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J919325

NOZZLE INJECTION

NOZZLE ASSEMBLY - fuel injection, Includes: Ref. 2

6шт.

2

J920174

PACKING RING

SEAL - injector

1шт.

Whenever a nozzle is removed from the cylinder head, J920174 seal must be replaced.

1шт.

3

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

- injector

6шт.

Выбрано товаров: 4
