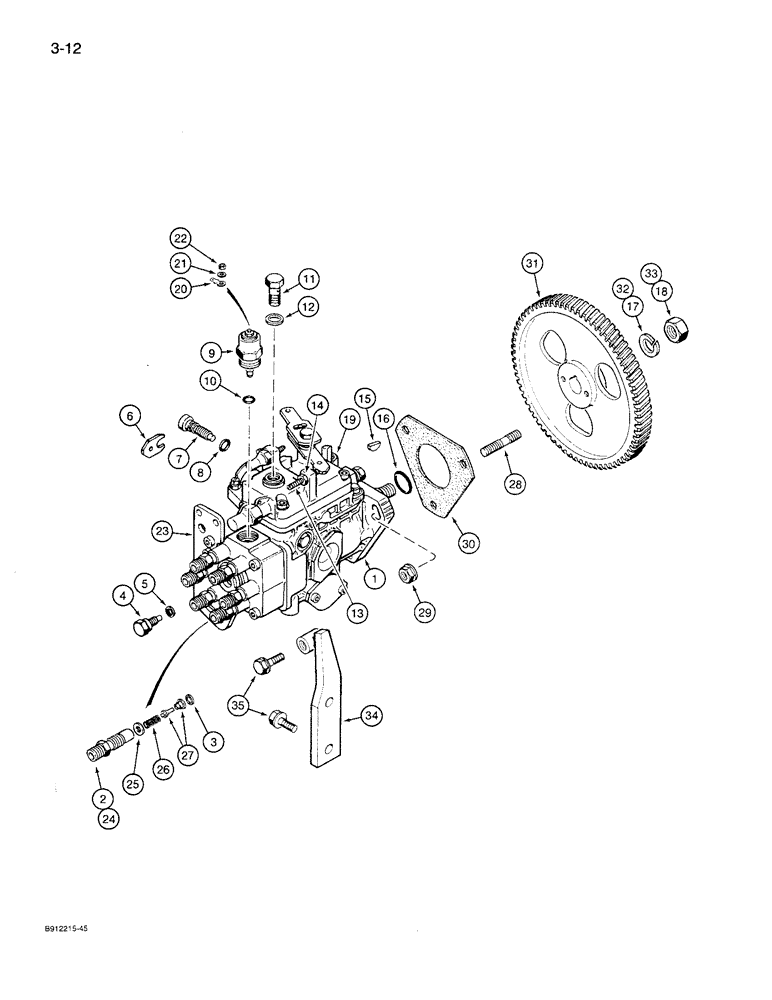

Запчасти Case 621 (3-12) - FUEL INJECTION PUMP AND DRIVE, 6T-590 ENGINE (03) - FUEL SYSTEM

1

J916946

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new, Includes: Ref. 2 - 27

1шт.

1

JR916946

REMAN-INJECTION PUMP

Pump Assembly, fuel injection, remanufactured, component parts shown on this Figure do not apply to the remanufactured assembly

1шт.

1

JC916946

CORE-INJECTION PUMP

Return Part Number

1шт.

1

J912126

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new, no longer available, order JR916946 pump, and J917565 fuel supply tube, not shown, Includes: Ref. 2 - 27

1шт.

JR912126

PUMP

PUMP ASSEMBLY - fuel injection, remanufactured, component parts shown on this Figure do not apply to the remanufactured assembly, no longer available, order JR916946 pump, and J917565 fuel supply tube, not shown

1шт.

JC917503

PUMP, FUEL INJECTION

PUMP, INJECTION RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

2

J903571

ADAPTER

FITTING - delivery valve, J912126 pump only

6шт.

3

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

GASKET - delivery valve

6шт.

4

J903572

BLEED SCREW,M8 x 1 x 23.10mm

SCREW - vent

1шт.

5

3053133R1

SEALING RING,M8 x 11.5 x 1

GASKET - vent screw

1шт.

6

J904786

PLATE

PLATE - timing lock

1шт.

7

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

SCREW - timing lock

1шт.

8

J904785

O-RING,8 mm ID x 2.5 mm

O-RING - timing lock screw

1шт.

9

J903576

SOLENOID

SOLENOID ASSEMBLY - shut down, 24 volt, component parts not serviced separately

1шт.

10

J903577

SEAL

O-RING - solenoid

1шт.

11

J905465

BANJO BOLT

SCREW - overflow

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - overflow screw

1шт.

13

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

SCREW - low idle stop

1шт.

14

J904783

NUT

NUT - idle screw

1шт.

15

J902332

KEY

KEY - pump gear retainer

1шт.

16

J920393

SEAL

SEAL - shaft, J916946 pump only

1шт.

17

92-11056

LOCK WASHER,9/16"

WASHER, LOCK, , J916946 pump only 9/16"

1шт.

18

J903738

NUT

NUT - hex, 14 mm, special, J916946 pump only

1шт.

19

J903382

ADAPTER,M12 x 1.5 x M14 x 1.5

ADAPTER - tube, J916946 pump only

1шт.

20

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

TERMINAL - , D+ adapter, J916946 pump only Male

1шт.

21

J907481

WASHER

WASHER - solenoid wire, J916946 pump only

1шт.

22

J907480

NUT

NUT - solenoid wire, J916946 pump only

1шт.

23

J905697

SUPPORT

BRACKET - pump support, J916946 pump only

1шт.

24

J910794

FITTING

FITTING - delivery valve, J916946 pump only

6шт.

25

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

WASHER - special, used as shim

6шт.

26

J910796

SPRING

SPRING - delivery valve

6шт.

27

J910795

BY-PASS VALVE

VALVE - delivery

6шт.

28

J902501

STUD

STUD - pump mounting, 8 x 48 mm

3шт.

29

J900589

NUT

NUT - hex flange, 8 mm

3шт.

30

J914389

GASKET

GASKET - pump mounting

1шт.

31

J912885

PINION

GEAR - pump drive

1шт.

32

192-24

LOCK WASHER,9/16"

WASHER, LOCK, , Purchase separately with J912126 pump, if used 9/16"

1шт.

33

J903738

NUT

NUT - hex, 14 mm, purchase separately with J912126 pump, if used

1шт.

34

J905313

LEVER

BRACE - fuel pump

1шт.

35

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - hex flange, 8 mm - 1.25 x 20 mm

3шт.
