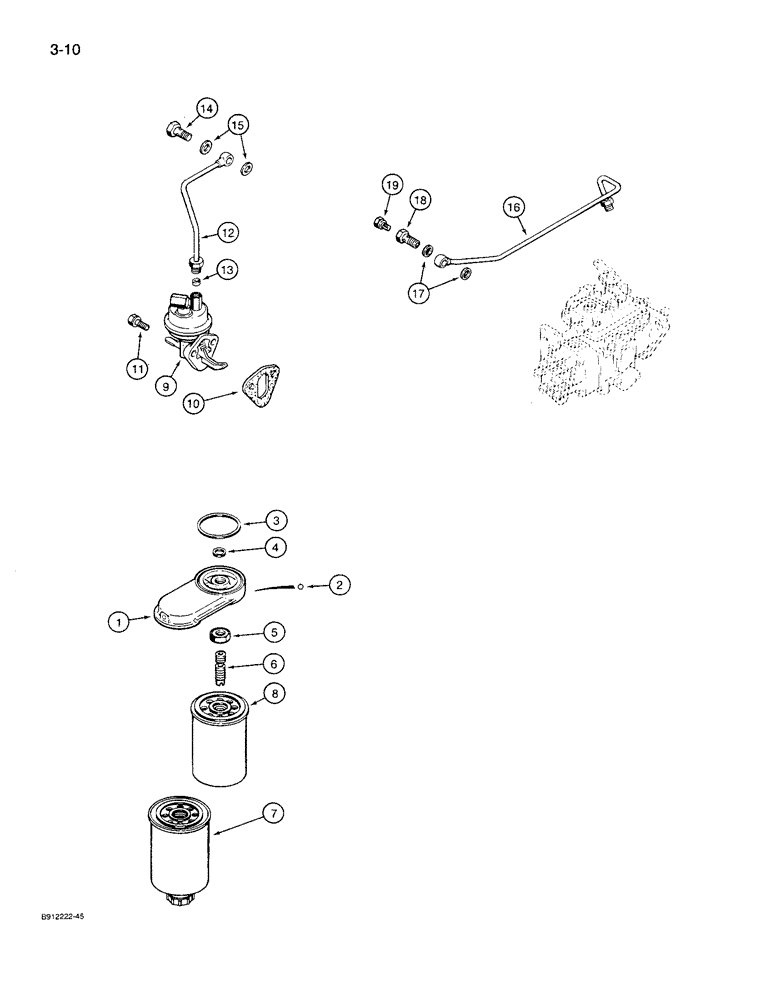

Запчасти Case 621 (3-10) - FUEL FILTER AND LIFT PUMP, 6T-590 ENGINE (03) - FUEL SYSTEM

1

J915240

SUPPORT

HEAD ASSEMBLY - fuel filter, Includes: Ref. 2

1шт.

2

211-101

BALL,1/4" Dia, Stainless

- 1/4 inch, grade 25, stainless steel

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - 70 mm ID, fuel filter head

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - 14 mm ID, fuel filter stud

1шт.

5

J903293

JAM NUT

- hex, 16 x 2 mm

1шт.

6

J903845

BANJO BOLT

ADAPTER - fuel

1шт.

A77470

SEPARATOR

FILTER KIT - fuel, Includes: Ref. 7 & 8

1шт.

7

J903410

FILTER

- fuel, primary

1шт.

8

J903640

FILTER, FUEL

FILTER - fuel, secondary

1шт.

9

J904374

PUMP

ASSEMBLY - lift, fuel

1шт.

10

J914304

GASKET

- fuel lift pump

1шт.

11

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 20 mm

2шт.

12

J907582

FUEL TUBE,8 mm OD x 250.6 mm L

TUBE ASSEMBLY - fuel supply, Includes: Ref. 13

1шт.

13

222-101

SLEEVE,3/16" Tube

- 3/16 inch tube OD

1шт.

14

J903035

BANJO BOLT

BOLT - banjo hex, 12 - 1.5 x 24 mm

1шт.

15

J918191

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm

2шт.

16

J918640

FUEL TUBE

TUBE ASSEMBLY - fuel supply

1шт.

17

J918191

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm

2шт.

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special, Includes: Ref. 18 & 19

1шт.

18

NSS

NOT SOLD SEPARAT

BOLT - connector

1шт.

19

NSS

NOT SOLD SEPARAT

SCREW - hex special, vent

1шт.
