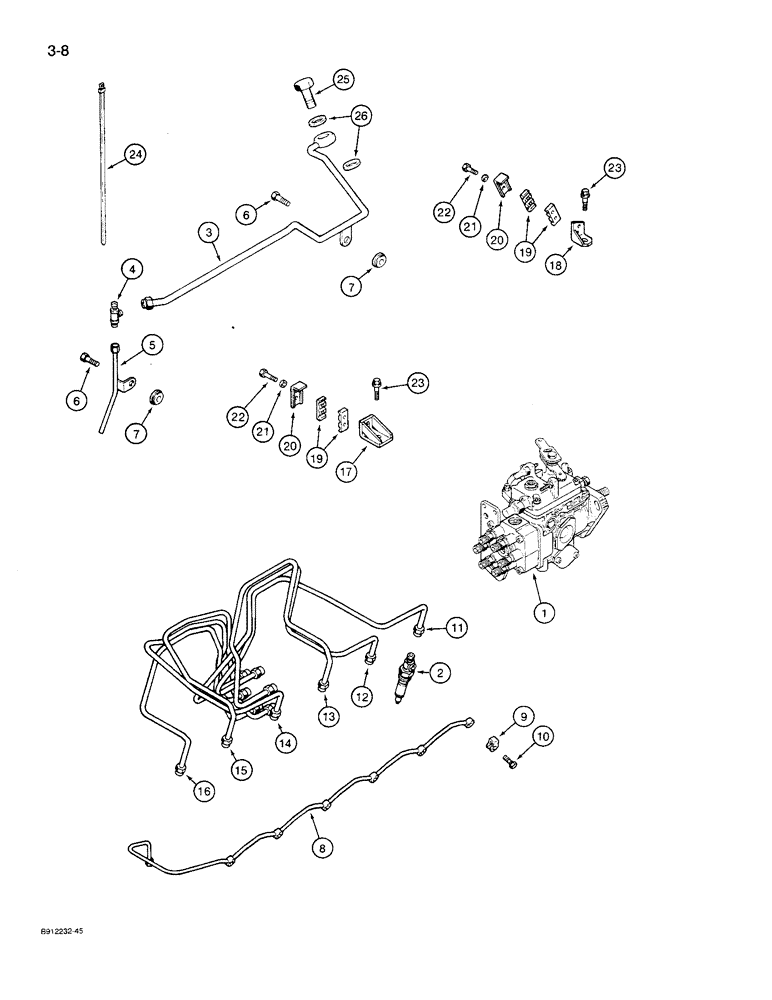

Запчасти Case 621 (3-08) - FUEL INJECTION SYSTEM, 6T-590 ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, see Figure 3-12 for correct assembly and parts list

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, see Figures 3-14 or 3-16 for correct fuel injectors

6шт.

3

J905705

FUEL TUBE,4.76 mm OD

TUBE - fuel drain

1шт.

4

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing (Remove and discard hex nuts and sleeves at assembly)

1шт.

5

J905692

FUEL TUBE

TUBE - fuel return, tee to fuel tank

1шт.

6

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- hex flange, 8 - 1.25 x 16 mm

2шт.

7

J900267

SEAL

- bolt

2шт.

8

J909696

TUBE

TUBE - manifold, fuel drain

1шт.

9

J903380

SEAL

- connector

6шт.

10

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

11

J909438

FUEL TUBE,2 mm ID x 6.4 mm OD x 746 mm L

TUBE - fuel injector, No.1 cylinder

1шт.

12

J903486

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.5 mm L

TUBE - fuel injector, No.2 cylinder

1шт.

13

J903487

FUEL TUBE,2 mm ID x 6.4 mm OD x 741.8 mm L

TUBE - fuel injector, No.3 cylinder

1шт.

14

J903488

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.3 mm L

TUBE - fuel injector, No.4 cylinder

1шт.

15

J903489

FUEL TUBE,2 mm ID x 6.4 mm OD x 748.1 mm L

TUBE - fuel injector, No.5 cylinder

1шт.

16

J903490

FUEL TUBE,2 mm ID x 6.4 mm OD x 745.3 mm L

TUBE - fuel injector, No.6 cylinder

1шт.

17

J917777

BRACE

BRACKET - clamp support

2шт.

18

J917778

BRACE

BRACKET - clamp support

1шт.

19

J917747

CLAMP

- tube isolator

6шт.

20

J904519

SUPPORT

PLATE - clamp

3шт.

21

J903723

WASHER

- flat, special

6шт.

22

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

6шт.

23

J904341

BOLT,M6 x 1 x 35mm, Cl 8.8

- flange hex, special

3шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

25

J905465

BANJO BOLT

SCREW - overflow, included with J916946 pump, see item 11, Figure 3-12

1шт.

26

J918191

PACKING RING

WASHER - sealing

2шт.
