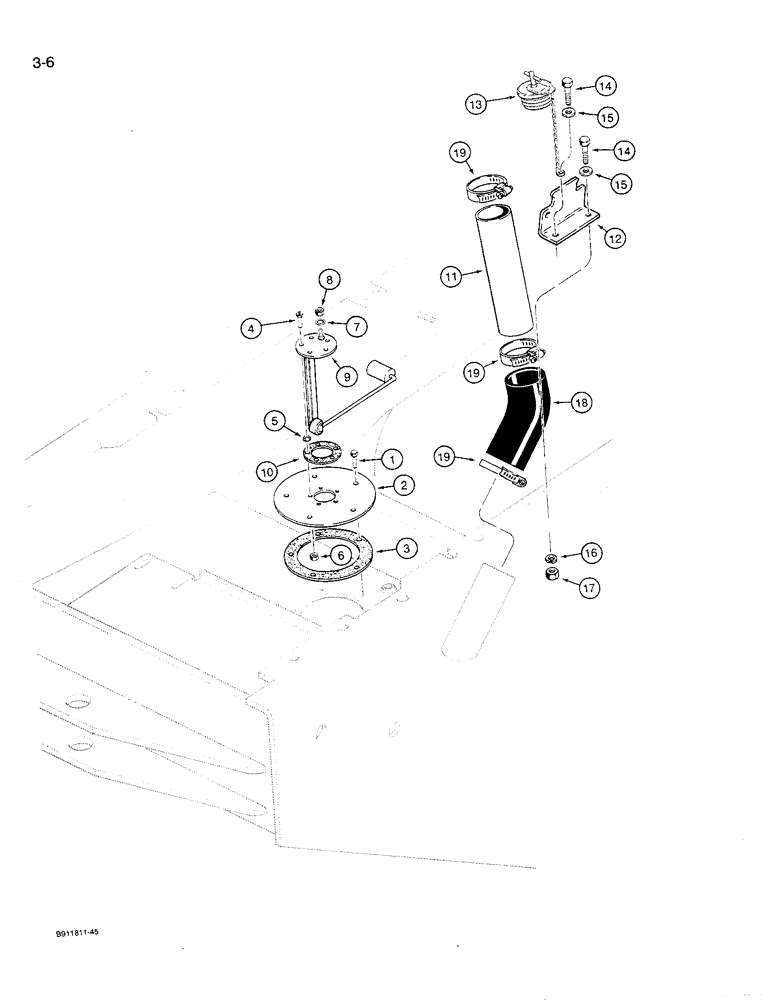

Запчасти Case 621 (3-06) - FUEL TANK FILLER AND SENDER (03) - FUEL SYSTEM

1

L108414

BOLT

- self-sealing, special

5шт.

2

L77441

PLATE

- tank access cover

1шт.

3

L79876

GASKET,4.57mm Thk

- tank access cover

1шт.

4

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

- machine, hex, No. 10 NC x 3/4 inch

5шт.

5

L115306

WASHER

- special, sealing

5шт.

6

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

5шт.

7

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

8

225-10210

NUT,#10-32

1шт.

9

L124069

PROBE

SENDER - fuel tank, Includes: Ref. 10

1шт.

10

A11822

GASKET

- sender

1шт.

11

L128103

PIPE

- filler, fuel

1шт.

12

L128402

SUPPORT

BRACKET - mounting, fuel filler pipe

1шт.

13

L74929

FILLER CAP

CAP, FILLER - fuel tank

1шт.

14

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

15

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

425-106

NUT,3/8"-16, Cl 5

2шт.

18

L127180

FUEL HOSE

HOSE - filler pipe

1шт.

19

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - adj, 3-9/16 - 4-1/2 inch dia, hose

3шт.
