(3-04) - FUEL LINES AND SEDIMENT BOWL

Запчасти Case 621 (3-04) - FUEL LINES AND SEDIMENT BOWL (03) - FUEL SYSTEM

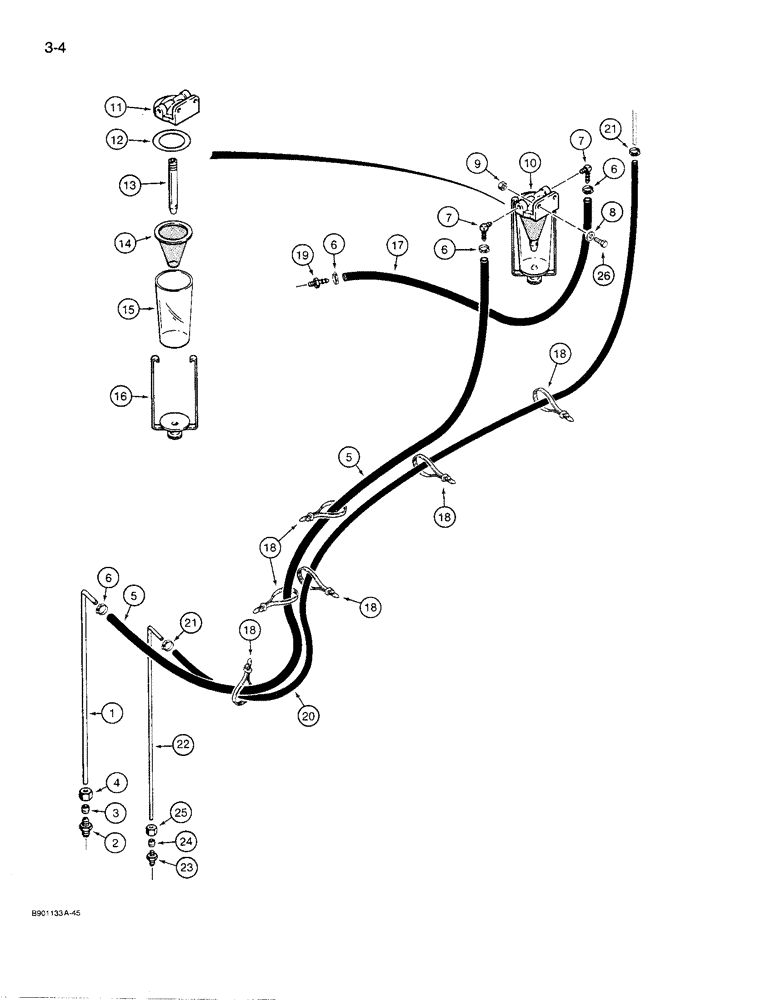

Схема запчастей Case 621 - (3-04) - FUEL LINES AND SEDIMENT BOWL (03) - FUEL SYSTEM
18
15
18
14
24
11
6
6
5
22
23
2
4
16
17
7
21
19
25
3
1
20
5
6
18
6
13
21
18
8
18
9
26
7
10
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

L119109

FUEL TUBE,9.53 mm OD x 478, 46 mm L

TUBE - fuel

1шт.

222-638

FITTING,9/16"-24 x 3/8" NPT, Comp

ADAPTER - compression, 3/8 tube OD x 3/8 inch PT, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

3

222-654

FERRULE,3/8" Tube, Comp

- tapered, 3/8 inch tube OD

1шт.

4

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

NUT - hex, 3/8 tube OD x 9/16-24 inch

1шт.

5

850569C1

HOSE,0.38" ID x 77.00", SAE30R2 Type 1

Tank to Strainer 0.38" ID x 77.00", SAE30R2 Type 1

1шт.

6

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

adj. #4, 0.25/0.62 Type F Worm

4шт.

7

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, 3/8 barb end x 1/4 inch PT

2шт.

8

496-21028

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 5/64 inch

2шт.

9

86625061

NUT,1/4"-20, GB

NUT - light hex, self-locking, 1/4 inch NC

2шт.

10

R18798

STRAINER ELEMENT

BOWL ASSEMBLY - sediment, fuel, Includes: Ref. 11 - 16

1шт.

11

R21356

HOUSING

BODY - sediment bowl

1шт.

12

R21357

GASKET

- sediment bowl

1шт.

13

R21360

TUBE,0.687" DIA x 3.344" L

- sediment bowl

1шт.

14

R21359

FILTER SCREEN

SCREEN - sediment bowl

1шт.

15

R21361

BOWL

- sediment

1шт.

16

R21358

CLAMP

RETAINER - sediment bowl

1шт.

17

178968C2

HOSE,0.38" ID x 12.50", SAE 30R2 TYPE1, CLASS 1

Strainer to Pump 0.38" ID x 12.50", SAE 30R2 TYPE1, CLASS 1

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

19

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

ADAPTER - straight, 3/8 barb end x 1/4 inch PT

1шт.

20

L124347

FUEL HOSE

HOSE - 5 ID x 2000 mm long, fuel return

1шт.

21

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

adj. #4, 0.25/0.62 Type F Worm

2шт.

22

L119110

FUEL TUBE,4.75 mm OD x 478, 46 mm L

TUBE - fuel return

1шт.

L112236

CONNECTOR, ELEC

CONNECTOR - compression, straight, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

24

222-101

SLEEVE,3/16" Tube

- 3/16 inch tube OD

1шт.

25

222-111

TUBE NUT,7/16" - 24

NUT - hex, 3/16 tube OD x 7/16-24 inch

1шт.

26

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
