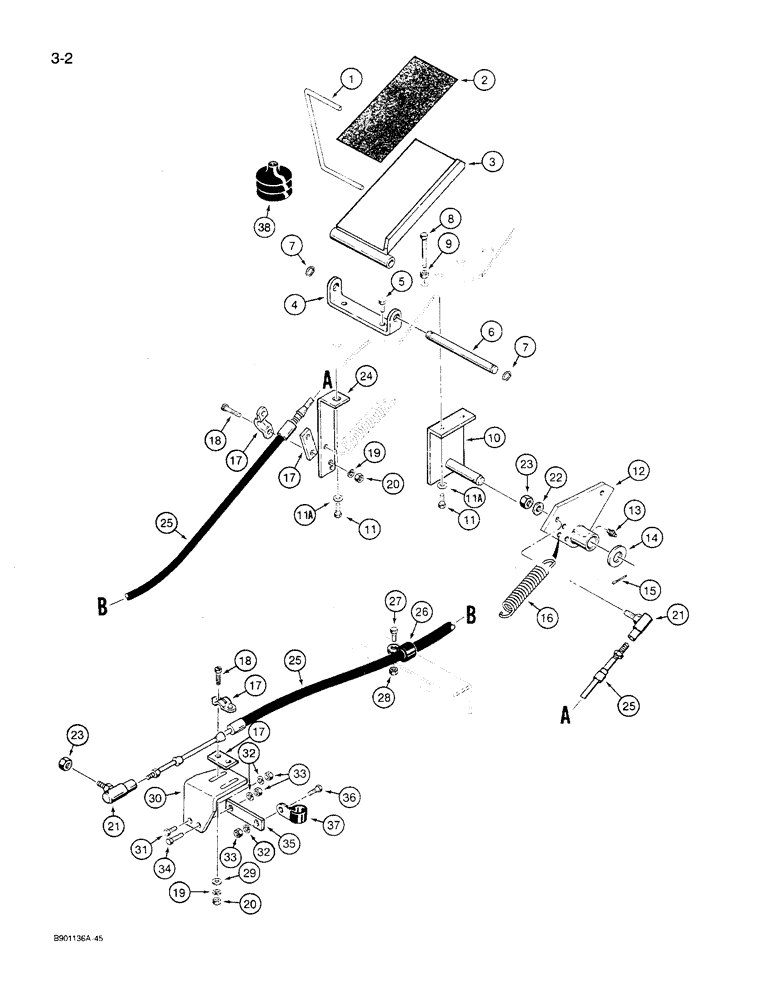

Запчасти Case 621 (3-02) - FOOT THROTTLE CONTROL (03) - FUEL SYSTEM

1

1339978C1

STEM

ROD - accelerator, foot, Serial Range: pedal-bellcrank

1шт.

2

L71193

ANTI-SKID STRIP

- accelerator pedal

1шт.

3

1969946C1

PEDAL

- accelerator, foot

1шт.

4

1969948C1

SUPPORT

MOUNT - accelerator pedal

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

6

1969947C1

ROD

- pivot, pedal

1шт.

7

G46146

SNAP RING,#37, Ext

Ring, Snap, , rod #37, Ext

2шт.

8

113-202

BOLT,Hex, 3/8" - 16 x 4", Gr 5

Hex, 3/8"-16 x 4", G5

1шт.

9

425-106

NUT,3/8"-16, Cl 5

1шт.

10

1969944C2

SUPPORT

BRACKET - accelerator pivot

1шт.

11

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

11a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

12

1339981C2

LEVER ASSY.

LEVER - accelerator bellcrank

1шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

14

95-81116

WASHER,21/32" x 15/16" x .134"

- flat, 21/32 x 15/16 x 1/8 inch

1шт.

15

32-820

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

16

L106237

SPRING

- accelerator return

1шт.

17

L12441

CLAMP

- cable, includes both halves

2шт.

18

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

- machine, hex, No. 10 NC x 3/4 inch

4шт.

19

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

20

225-14110

NUT,#10-24

4шт.

21

A76747

BALL JOINT,#10 -32 x 7/8" L

- ball

2шт.

22

495-31025

WASHER,3/16"

- flat, 1/4 x 9/16 x 1/16 inch

1шт.

23

19694R1

LOCK NUT,1/4"-28, GB

NUT - hex, self-locking, 1/4 inch NF, thin

2шт.

24

L127151

SUPPORT

BRACKET - cable mounting

1шт.

25

L124346

CABLE ASSY.,2180mm L

CABLE - accelerator

1шт.

26

49845

CLAMP

- cable

1шт.

27

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

28

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - light hex, self-locking, 3/8 inch NC

1шт.

29

495-31025

WASHER,3/16"

- flat, 1/4 x 9/16 x 1/16 inch

2шт.

30

L124502

SUPPORT

BRACKET - cable mounting, at engine

1шт.

31

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

32

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

33

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

35

L129728

BAR

- bracket mounting

1шт.

36

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

37

49833

CLAMP

- oil dipstick tube, see Figures 2-34 and 2-38, item 33

1шт.

38

1999521C1

BOOT

- rubber

1шт.

Ref #38 - Deleted, Never used on the 621. 04/22/96

1шт.

34

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.
