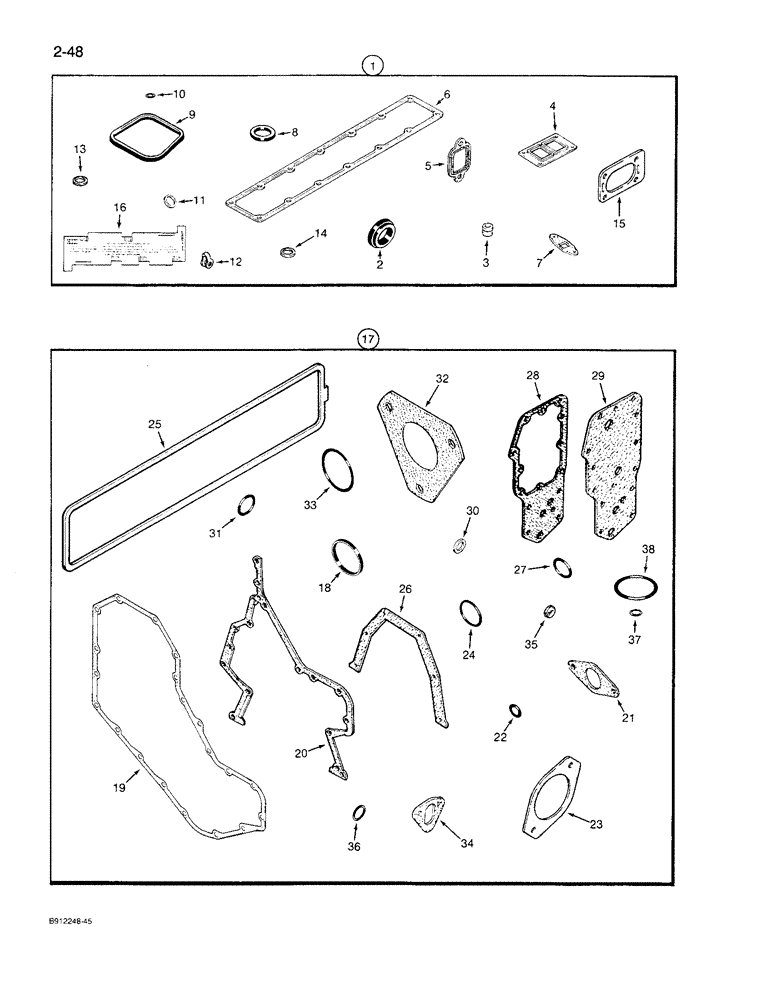

Запчасти Case 621 (2-48) - GASKET KITS, 6T-590 ENGINE, VALVE GRIND (02) - ENGINE

1

A77793

GASKET KIT

- valve grind, Includes: Ref. 2 - 16

1шт.

When just the valve grind kit is used, also order the required cylinder head gasket, item 6 shown on Fig. 2-28

1шт.

2

J920020

GASKET

- thermostat housing, replaces J903301

1шт.

3

J901097

SEAL

- intake and exhaust valve guides

12шт.

4

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

5

J905443

MANIFOLD GASKET

- exhaust manifold

6шт.

6

J914029

GASKET

- intake manifold

1шт.

7

J914388

GASKET

- drain tube

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap

1шт.

9

J902666

GASKET

SEAL - rocker cover

6шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

11

J900808

SEAL

- 9 mm, injector

6шт.

12

J903380

SEAL

- connector

6шт.

13

J920174

PACKING RING

SEAL - 7 mm, injector tip

6шт.

14

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

- 7 mm, injector body

6шт.

15

J914856

GASKET,1.02mm Thk

- air crossover connections

1шт.

16

J823921

GAUGE

- bolt length, cylinder head

1шт.

17

A77674

GASKET KIT

- engine block, cylinder, Includes: Ref. 18 - 38

1шт.

For complete engine overhaul, order one each of valve grind kit, cylinder block kit, oil pan kit shown on Fig. 2-26, front and rear crankshaft seal kit shown on Fig. 2-42 and required cylinder head gasket, item 6 shown on Fig. 2-28.

1шт.

18

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- engine oil fill connector

1шт.

19

J914385

GASKET,1.02mm Thk

- front gear, Serial Range: cover-housing

1шт.

20

J916131

GASKET

- timing gear housing

1шт.

21

J905595

GASKET

- timing pin housing

1шт.

22

J913994

O-RING

- sealing, timing pin

1шт.

23

J919601

GASKET

- cover plate, timing pin access

1шт.

24

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Water pump -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

25

J907617

GASKET

- tappet cover

1шт.

26

J914386

GASKET

- seal retainer, crankshaft

1шт.

27

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, water inlet connection

1шт.

28

J918256

GASKET

- oil cooler

1шт.

29

J918257

GASKET

- filter head

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, plug, oil pan

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - engine oil filler

1шт.

32

J914389

GASKET

- fuel pump

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel housing

1шт.

34

J914304

GASKET

- fuel lift pump

1шт.

35

J900267

SEAL

- cover bolt

6шт.

36

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

37

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - 14 mm ID, fuel filter stud

1шт.

38

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - 70 mm ID, fuel filter head

1шт.
