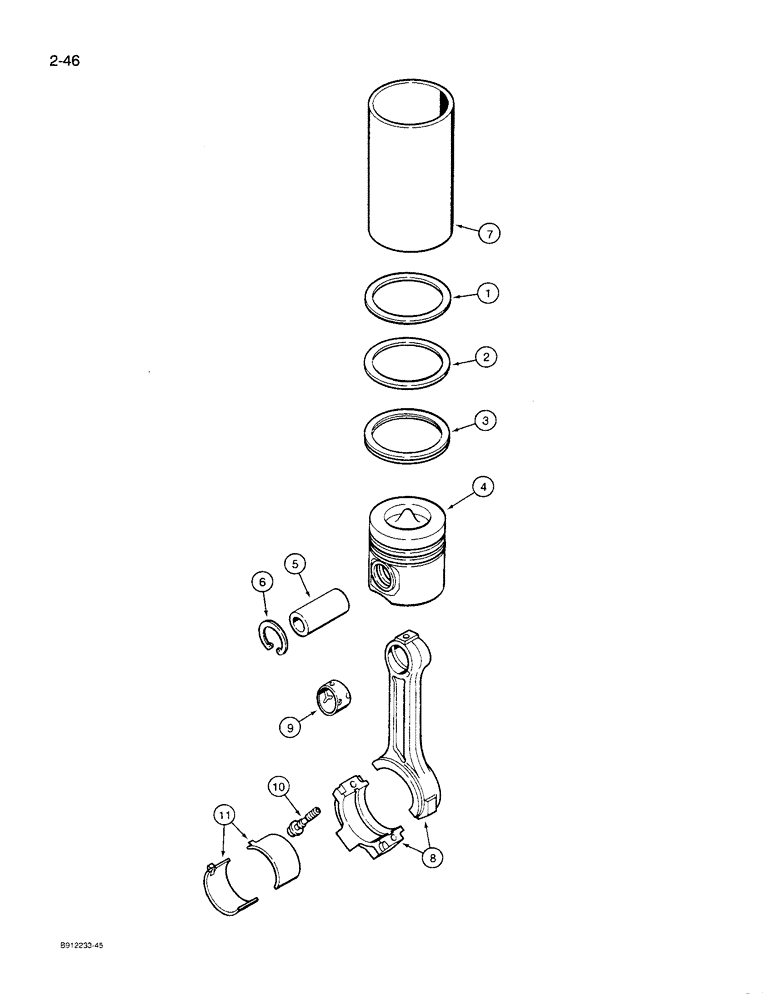

Запчасти Case 621 (2-46[A]) - PISTONS AND CONNECTING RODS, 6T-590 ENGINE, 0.5 MM OVERSIZED PISTON KIT (02) - ENGINE

A77731

PISTON & RINGS KIT

KIT - piston, 0.5 mm oversize, replaces A77638, Includes: Ref. 1 - 6

6шт.

A77728

PISTON RING SET

KIT - ring, 0.5 mm oversize, replaces A77501, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top, 0.5 mm oversize piston kt

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle, 0.5 mm oversize piston kit

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom, 0.5 mm oversize piston kit

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 0.5 mm oversize (Stamped 8815), 0.5 mm oversize piston kit

1шт.

5

J901793

PISTON PIN

PIN - piston, 0.5 mm oversize piston kit

1шт.

6

J901706

RING

- retainer, pin, 0.5 mm oversize piston kit

2шт.

7

J904166

SLEEVE

LINER - piston, used only in engine block repair (When liner is installed, use only A77730 standard piston kit)

1шт.

8

J901569

ROD, CONNECTING

ROD ASSEMBLY - connecting, new, includes both halves, connecting rods, Includes: Ref. 9 & 10

6шт.

8

JR901569

ROD

Assembly - connecting, remanufactured

6шт.

8

JC901569

CORE-ROD CONNECTING

Return Number - use this part number to return connecting rod for credit

6шт.

8

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

8

JC942581

CORE-ROD CONNECTING

Return Number

6шт.

8

84145405R

REMAN-CONNECTING ROD

621 S/N JAK0021701 & AFTER, Reman For New PN J901569

6шт.

8

84145405C

CORE-ROD CONNECTING

Return Number

6шт.

9

J901085

BUSHING

- connecting rod (Replaces NSS)THIS IS NOW A SERVICEABLE PART, connecting rods

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - hex special, 11 mm - 1 x 26 mm, connecting rods

2шт.

11

A77465

BEARING SET

KIT - bearing, upper and lower, standard, set of two, connecting rods

6шт.

11

A77466

BEARING SET

KIT - bearing, upper and lower, 0.25 mm undersize, set of two, connecting rods

6шт.

11

A77467

BEARING LINER

KIT - bearing, upper and lower, 0.50 mm undersize, set of two, connecting rods

6шт.

11

A77468

BEARING SET

KIT - bearing, upper and lower, 0.76 mm undersize, set of two, connecting rods

6шт.

11

A77469

BEARING SET

KIT - bearing, upper and lower, 1.00 mm undersize, set of two, connecting rods

6шт.
