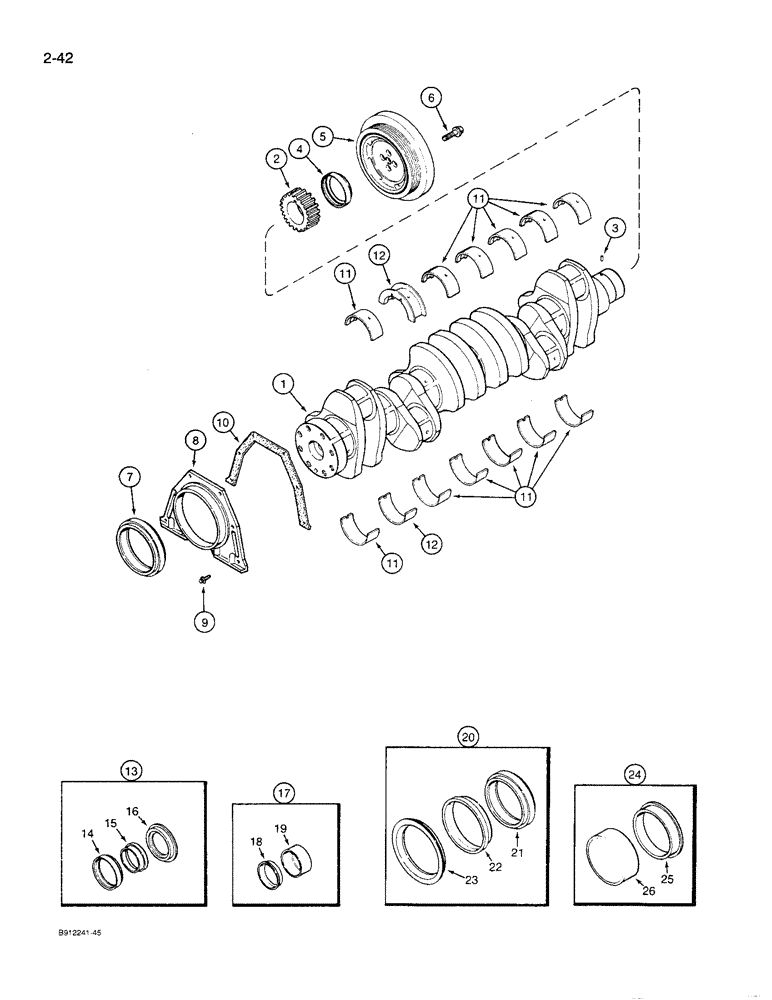

Запчасти Case 621 (2-42) - CRANKSHAFT, 6T-590 ENGINE (02) - ENGINE

JR918324

CRANKCASE

CRANKSHAFT ASSEMBLY - engine, remanufactured (North America only), component parts shown on this Figure do not apply to the remanufactured assembly

1шт.

JC908032

CORE-CRANKSHAFT

RETURN NUMBER - crankshaft assembly, use this part number to return crankshaft for credit when using a remanufactured assembly

1шт.

1

J918324

CRANKSHAFT

ASSEMBLY - engine, new, Includes: Ref. 2 & 3

1шт.

2

J912883

PINION

GEAR - crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, front, order item 13 kit

1шт.

5

J958258

DAMPER

PULLEY - vibration dampener

1шт.

6

J903857

BOLT,Hex, M12 x 1.25 x 36mm

- hex flange, 12 x 36 mm

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL - oil, rear, order item 20 kit

1шт.

8

J913447

SEAL RETAINER

RETAINER - rear seal

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

10

J914386

GASKET

- seal retainer

1шт.

11

A77405

CRANKSHAFT BEARING

BEARING - main, standard, upper and lower set

6шт.

11

A77472

BEARING SET

BEARING - main, 0.25 mm undersize, upper and lower set

6шт.

11

A77474

BEARING SET

BEARING - main, 0.5 mm undersize, upper and lower set

6шт.

11

A77476

BEARING SET

BEARING - main, 0.75 mm undersize, upper and lower set

6шт.

11

A77478

BEARING SET

BEARING - main, 1.0 mm undersize, upper and lower set

6шт.

12

A77406

CRANKSHAFT BEARING

BEARING - main thrust, standard, upper and lower set

1шт.

12

A77473

THRUST BEARING

BEARING - main thrust, 0.25 mm undersize, upper and lower set

1шт.

12

A77475

THRUST BEARING

BEARING - main thrust, 0.5 mm undersize, upper and lower set

1шт.

12

A77477

THRUST BEARING

BEARING - main thrust, 0.75 mm undersize, upper and lower set

1шт.

12

A77479

THRUST BEARING

BEARING - main thrust, 1.0 mm undersize, upper and lower set

1шт.

13

J904353

GASKET KIT

KIT - oil seal, crankshaft front, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

15

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

17

J906080

PACKAGE, REPAIR

KIT - wear sleeve, crankshaft front, Includes: Ref. 18 & 19

1шт.

18

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

19

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

20

J909411

SEAL

KIT - oil seal, crankshaft, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

24

J906081

SLEEVE

KIT - wear sleeve, crankshaft rear, Includes: Ref. 25 & 26

1шт.

25

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

26

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.
