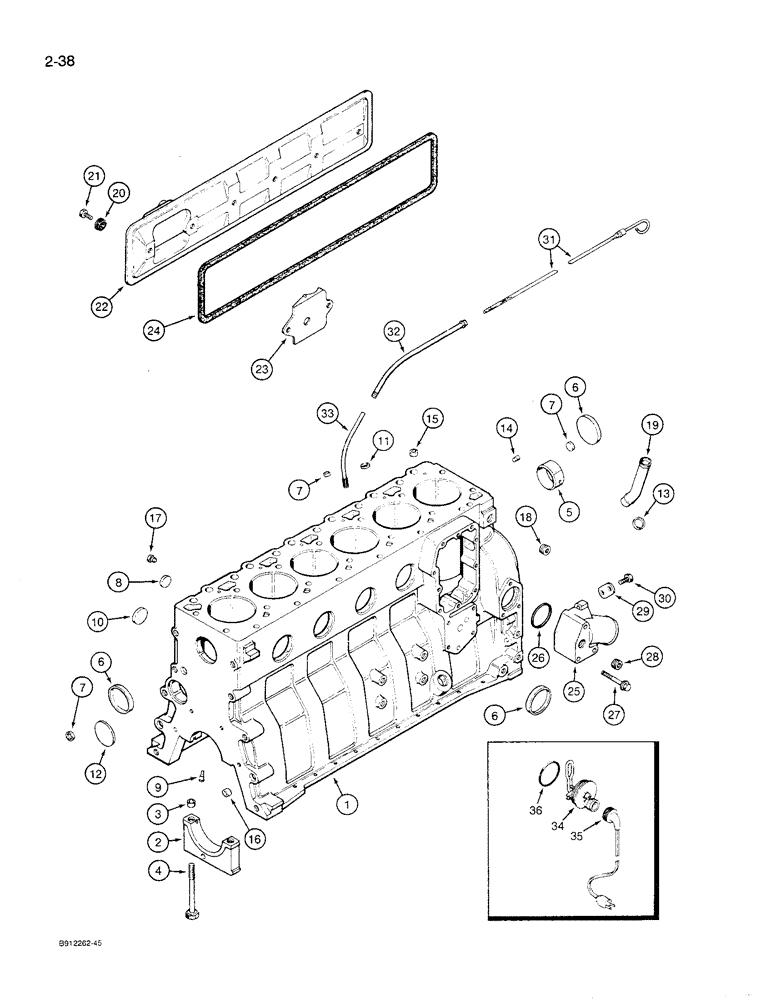

Запчасти Case 621 (2-38) - CYLINDER BLOCK, 6T-590 ENGINE, ENGINE SERIAL NUMBER 44511034 AND AFTER (02) - ENGINE

1989042C3

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - complete, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, for service order basic engine assembly shown below

1шт.

1989042C4R

REMAN-REPLACEMENT EN

Remanufactured, For N.A. Only

1шт.

6T-590C

CORE-REPLACEMENT ENG

Return Number, Complete, For N.A. Only

1шт.

1989096C2

BASIC ENGINE

ENGINE ASSEMBLY - basic

1шт.

Includes all parts except starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold and pipe, flywheel and housing, oil fill tube, dipstick, fuel injection pump, injectors and lines, front crank pulley, belt tensioner and turbocharger

1шт.

AR77762

ENGINE

BLOCK ASSEMBLY - engine short, remanufactured (North America only), component parts shown on this page do not apply to the remanufactured assembly

1шт.

AC77762

CORE-ENGINE

RETURN NUMBER - engine short block, use this part number to return block core for credit when using a remanufactured assembly

1шт.

A77762

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine, new, includes stipped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes: Ref. 2 - 8

1шт.

Order J920399 hardware kit, items 9 - 18, when ordering A77762 or A77760 block assemblies.

1шт.

1

A77760

CRANKCASE

BLOCK ASSEMBLY - stripped engine, Includes: Ref. 2 - 8

1шт.

Order J920399 hardware kit, items 9 - 18, when ordering A77762 or A77760 block assemblies.

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - bearing cap, special

14шт.

5

J901306

BUSHING

BUSHING - camshaft, front

1шт.

6

A77782

PLUG

PLUG - expansion, 58 mm OD

6шт.

7

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

8

A77539

PLUG

PLUG - expansion, 26 mm OD

4шт.

PJ920399

SHIN

KIT - block hardware, Includes: Ref. 9 - 18

1шт.

9

J919002

NOZZLE CAP

NOZZLE - piston cooling

6шт.

10

J900958

PLUG

PLUG - expansion, 32 mm OD

1шт.

11

J900955

PLUG

PLUG - expansion, 10 mm OD

2шт.

12

J900687

PLUG

PLUG - expansion, Welch, 60 mm OD

1шт.

13

A77439

PLUG

PLUG - expansion, 0.886 mm OD

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, locating, 16 mm

2шт.

15

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

16

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

17

J906619

PLUG,1/8" - 27

PLUG - hex socket pipe, 1/8-27 PT

2шт.

18

A77429

PLUG

PLUG - hex socket pipe, 1/2-14 PT

1шт.

19

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

20

J900267

SEAL

SEAL - cover bolt

4шт.

21

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - hex flange, 8 mm - 1.25 x 20 mm

4шт.

22

J911822

COVER

COVER - tappet

1шт.

23

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

24

J907617

GASKET

GASKET - tappet cover

1шт.

25

J903103

MANIFOLD

CONNECTION - water inlet, 6T-590 engine, engine serial number 44511034 and after

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID, 6T-590 engine, engine serial number 44511034 and after

1шт.

27

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

BOLT - heavy hex flange, 10 - 1.50 x 75 mm, 6T-590 engine, engine serial number 44511034 and after

3шт.

28

A77429

PLUG

PLUG - hex socket pipe, 1/2-14 inch PT, 6T-590 engine, engine serial number 44511034 and after

1шт.

29

J910924

PLATE

BRACE - alternator mounting, 6T-590 engine, engine serial number 44511034 and after

1шт.

30

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

BOLT - hex, 8 - 1.25 x 25 mm, 6T-590 engine, Engine S/N 44511034 and after

1шт.

31

J914923

DIPSTICK,678.8mm L

DIPSTICK - oil, 6T-590 engine, engine serial number 44511034 and after

1шт.

32

J918392

TUBE

TUBE - oil dipstick, one piece, 6T-590 engine, engine serial number 44511034 and after

1шт.

33

J905128

TUBE,9.52 mm OD x 153, 75.9 mm L

TUBE - oil dipstick, block, 6T-590 engine, engine serial number 44511034 and after

1шт.

A77634

KIT

KIT - engine block heater, Includes: Ref. 34 - 36

1шт.

34

NSS

NOT SOLD SEPARAT

ELEMENT - heater, block

1шт.

35

J905113

CABLE

CABLE - engine block heater

1шт.

36

J910517

O-RING

O-RING - heater sealing, block

1шт.
