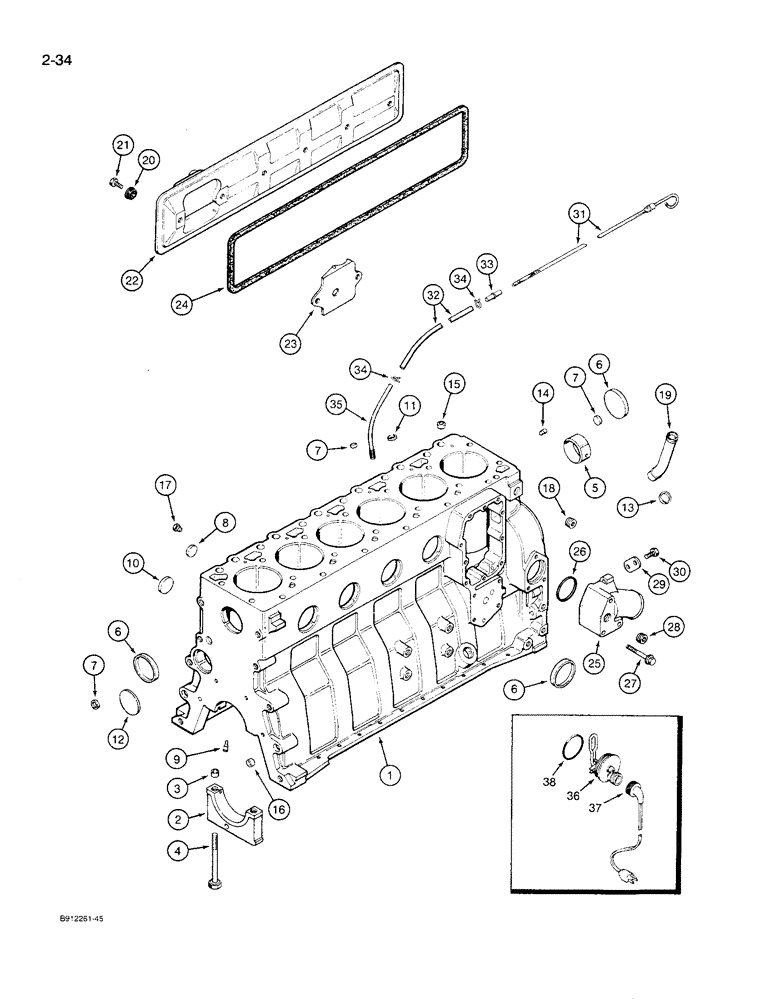

Запчасти Case 621 (2-34) - CYLINDER BLOCK, 6T-590 ENGINE, PRIOR TO ENGINE SERIAL NUMBER 44511034 (02) - ENGINE

A174323

ENGINE ASSEMBLY

- complete, new, includes all parts except: starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe

1шт.

1989042C4R

REMAN-REPLACEMENT EN

Remanufactured, For N.A. Only

1шт.

6T-590C

CORE-REPLACEMENT ENG

Return Number, Complete, For N.A. Only

1шт.

AR174356

ENGINE, EXCHANGE

ENGINE ASSEMBLY - basic, remanufactured (North America only), component parts shown on this page do not apply to the remanufactured assembly

1шт.

AC174356

CORE-ENGINE

RETURN NUMBER - use this part number to return engine assembly core for credit when using a remanufactured assembly

1шт.

A174356

BASIC ENGINE

ENGINE ASSY., basic

1шт.

New, includes all parts except: starter, alternator, fan, fan bracket and belt, air cleaner, muffler, exhaust manifold and pipe, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley, turbocharger and belt tensioner

1шт.

JR910510

ENGINE, EXCHANGE

BLOCK ASSEMBLY - engine short, remanufactured (North America only), component parts shown on this page do not apply to the remanufactured assembly

1шт.

JC910510

CORE-ENGINE

RETURN NUMBER - engine short block, use this part number to return block core for credit when using a remanufactured assembly

1шт.

J910510

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes: Ref. 2 - 8

1шт.

Order J905813 hardware kit, items 9 - 18, when ordering J910510 or J905810 block assemblies.

1шт.

1

J905810

CRANKCASE

BLOCK ASSEMBLY - stripped engine, Includes: Ref. 2 - 8

1шт.

Order J905813 hardware kit, items 9 - 18, when ordering J910510 or J905810 block assemblies.

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

- bearing cap, special

14шт.

5

J901306

BUSHING

- camshaft, front

1шт.

6

J900965

PLUG

- expansion, 58 mm OD

6шт.

7

J900956

PLUG

- expansion, 18 mm OD

3шт.

8

23624R1

PLUG

- expansion, 26 mm OD

4шт.

J905813

PACKAGE, REPAIR

KIT - block hardware, Includes: Ref. 9 - 18

1шт.

9

J901020

NOZZLE CAP

NOZZLE - piston cooling

6шт.

10

J900958

PLUG

- expansion, 32 mm OD

1шт.

11

J900955

PLUG

- expansion, 10 mm OD

2шт.

12

J900687

PLUG

- expansion, Welch, 60 mm OD

1шт.

13

A77439

PLUG

- expansion, 0.886 mm OD

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

- dowel, locating, 16 mm

2шт.

15

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

16

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

17

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 inch PT

2шт.

18

A77429

PLUG

- hex socket pipe, 1/2-14 inch PT

1шт.

19

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

20

J900267

SEAL

- tappet, cover bolt

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- hex flange, 8 - 1.25 x 16 mm

4шт.

22

J911822

COVER

- tappet

1шт.

23

J907586

BAFFLE

- tappet cover

1шт.

24

J907617

GASKET

- tappet cover

1шт.

25

J903103

MANIFOLD

CONNECTION - water inlet, 6T-590 engine prior to engine serial number 44544034

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID, 6T-590 engine prior to engine serial number 44511034

1шт.

27

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

- heavy hex flange, 10 - 1.50 x 75 mm, 6T-590 engine prior to engine serial number 44511034

3шт.

28

A77429

PLUG

- hex socket pipe, 1/2-14 inch PT, 6t-590 engine prior to engine serial number 44511034

1шт.

29

J903089

SUPPORT

BRACE - alternator mounting, 6T-590 engine prior to engine serial number 44511034

1шт.

30

813-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 20 mm, 6T-590 engine prior to engine serial number 44511034

1шт.

31

J914923

DIPSTICK,678.8mm L

- oil, 6T-590 engine prior to engine serial number 44511034

1шт.

32

J910120

TUBE

- oil dipstick, 6T-590 engine prior to engine serial number 44511034

1шт.

33

J905802

FITTING,9.53 mm OD x 39 mm L

END - oil dipstick tube, 6T-590 engine prior to engine serial number 44511034

1шт.

34

214-103

HOSE CLAMP,#8, 1/2", Spring

CLAMP - hose, 6T-590 engine prior to engine serial number 44511034

2шт.

35

J905128

TUBE,9.52 mm OD x 153, 75.9 mm L

- oil dipstick, block, 6T-590 engine prior to engine serial number 44511034

1шт.

A77634

KIT

- engine block heater, Includes: Ref. 36 - 38

1шт.

36

NSS

NOT SOLD SEPARAT

ELEMENT - heater, block

1шт.

37

J905113

CABLE

- engine block heater

1шт.

38

J910517

O-RING

- heater sealing, block

1шт.
