Запчасти Case 621 (2-32) - CAMSHAFT, 6T-590 ENGINE (02) - ENGINE

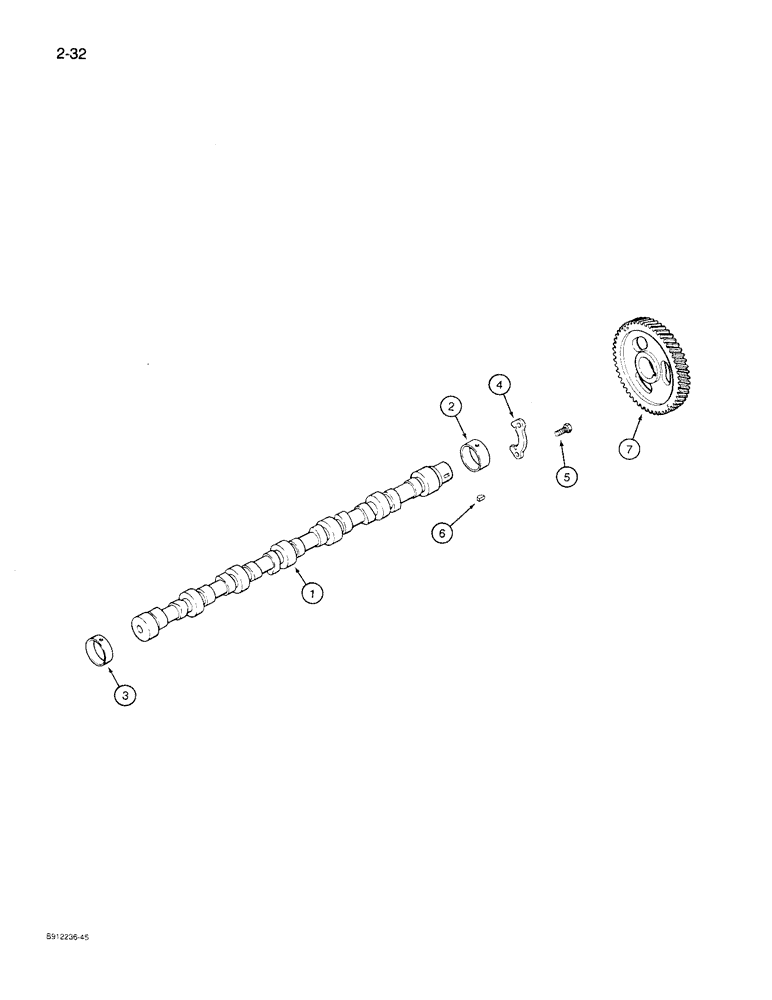

Схема запчастей Case 621 - (2-32) - CAMSHAFT, 6T-590 ENGINE (02) - ENGINE
5
7
2
6
1
3
4

Артикул

Название

Примечание

Количество

1

J914639

CAMSHAFT

- engine

1шт.

J929042R

REMAN-CAMSHAFT

621 S/N JAK0021701 & AFTER, Reman for New P/N J914639

1шт.

J929042C

CORE-CAMSHAFT

Return Number

1шт.

2

J901306

BUSHING

- camshaft, front, standard

1шт.

2

J904369

BUSHING

- camshaft front, oversize, 58 mm OD

1шт.

3

J903242

BUSHING,54.12mm ID x 57.38mm OD x 18mm L

- camshaft, intermediate and rear

6шт.

When the intermediate and rear cylinder block camshaft bores are reamed in engine repair, order item 3, J903242 bushings

1шт.

4

J914641

SUPPORT

- thrust, camshaft

1шт.

5

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

6

J902332

KEY

- camshaft gear

1шт.

7

J907431

CAMSHAFT BEARING

GEAR - camshaft

1шт.

Выбрано товаров: 11
