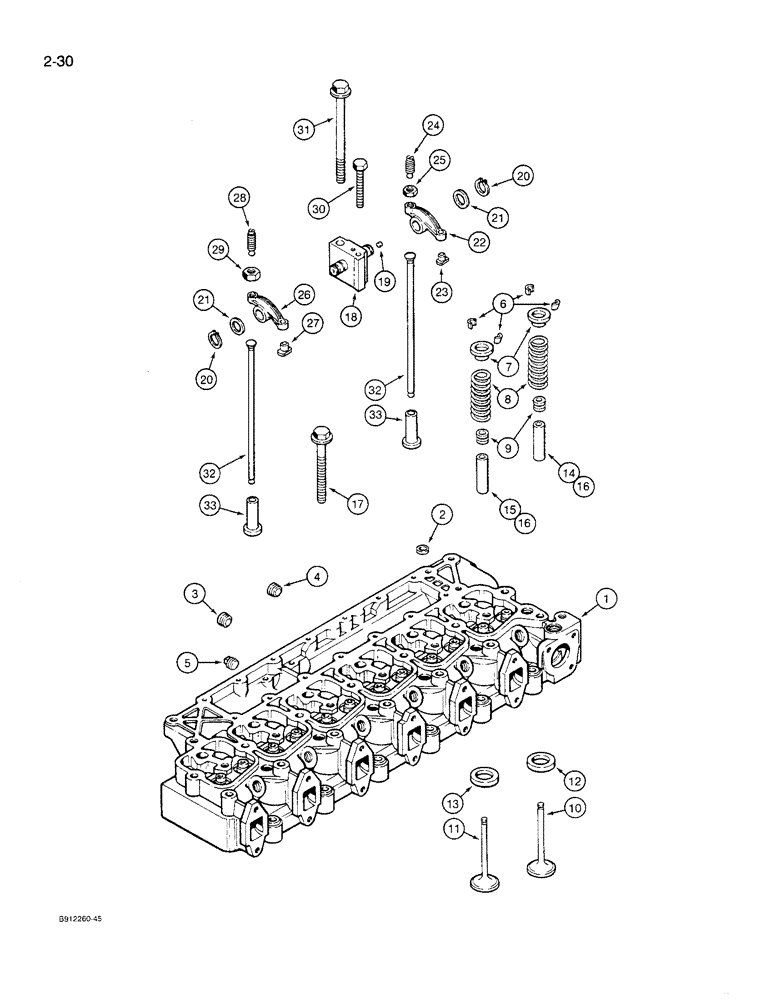

Запчасти Case 621 (2-30) - CYLINDER HEAD AND VALVE MECHANISM, 6T-590 ENGINE (02) - ENGINE

JR910276

HEAD

ASSEMBLY - cylinder, 9 mm injector, remanufactured (North America only), component parts shown on this page do not apply to the remanufactured assembly

1шт.

JC910276

CORE-CYLINDER HEAD

RETURN NUMBER - Use this part number to return cylinder head core for credit when using a remanufactured assembly

1шт.

JR920612

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, 7mm injector, remanufactured (North America only), component parts shown on this page do not apply to the remanufactured assembly

1шт.

JC920612

REMAN-CYLINDER HEAD

RETURN NUMBER - Use this part number to return cylinder head core for credit when using a remanufactured assembly

1шт.

J910276

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, 9 mm injector, new, prior to Engine Serial Number 44511034, Includes: Ref. 1 - 11

1шт.

J920612

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, 7 mm injector, w/valves, Engine Serial Number 44511034 and after, Includes: Ref. 1 - 11

1шт.

1

J913391

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, 9 mm injector, prior to Engine Serial Number 44511034, cylinder head and valve mechanism 6T-590 engine

1шт.

1

J917287

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, 7 mm injector, w/o valves, Engine Serial Number 44511034 and after, cylinder head and valve mechanism 6T-590 engine

1шт.

2

J902606

PLUG

- expansion, 21 mm OD, cylinder head and valve mechanism 6T-590 engine

5шт.

3

A77429

PLUG

- hex socket pipe, 1/2-14 inch PT, cylinder head and valve mechanism 6T-590 engine

5шт.

4

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 inch PT, cylinder head and valve mechanism 6T-590 engine

2шт.

5

A77505

PLUG

- hex socket pipe, 1/2-18 inch PT, cylinder head and valve mechanism 6T-590 engine

2шт.

6

CASJ900250

RETAINER

KEEPER - valve, cylinder head and valve mechanism 6T-590 engine

24шт.

7

J900299

RETAINER

- valve spring, cylinder head and valve mechanism 6T-590 engine

12шт.

8

J900276

VALVE SPRING

SPRING - valve, cylinder head and valve mechanism 6T-590 engine

12шт.

9

J901097

SEAL

- valve, cylinder head and valve mechanism 6T-590 engine

12шт.

10

J920867

VALVE

- intake, replaces J901117, cylinder head and valve mechanism 6T-590 engine

6шт.

11

J920868

VALVE

- exhaust, replaces J901607, cylinder head and valve mechanism 6T-590 engine

6шт.

12

J906854

SEAT, VALVE

SEAT - insert, intake valve, service repair only, cylinder head and valve mechanism 6T-590 engine

6шт.

13

J904105

SEAT, VALVE

SEAT - insert, exhaust valve, service repair only, cylinder head and valve mechanism 6T-590 engine

6шт.

14

J904408

GUIDE

- valve, intake, service repair only, cylidner head and valve mechanism 6T-590 engine

6шт.

15

J904409

GUIDE

- valve, exhaust, service repair only, cylinder head nad valve mechanism 6T-590 engine

6шт.

16

J906206

GUIDE

- valve, intake and exhaust, 11 mm OD, service repair only, cylinder head and valve mechanism 6T-590 engine

12шт.

17

J903938

BOLT

- hex flange, 12 - 1.75 x 70 mm, cylinder head and valve mechanism 6T-590 engine

6шт.

17

J903939

BOLT

- hex flange, 12 - 1.75 x 120 mm, cylinder head and valve mechanism 6T-590 engine

14шт.

18

J910814

SUPPORT

AND SHAFT ASSEMBLY - rocker arm, cylinder head and valve mechanism 6T-590 engine, Includes: Ref. 19

6шт.

19

J907555

PLUG

- rocker arm shaft, 1/4-18 PT, cylinder head and valve mechanism 6T-590 engine

1шт.

20

J900242

SNAP RING

RING - retaining, rocker arm, cylinder head and valve mechanism 6T-590 engine

12шт.

21

J900245

WASHER

- thrust, rocker arm, cylinder head and valve mechanism 6T-590 engine

12шт.

22

J910811

ROCKER

ARM ASSEMBLY - rocker, intake, clinder head and valve mechanism 6T-590 engine, Includes: Ref. 23 - 25

6шт.

23

NSS

NOT SOLD SEPARAT

INSERT - rocker arm, cylinder head and valve mechanism 6T-590 engine

1шт.

24

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted, set adjusting, special, cylinder head and valve mechanism 6T-590 engine

1шт.

25

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8 inch NF, cylinder head and valve mechanism 6T-590 engine

1шт.

26

J910810

ROCKER

ARM ASSEMBLY - rocker, exhaust, cylinder head and valve mechanism 6T-590 engine, Includes: Ref. 27 - 29

6шт.

27

NSS

NOT SOLD SEPARAT

INSERT - rocker arm, cylinder head and valve mechanism 6T-590 engine

1шт.

28

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted, set adjusting, special, cylinder head and valve mechanism 6T-590 engine

1шт.

29

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8 inch NF, cylinder head and valve mechanism 6T-590 engine

1шт.

30

813-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

- hex, 8 - 1.25 x 75 mm, cylinder head and valve mechanism 6T-590 engine

6шт.

31

J903940

BOLT

- hex flange, 12 - 1.75 x 180 mm, cylinder head and valve mechanism 6T-590 engine

6шт.

32

J904679

PUSH ROD

ROD - push, rocker arm, cylinder head and valve mechanism 6T-590 engine

12шт.

33

J907240

TAPPET

- valve, push rod, cylinder head and valve mechanism 6T-590 engine

12шт.

For Ref #10 & Ref #11, J280911 Valve Stem Tip Wear Pads. 04/22/96

1шт.
