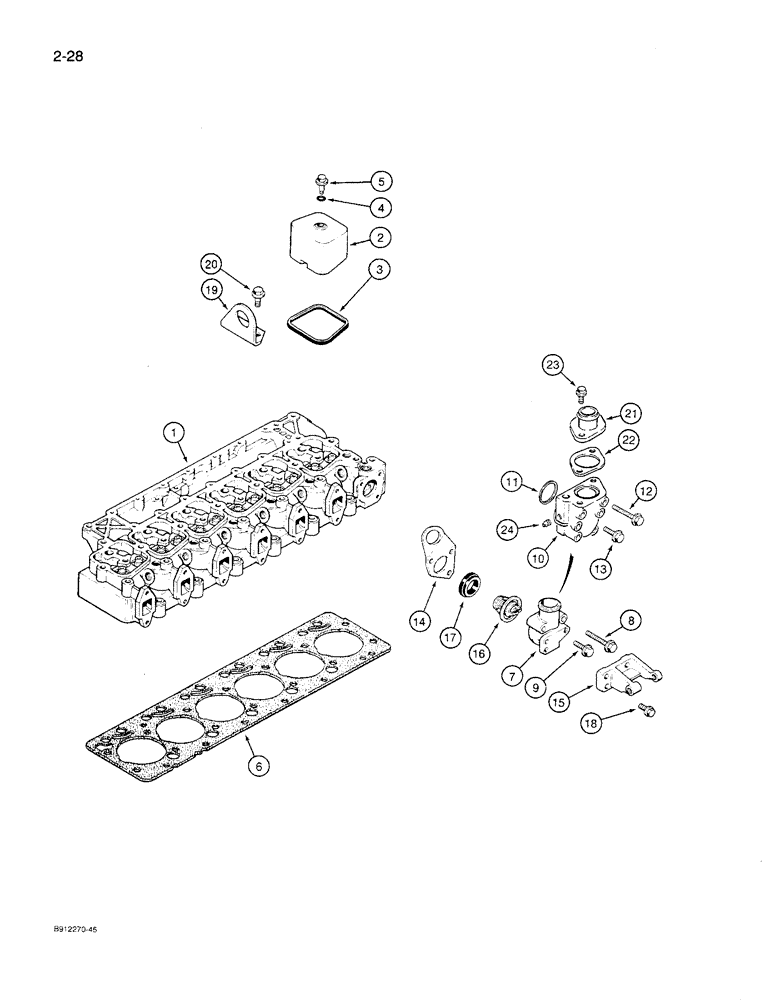

Запчасти Case 621 (2-28) - CYLINDER HEAD COVERS, GASKETS, AND THERMOSTAT, 6T-590 ENGINE, CYLINDER HEAD COVERS AND GASKET (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, see Figure 2-30 for correct cylinder head assembly and component parts, 6T-590 engine cylinder head covers and gasket

1шт.

2

J902604

COVER

- rocker, 6T-590 engine cylinder head covers and gasket

6шт.

3

J902666

GASKET

SEAL - rocker cover, 6T-590 engine cylinder head covers and gasket

6шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt, 6T-590 engine cylinder head covers and gasket

6шт.

5

J907049

BOLT,Hex

- special, 8 - 1.25 x 21.25 mm, 6T-590 engine cylinder head covers and gasket

6шт.

6

J918305

GASKET

- head, standard (1-Notch), replaces J917358, 6T-590 engine cylinder head covers and gasket

1шт.

6

J918306

GASKET

- head, 0.25 mm thicker (2 Notches), replaces J917359, 6T-590 engine cylinder head covers and gasket

1шт.

6

J921398

GASKET

- head, 0.50 mm thicker (3 Notches), replaces J917360 or J918307, 6T-590 engine cylinder head covers and gasket

1шт.

7

J914409

HOUSING

- thermostat, prior to Engine Serial Number 44511034, and housing

1шт.

8

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 70 mm, Use with item 7, J914409 housing, Thermostat

2шт.

9

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm, Use with with item 7, J914409 housing, thermostat

1шт.

10

J914743

HOUSING

- thermostat, Engine Serial Number 44511034 and after, and housing

1шт.

11

J914821

SEAL

- housing, use with item 10, J914743 thermostat housing

1шт.

12

845-8090

BOLT,Hvy Hex, M8 x 90mm, Cl 8.8

Use with item 10, J914743 housing, Thermostat Hex Flg, M8 x 90, 8.8

2шт.

13

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 40 mm, 8.8, Use with item 10, J914743 housing, thermostat

1шт.

14

J903757

BRACKET

- lifting, front, thermostat and housing

1шт.

15

J910923

BRACE

SUPPORT - alternator mounting, thermostat and housing

1шт.

A77736

THERMOSTAT

KIT - water thermostat, and housing

1шт.

16

NSS

NOT SOLD SEPARAT

THERMOSTAT - water, and housing

1шт.

17

J920020

GASKET

- housing, replaces J903301, thermostat

1шт.

18

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, Thermostat and housing

3шт.

19

J908118

BRACKET

- lifting, rear, thermostat and housing

1шт.

20

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Thermostat and housing Hex Flg, M12 x 25, 10.9

2шт.

21

J920123

CONNECTION

- water outlet, Engine Serial 44511034 and after, thermostat and housing

1шт.

22

J912558

GASKET,0.8mm Thk

- connection, use with item 21, J920123 connection, thermostat and housing

1шт.

23

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 20 mm, Thermostat and housing

2шт.

24

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket, 1/2 inch PT, thermostat and housing

1шт.
