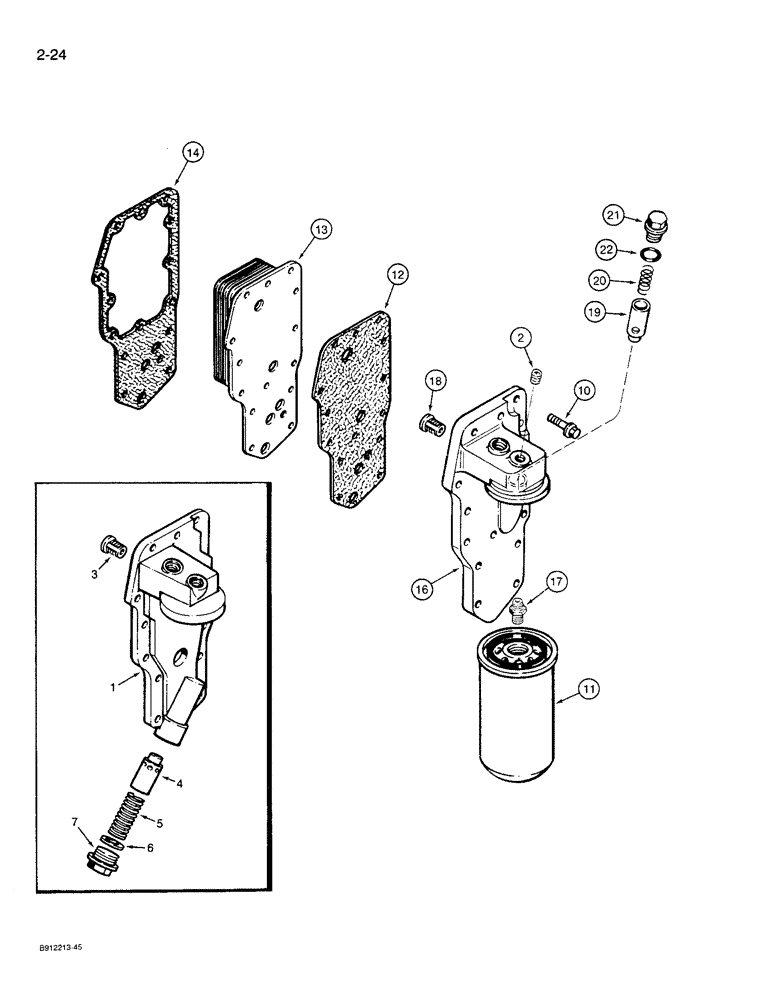

Запчасти Case 621 (2-24) - OIL FILTER AND COOLER, 6T-590 ENGINE (02) - ENGINE

1

J902295

HEAD ASSY.

HEAD - filter, lube oil, Serial Range: -44257900

1шт.

2

J906619

PLUG,1/8" - 27

- hex socket, 1/8 inch PT

1шт.

3

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

4

J909376

PLUNGER

- regulator, pressure, Serial Range: -44257900

1шт.

5

J903261

SPRING

- compression, Serial Range: -44257900

1шт.

6

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, plug, Serial Range: -44257900

1шт.

7

J904386

PLUG

- pipe, special, Serial Range: -44257900

1шт.

10

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- hex, 8 - 1.25 x 35 mm, Replaces J900632

14шт.

11

J908615

FILTER

- engine oil

1шт.

12

J918257

GASKET

- filter head, replaces J912532

1шт.

13

J918293

COOLER

CORE - cooler, oil, Serial Range: -44511034

1шт.

13

J921558

COOLER

CORE - cooler, oil, Start Serial: 44511034

1шт.

14

J918256

GASKET

- cooler core, oil, replaces J914387

1шт.

J915243

FILTER COVER

HEAD ASSEMBLY - lube oil filter, no longer available, order J918954, Includes: Ref. 16, Serial Range: 44257900-44511033

1шт.

16

J909352

FILTER COVER

HEAD - filter and cooler, for service order J918954, Serial Range: 44257900-44511033

1шт.

J918954

HEAD

ASSEMBLY - lube oil filter, Includes: Ref. 16 - 17, Start Serial: 44511034

1шт.

Part of P/N J915766 Cooler Cover Kit

1шт.

16

J918328

HEAD

- filter and cooler, Start Serial: 44511034

1шт.

17

J909355

ADAPTER

- filter head

1шт.

Part of P/N J915766 Cooler Cover Kit

1шт.

18

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

Part of P/N J915766 Cooler Cover Kit

1шт.

19

J914084

VALVE

PLUNGER - regulator, pressure, use with Ref. 20 spring, Serial Range: 44257900-44511033

1шт.

Part of P/N J915766 Cooler Cover Kit

1шт.

A77764

PACKAGE

KIT - oil pressure regulator, Includes: Ref. 19 - 20

1шт.

19

J918428

PLUNGER

- regulator, pressure, Start Serial: 44511034

1шт.

20

J918427

SPRING

- compression

1шт.

21

J915787

PLUG

- pipe, special, Start Serial: 44257900

1шт.

Part of P/N J915766 Cooler Cover Kit

1шт.

22

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- sealing, Start Serial: 44257900

1шт.

Part of P/N J915766 Cooler Cover Kit

1шт.

J915766

KIT

- oil cooler cover, Includes: P/N J918954, Ref. 17, 18, 19 (P/N J914084), 21 and 22

1шт.
