Запчасти Case 621 (2-22) - TURBOCHARGER, 6T-590 ENGINE (02) - ENGINE

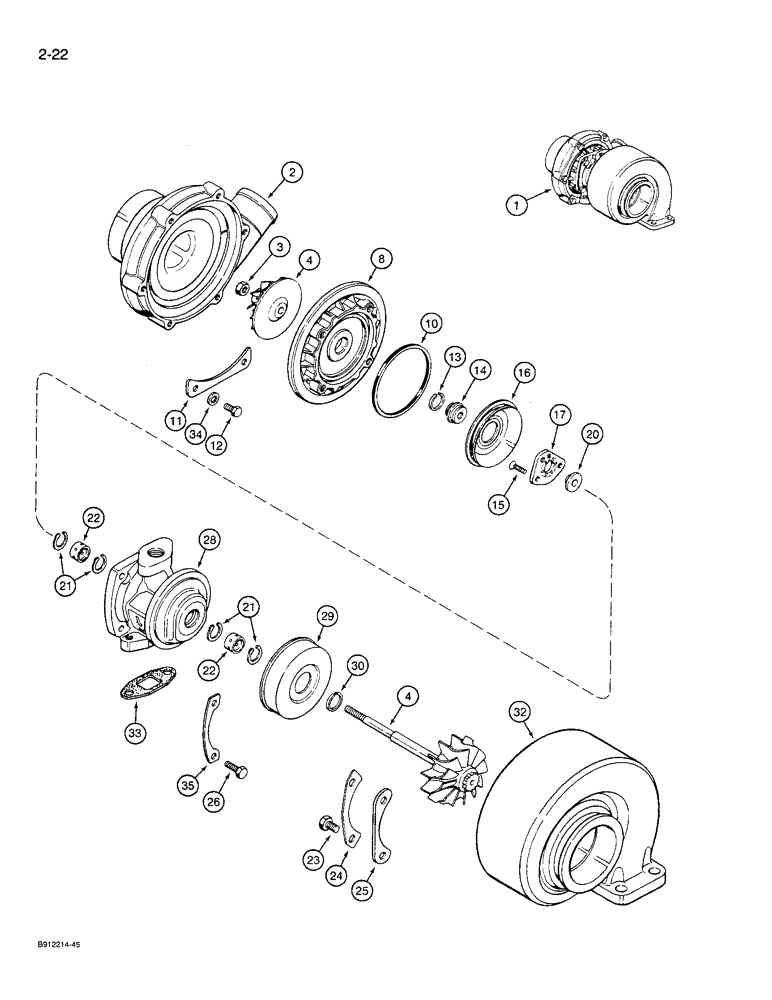

Схема запчастей Case 621 - (2-22) - TURBOCHARGER, 6T-590 ENGINE (02) - ENGINE
23
1
4
11
4
22
21
12
28
15
35
17
22
24
25
30
33
8
26
10
29
34
16
3
32
21
13
14
2
20

Артикул

Название

Примечание

Количество

1

J907028

TURBOCHARGER

TURBOCHARGER ASSEMBLY - engine, new, no longer available, order J919113 and one each of Ref. 9, J916857 and 10, 238-5013, shown on Figure 2-20, Includes: Ref. 2 -35

1шт.

1

JR802289

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

JC528741

CORE-TURBOCHARGER

Return Part Number

1шт.

1

JR907028

REMAN-TURBOCHARGER

Turbocharger Assembly - Remanufactured, component parts shown on this page do not apply to the remanufactured assembly, Includes: Ref. 2 - 35

1шт.

1

JC907028

CORE-TURBOCHARGER

Return Part Number - Use this part number to Return Turbocharger core for credit when using a Remanufactured Assembly

1шт.

1

J919113

TURBOCHARGER

TURBOCHARGER ASSEMBLY - engine, new, Includes: Ref. 2 - 35

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - compressor

1шт.

3

NSS

NOT SOLD SEPARAT

NUT - hex lock

1шт.

Part of P/N J904772 Turbocharger Overhaul Kit

1шт.

4

NSS

NOT SOLD SEPARAT

ROTOR - turbocharger

1шт.

8

NSS

NOT SOLD SEPARAT

DIFFUSER - compressor

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - diffuser

1шт.

Part of P/N J904772 Turbocharger Overhaul Kit

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE - diffuser clamping

3шт.

12

NSS

NOT SOLD SEPARAT

BOLT ASSEMBLY - hex lock, includes washer

6шт.

Part of P/N J904772 Turbocharger Overhaul Kit

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - split ring, compressor

1шт.

Part of P/N J904772 Turbocharger Overhaul Kit

1шт.

14

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW - flat head special

3шт.

Part of P/N J904772 Turbocharger Overhaul Kit

1шт.

16

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

17

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

Part of P/N J904772 Turbocharger Overhaul Kit

1шт.

20

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

21

NSS

NOT SOLD SEPARAT

RING - snap retaining

4шт.

Part of P/N J904772 Turbocharger Overhaul Kit

1шт.

22

NSS

NOT SOLD SEPARAT

BEARING - impeller shaft

2шт.

Part of P/N J904772 Turbocharger Overhaul Kit

1шт.

23

NSS

NOT SOLD SEPARAT

BOLT - plate retaining

4шт.

Part of P/N J904772 Turbocharger Overhaul Kit

1шт.

24

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine housing

2шт.

Part of P/N J904772 Turbocharger Overhaul Kit

1шт.

25

NSS

NOT SOLD SEPARAT

PLATE - clamping, turbine housing

2шт.

26

NSS

NOT SOLD SEPARAT

BOLT ASSEMBLY - hex lock, includes washer

1шт.

Part of P/N J904772 Turbocharger Overhaul Kit

1шт.

28

NSS

NOT SOLD SEPARAT

HOUSING - turbine bearing

1шт.

29

NSS

NOT SOLD SEPARAT

SHIELD - heat, turbine

1шт.

30

NSS

NOT SOLD SEPARAT

SEAL - piston ring, turbine

1шт.

Part of P/N J904772 Turbocharger Overhaul Kit

1шт.

32

NSS

NOT SOLD SEPARAT

HOUSING - turbocharger

1шт.

33

NSS

NOT SOLD SEPARAT

GASKET - oil drain

1шт.

Part of P/N J904772 Turbocharger Overhaul Kit

1шт.

34

NSS

NOT SOLD SEPARAT

WASHER - lock

6шт.

Part of P/N J904772 Turbocharger Overhaul Kit

1шт.

35

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine

2шт.

Part of P/N J904772 Turbocharger Overhaul Kit

1шт.

J904772

PACKAGE, REPAIR

KIT - overhaul, turbocharger, Includes: Ref. 3, 10, 12, 13, 15, 17, 21 - 24, 26, 30 and 33 - 35

1шт.

Выбрано товаров: 48
