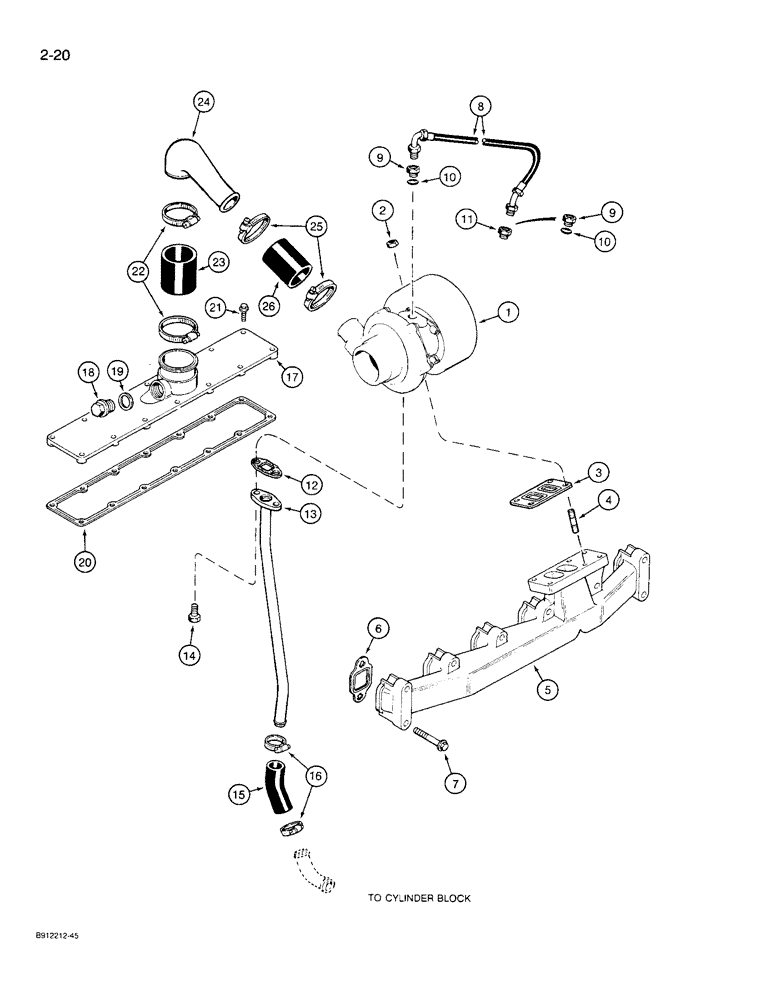

Запчасти Case 621 (2-20) - TURBOCHARGER SYSTEM AND MANIFOLDS, 6T-590 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, see Figure 2-22 for correct assembly and parts list

1шт.

2

J901961

NUT

- hex, special, turbocharger mounting

4шт.

3

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

4

J905417

STUD

- 10 x 40 mm, special, turbocharger mounting

4шт.

5

J901683

MANIFOLD

- exhaust

1шт.

6

J905443

MANIFOLD GASKET

- exhaust manifold

6шт.

7

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- hex flange, 10 - 1.50 x 65 mm, class 10.9

12шт.

8

J909548

HOSE

- oil supply, turbocharger

1шт.

9

J916857

CONNECTOR, ELEC

ADAPTER - female hex, oil supply hose

2шт.

10

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

2шт.

11

A77457

FITTING

ADAPTER - female hex, drain tube to filter base, if used

1шт.

12

J914388

GASKET

- oil drain tube

1шт.

13

J918579

TUBE

- oil drain, replaces J905354

1шт.

14

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, 8 - 1.25 x 20 mm

2шт.

15

J903745

LARGE HOSE

HOSE - turbocharger oil drain

1шт.

16

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

2шт.

A77418

KIT

- manifold cover, intake, Includes: Ref. 17 - 18

1шт.

17

NSS

NOT SOLD SEPARAT

COVER - manifold

1шт.

18

J907185

PLUG

- manifold

1шт.

19

J906773

WASHER

- special, plug sealing

1шт.

20

J914029

GASKET

- intake cover

1шт.

21

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Intake manifold Hex Flg Hd, M8 x 1.25 x 25

16шт.

22

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adj, 2-1/16 - 3 inch dia

2шт.

23

J916529

TRANSMISSION SLEEVE

HOSE - crossover tube

1шт.

24

J906973

AIR INTAKE TUBE,42 - 54.7 mm ID x 50.8 - 63.5 mm OD

TUBE - air intake

1шт.

25

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

adj. #28, 1.31/2.25 Type F Worm

2шт.

26

J916166

INTAKE AIR HOSE

HOSE - air intake

1шт.
