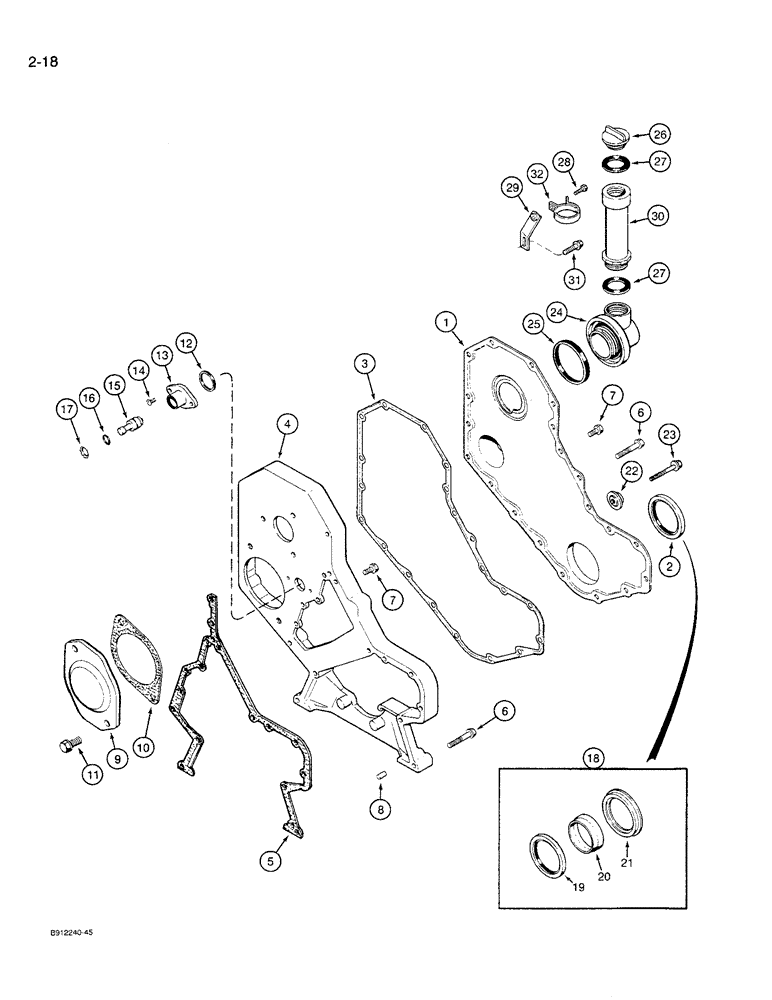

Запчасти Case 621 (2-18) - FRONT GEAR COVER, 6T-590 ENGINE (02) - ENGINE

1

J903794

COVER

- gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, order item 18, J904353 seal kit shown below

1шт.

3

J914385

GASKET,1.02mm Thk

- front cover

1шт.

4

J920518

HOUSING

- timing gear, replaces J917759

1шт.

5

J916131

GASKET

- gear housing

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- hex, 8 - 1.25 x 50 mm

10шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- hex flange, 8 - 1.25 x 16 mm

16шт.

Ref. Item #7 845-8016- the proper bolt to use is J924962 (or J900629 bolt with Loctite) by TSG bb 3/24/98

1шт.

8

J900257

PIN,10.01mm OD x 16mm L

- dowel, locating, 16 mm

2шт.

9

J914868

COVER

PLATE - cover, access, timing pin

1шт.

10

J919601

GASKET

- cover plate, replaces J913192

1шт.

11

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

12

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - pin housing

1шт.

13

J905933

HOUSING

- timing pin

1шт.

14

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

15

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

16

J913994

O-RING

- sealing

1шт.

17

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

18

J904353

GASKET KIT

KIT - seal, crankshaft front, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front

1шт.

20

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

22

J912772

RETAINER

- belt

1шт.

23

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

- hex flange, 8 - 1.25 x 60 mm

1шт.

24

J911679

HOUSING

CONNECTOR - engine oil fill

1шт.

25

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- connector

1шт.

26

J901895

CAP

- oil filler

1шт.

27

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap

2шт.

28

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, 10 - 1.50 x 25 mm

1шт.

29

J914497

SUPPORT

BRACE - tube

1шт.

30

J914738

TUBE,32 mm ID x 38 mm OD x 138 mm L

- oil filler

1шт.

31

845-6010

BOLT,Hvy Hex, M6 x 10mm, Cl 8.8

Retaining, Brace to head Hex Flg, M6 x 10, 8.8, Full Thd

1шт.

32

J914940

CLAMP

- tube

1шт.
