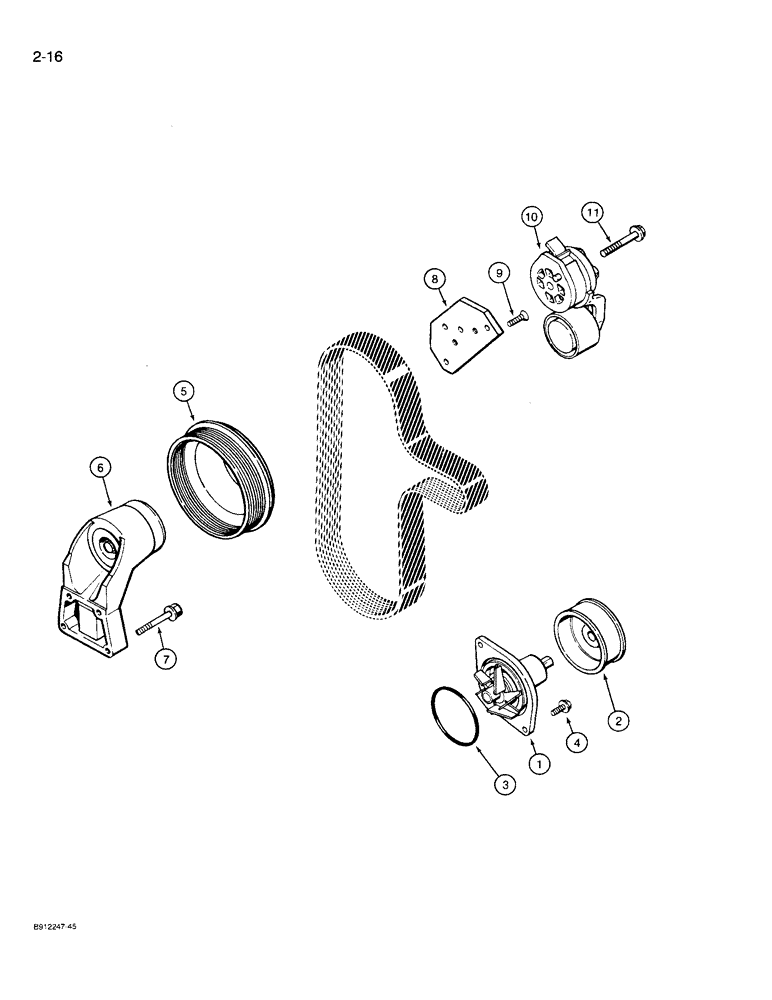

Запчасти Case 621 (2-16) - WATER PUMP SYSTEM, 6T-590 ENGINE (02) - ENGINE

AR77703

PUMP

- water, remanufactured, component parts shown on this page do not apply to the remanufactured assembly

1шт.

J286278R

REMAN-WATER PUMP

621 S/N JAK0021701 & Aft.

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

AC77703

CORE-WATER PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

A77703

PUMP, WATER

KIT - water pump, replaces A77471, Includes: Ref. 1 - 3

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

621 S/N JAK0021701 & Aft.

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - water pump

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J914462

PULLEY,163mm OD

- fan

1шт.

6

J911922

SUPPORT ASSY.

BRACKET - fan pulley

1шт.

7

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

- hex flange, 8 - 1.25 x 40 mm, 8.8

4шт.

8

J904553

SUPPORT

BRACKET - belt tension, replaces J904548

1шт.

9

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Flat head cap Torx Soc, M8 x 1.25 x 25

2шт.

10

J918944

BELT TENSIONER

TENSIONER - belt (Replaces J914086)

1шт.

11

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

- hex flange, 10 - 1.5 x 70 mm, Grade 10.9 (Replaces 854-10070)

1шт.
