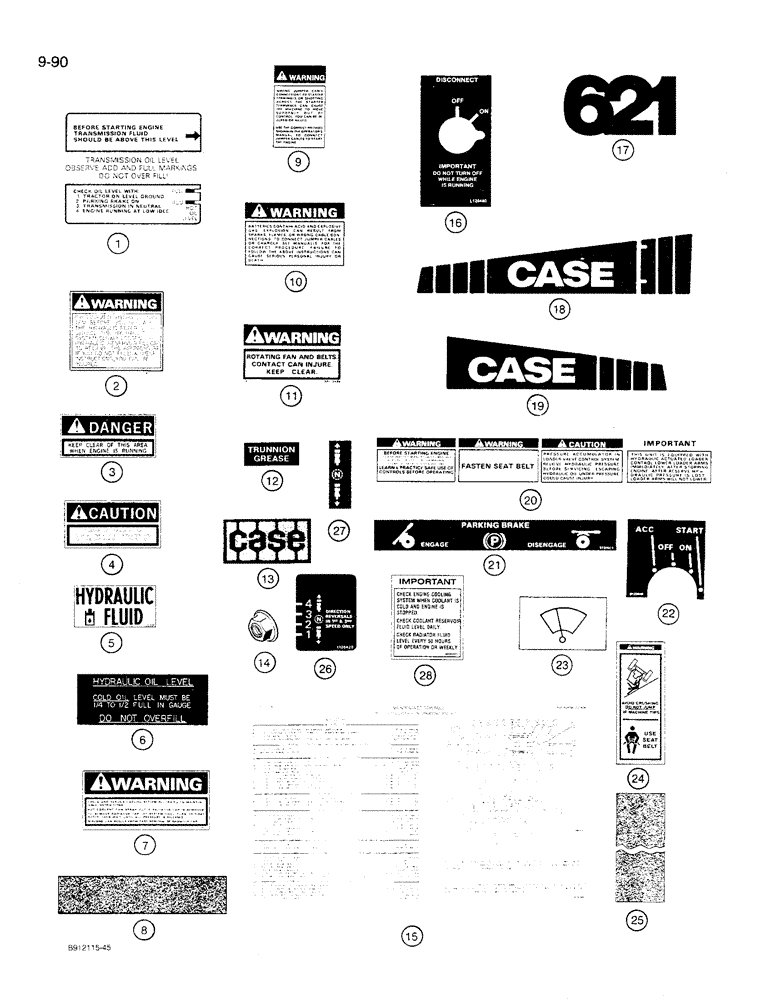

Запчасти Case 621 (9-90) - DECALS (09) - CHASSIS/ATTACHMENTS

L36344

KIT

- decal, includes instructions

1шт.

1

L125910

DECAL

- transmission oil level

1шт.

2

321-6666

DECAL

- Warning, pressurized hydraulic system

2шт.

3

321-3205

DECAL

- Danger, keep clear of this area when engine is running

1шт.

4

321-3206

DECAL

- Caution, transport/service link

1шт.

5

321-6376

DECAL

- Hydraulic Fluid

1шт.

6

L117520

DECAL

- hydraulic oil level

1шт.

7

321-6672

DECAL

- Warning, check and service cooling system

1шт.

8

D55216

PAD,2" x 9"

PAD - non-skid

8шт.

9

321-6718

DECAL

- Warning, wrong jumper cable connections to starter terminals

1шт.

10

321-6714

DECAL

- Warning, batteries contain acid and explosive gas

1шт.

11

321-3596

DECAL

- Warning, rotating fan and belts

2шт.

12

L116271

DECAL

- trunnion grease

1шт.

13

321-4739

EMBLEM

- Case, on grille

1шт.

14

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - self-threading, 1/4 inch

2шт.

15

L127424

BOARD

DECAL - maintenance schedule

1шт.

16

L126480

DECAL

- battery disconnect

1шт.

17

L126030

DECAL

- 621, on loader arms

2шт.

18

L126028

DECAL

- Case, right-hand, hood

1шт.

19

L126031

DECAL

- Case, left-hand, hood

1шт.

20

321-6965

DECAL

- combination

1шт.

21

97376C1

DECAL

- parking brake

1шт.

22

D123946

DECAL

- ignition switch pattern

1шт.

23

3231781R1

IDEOGRAM

DECAL - front wiper switch

1шт.

24

321-7030

WARNING DECAL

DECAL, WARNING, Do Not Jump

1шт.

25

S243101

WEAR PAD

PAD - non-skid, counterweights

1шт.

26

L126428

DECAL

- direction, speed, Serial Range: -JAK0027512

1шт.

27

1987168C1

DECAL

- direction, speed, Start Serial: JAK0027512

1шт.

28

104004A1

DECAL

- Important, check engine cooling system

1шт.
