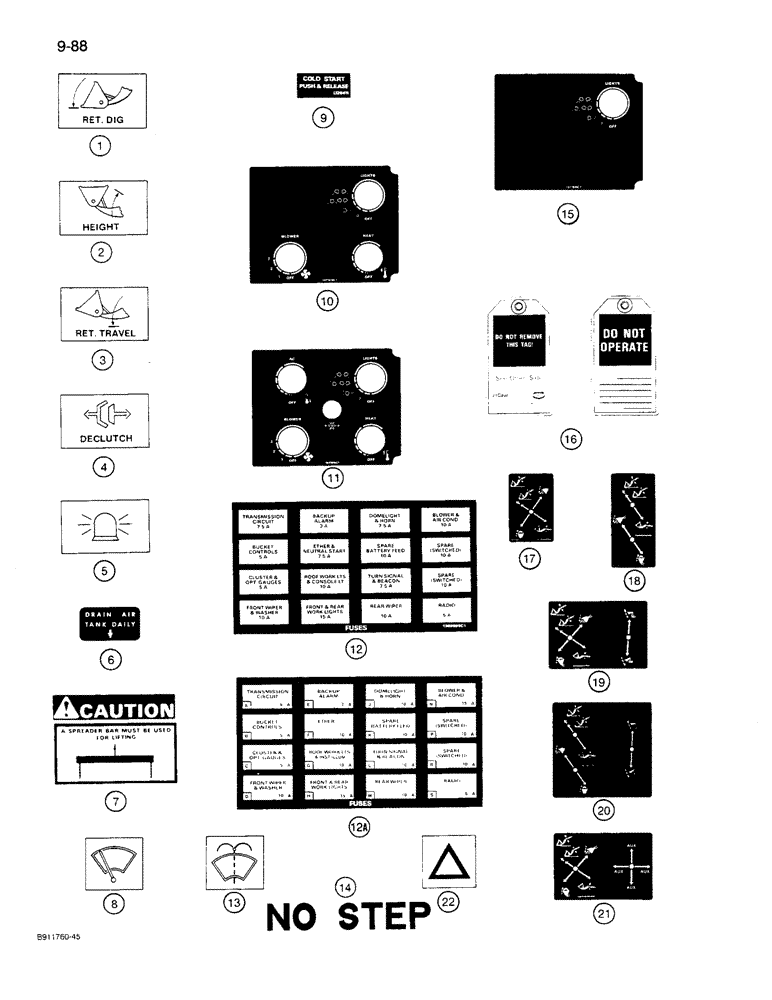

Запчасти Case 621 (9-88) - DECALS (09) - CHASSIS/ATTACHMENTS

1

A187691

IDEOGRAM

DECAL -, Serial Range: return-dig

1шт.

2

A187692

IDEOGRAM

DECAL - height control

1шт.

3

A187693

IDEOGRAM

DECAL - return to travel, bucket

1шт.

4

A187696

IDEOGRAM

DECAL - declutch selector

1шт.

5

245917C1

DECAL

DECAL - rotating beacon

1шт.

6

321-1077

DECAL

- Drain Air Tank Daily

1шт.

7

321-3574

DECAL

- Caution, a spreader bar must be used for lifting

3шт.

8

3231781R1

IDEOGRAM

DECAL - rear wiper switch

1шт.

9

L126411

DECAL

- cold start

1шт.

10

1977818C1

DECAL

- environmental, cab models with heater

1шт.

11

1977819C1

DECAL

- environmental, cab models with heater and air conditioning

1шт.

12

1969969C1

DECAL

- fuses, Serial Range: -JAK0027512

1шт.

12a

1990800C2

DECAL

- fuses, Start Serial: JAK0027512

1шт.

13

3231783R1

IDEOGRAM

DECAL - windshield washer

1шт.

14

H239079

DECAL

- No Step, located on air conditioning condenser

1шт.

15

1977820C1

DECAL

- environmental, canopy models

1шт.

16

321-4614

TAG

- do not operate

1шт.

17

1977319C1

DECAL

- loader control, use with L116443 single lever remote control valve with two spool valve shown on Figure 8-46

1шт.

18

1977651C1

DECAL

- loader control, use with L118040 dual lever remote control valve with two spool valve shown on Figure 8-48

1шт.

19

1977321C1

DECAL

- loader control, use with L116443 single lever and L123917 auxiliary single lever remote control valves with three spool valve shown on Figure 8-52

1шт.

20

1977320C1

DECAL

- loader control, use with L118040 dual lever and L123917 auxiliary single lever remote control valves with three spool valve shown on Figure 8-54

1шт.

21

1977322C1

DECAL

- loader control, use with (2) L116443 single lever remote control valves with four spool valve shown on Figure 8-58

1шт.

22

245916C1

DECAL

DECAL - flasher lamp switch

1шт.
