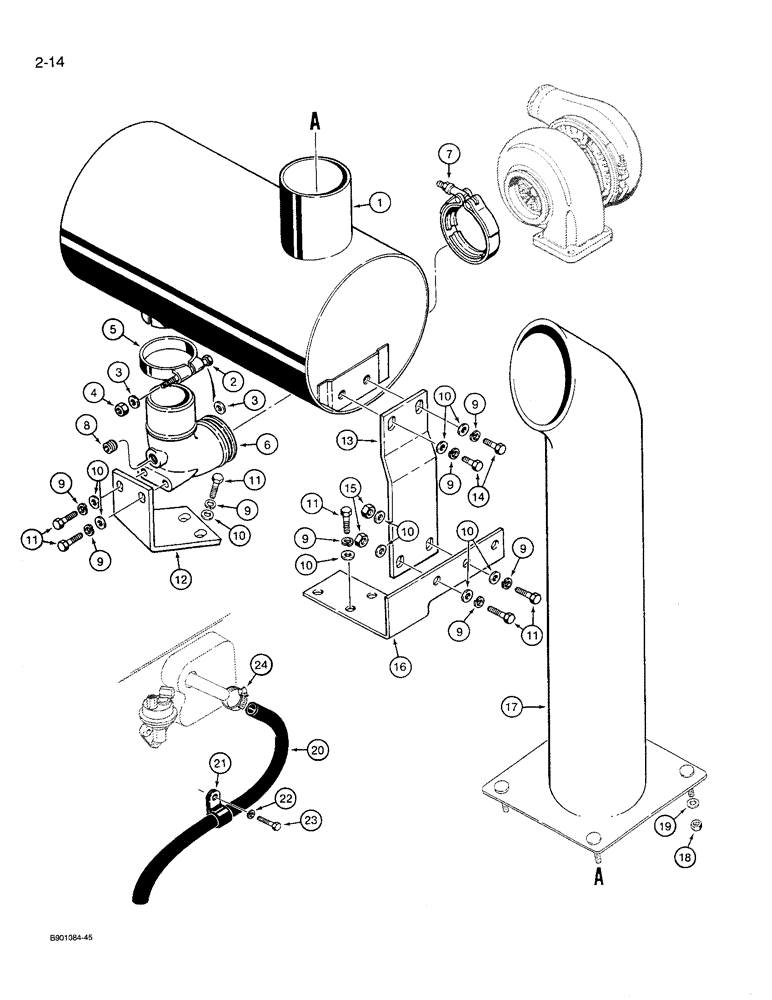

Запчасти Case 621 (2-14) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

A184369

MUFFLER

- exhaust

1шт.

2

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch

1шт.

3

D41740

WASHER

- flat, 3/8 x 1 x 1/8 inch, hardened

2шт.

4

425-106

NUT,3/8"-16, Cl 5

1шт.

5

R27691

CLAMP

- muffler to turbocharger elbow

1шт.

6

A173623

ELBOW

-, Serial Range: turbocharger-muffler

1шт.

7

A170467

CLAMP,72mm ID

- elbow, at turbocharger

1шт.

8

221-841

PLUG

- hex socket, 1/4 inch PT

1шт.

9

892-11010

LOCK WASHER,M10

11шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

13шт.

11

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

9шт.

12

A171823

BRACKET

- elbow

1шт.

13

A184489

SUPPORT

BRACKET - muffler mounting

1шт.

14

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

15

825-1410

NUT,M10, Cl 8

2шт.

16

A184490

SUPPORT

BRACKET -, Serial Range: muffler-engine

1шт.

17

L127576

TUBE

PIPE - curved, exhaust

1шт.

18

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

4шт.

19

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, 3/8 inch, hardened

4шт.

20

L126419

HOSE,19 mm ID x 650.00 mm

Breather, From Engine 19 mm ID x 650.00 mm

1шт.

21

NLS

NO LONGER SERVICED

-, Serial Range: hose,-engine

1шт.

22

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

23

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

24

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - adj, 9/16 - 1-1/16 inch dia, hose

1шт.
