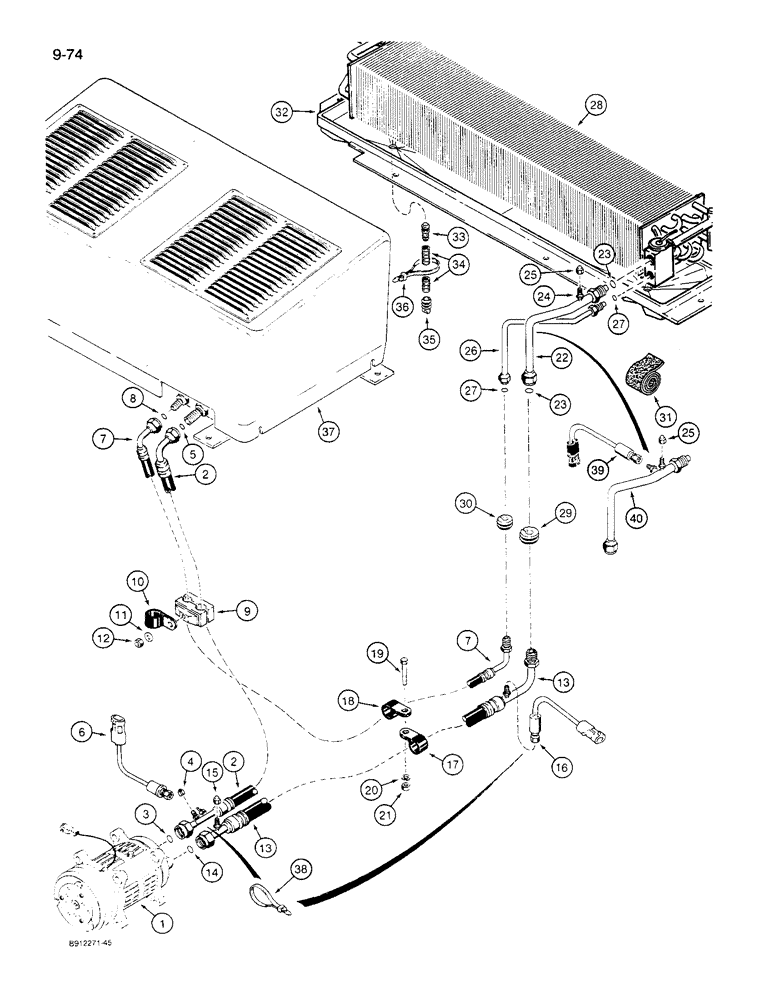

Запчасти Case 621 (9-74) - AIR CONDITIONING SYSTEM, COMPRESSOR TO CONDENSER AND EVAPORATOR CORE (09) - CHASSIS/ATTACHMENTS

1

97179C2

COMPRESSOR

ASSEMBLY - air conditioning, parts list Figure 9-82

1шт.

2

1954629C1

HOSE

- 1185 mm long, supply, compressor to condenser, Includes: Ref. 3 - 5

1шт.

3

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

- 9/16 x 11/16 inch, at compressor outlet port

1шт.

4

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare

1-2шт.

5

375271R1

O-RING,0.426" ID x 0.07" Width

- 7/16 x 9/16 inch Class 5, at condenser

1шт.

6

92038C1

SWITCH, A/C HIGH PRE

SWITCH - high pressure, air conditioning

1шт.

7

1954642C1

HOSE

- 1325 mm long, return, condenser to evaporator core, Includes: Ref. 8

1шт.

8

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Hose, at condenser

1шт.

9

L115095

CLAMP

- hose, includes both halves and metal top plate

1шт.

10

49838

CLAMP

- retaining, hose

1шт.

11

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

12

231-1445

NUT,5/16"-18, GB

NUT - light hex, self-locking, 5/16 inch NC

1шт.

13

1954643C2

HOSE

- 1050 mm long, evaporator core to compressor inlet port, Includes: Ref. 14 & 15

1шт.

14

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

- 9/16 x 11/16 inch, hose, at compressor

1шт.

15

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare

1-2шт.

16

L127461

SWITCH

- low pressure, attaches to item 13, hose, Serial Range: -JAK0027512

1шт.

17

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- P-type, right-hand hose

1шт.

18

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- P-type, left-hand hose

1шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

20

492-11038

LOCK WASHER,3/8"

1шт.

21

425-106

NUT,3/8"-16, Cl 5

1шт.

22

97140C4

PIPE

TUBE - upper, pressure, Includes: Ref. 23 - 25, Serial Range: -JAK0027512

1шт.

23

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

2шт.

24

1250594C1

CORE

VALVE - supply hose

1шт.

25

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare

1шт.

26

97141C2

PIPE

TUBE - lower, return, condenser to evaporator core, Includes: Ref. 27

1шт.

27

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

28

98369C3

RADIATOR

CORE ASSEMBLY - combination, air conditioning and heater, parts list Figure 9-70

1шт.

29

L124504

GROMMET

- upper tube

1шт.

30

F37765

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

- lower tube

1шт.

31

83822C1

TAPE

- 24 inch (610 mm) long, rubber, insulation, cut to required length from 1954475C1 bulk tape, air conditioning core tubes, valve, and hoses, see below

5шт.

32

1339577C3

PAN

- drip, condensation, see Figure 9-70 for seals and mounting

1шт.

33

1250522C3

FITTING

FITTING - drain, Serial Range: hose-housing

2шт.

34

1977334C1

HOSE

- 24 inch (610 mm) long, cut from 198091C2 bulk hose, see below, drain, from condensation pan

2шт.

35

109239C2

CHECK VALVE

VALVE, CHECK

2шт.

36

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, .098" x 8"

4шт.

37

97182C4

CAPACITOR

CONDENSER ASSEMBLY - air conditioning, parts list and mounting Figures 9-76 and 9-78

1шт.

38

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

39

92153C1

SWITCH

- low pressure, attaches to item 22, tube JAK0027512 to

1шт.

40

97140C5

PIPE

TUBE - upper, pressure JAK0027512 to

1шт.

1954475C1

ROLL

TAPE - bulk, 30 ft (9150 mm) long, insulation

1шт.

198091C2

HOSE

- bulk roll, 50 ft (15240 mm) long, drain

1шт.
