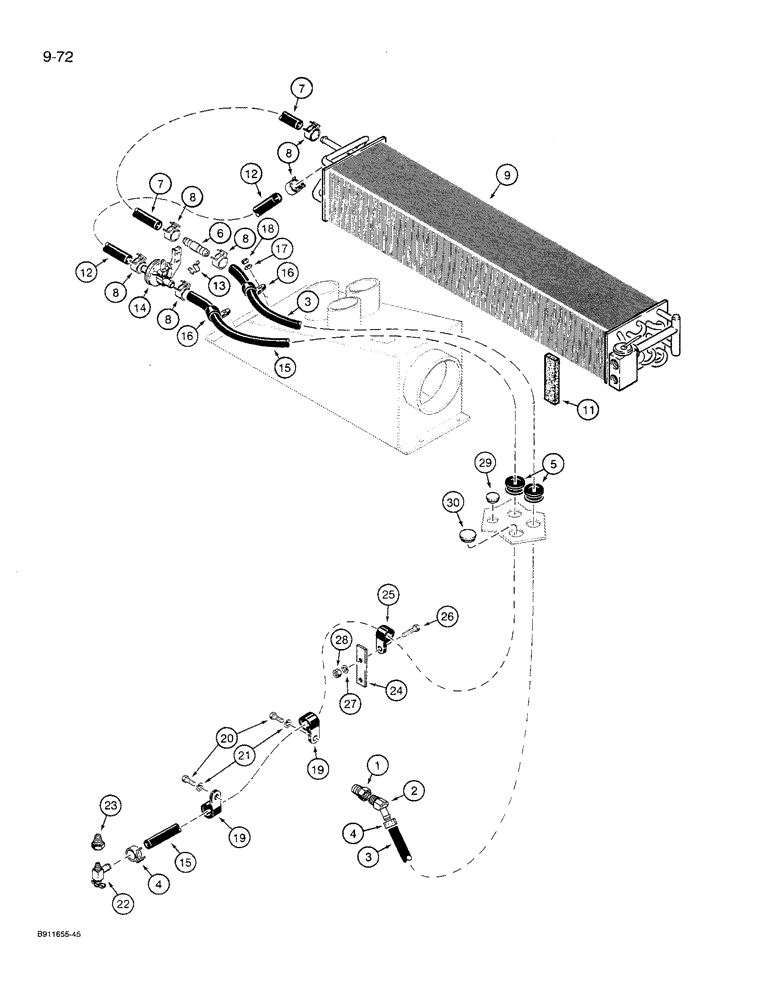

Запчасти Case 621 (9-72) - HEATING SYSTEM (09) - CHASSIS/ATTACHMENTS

1

221-1093

REDUCER,Hex, 3/4" x 1/2" NPT

- pipe, 3/4 male x 1/2 inch female

1шт.

2

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

- 45 degree, 5/8 stem end x 1/2 inch PT

1шт.

3

1327782C2

LARGE HOSE,15.50 mm ID x 3302.00 mm

HEATER HOSE - With white stripe, Supply, Cut from R54970 bulk hose, See below 15.50 mm ID x 3302.00 mm

1шт.

4

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, #24

6шт.

5

L116914

GROMMET

- heater hoses

2шт.

6

1301342C1

FITTING

CONNECTOR - heater hose

1шт.

7

1981958C1

HEATER HOSE,15.50 mm ID x 330.00 mm

HOSE , Preformed, Heater Supply 15.50 mm ID x 330.00 mm

1шт.

8

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Spring #24

6шт.

9

98369C3

RADIATOR

CORE ASSEMBLY - combination, heating and air conditioning, parts list Figure 9-70

1шт.

10

1331025C1

CORE

- used on models with heater only, not shown

1шт.

11

1340075C1

SEAL

- 5-1/8 inch (130 mm) long, core ends, cut from 1974883C1 bulk seal, see below

4шт.

12

1977501C1

HEATER HOSE,15.50 mm ID x 610.00 mm

HOSE , Return, At Core 15.50 mm ID x 610.00 mm

1шт.

13

1954626C1

SPRING CLIP

CLIP - spring, heater cable retaining

1шт.

14

1331087C1

HEATER VALVE

VALVE - heater control

1шт.

15

1327781C2

HOSE,15.50 mm ID x 2921.00 mm

HEATER HOSE - Heater return, Cut from 97252C1 bulk hose, See below 15.50 mm ID x 2921.00 mm

1шт.

16

R14668

CLAMP

- hose to plenum duct

2шт.

17

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

2шт.

18

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

19

51200320

CLAMP

- hose

2шт.

20

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

2шт.

21

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

22

301803R1

SHUT-OFF VALVE

VALVE - shutoff, water

1шт.

23

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

- pipe, 1/2 male x 3/8 inch female

1шт.

24

L119144

LARGE PLATE

STRAP - clamp mounting

1шт.

25

R14668

CLAMP

- hose

1шт.

26

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

27

492-11038

LOCK WASHER,3/8"

1шт.

28

425-106

NUT,3/8"-16, Cl 5

1шт.

29

353-411

PLUG,Dome, 1.000" hole, Nylon

Used on models with heating only Dome, 1.000" hole, Nylon

1шт.

30

192280

HOLE PLUG BUTTON,1 1/4"

PLUG - nylon, 1-1/4 inch, used on models with heating only

1шт.

R54970

HEATER HOSE,15.88mm ID x 15240mm Bulk

15.88 mm ID x 15240.0 mm, with White Stripe, Use to make item 3

1шт.

97252C1

HOSE,15.875 mm ID x 15240 mm Bulk

Use to Make Item 15 15.875 mm ID x 15240 mm Bulk

1шт.

1974883C1

SEAL

- bulk roll, 50 ft (15240 mm) long

1шт.
