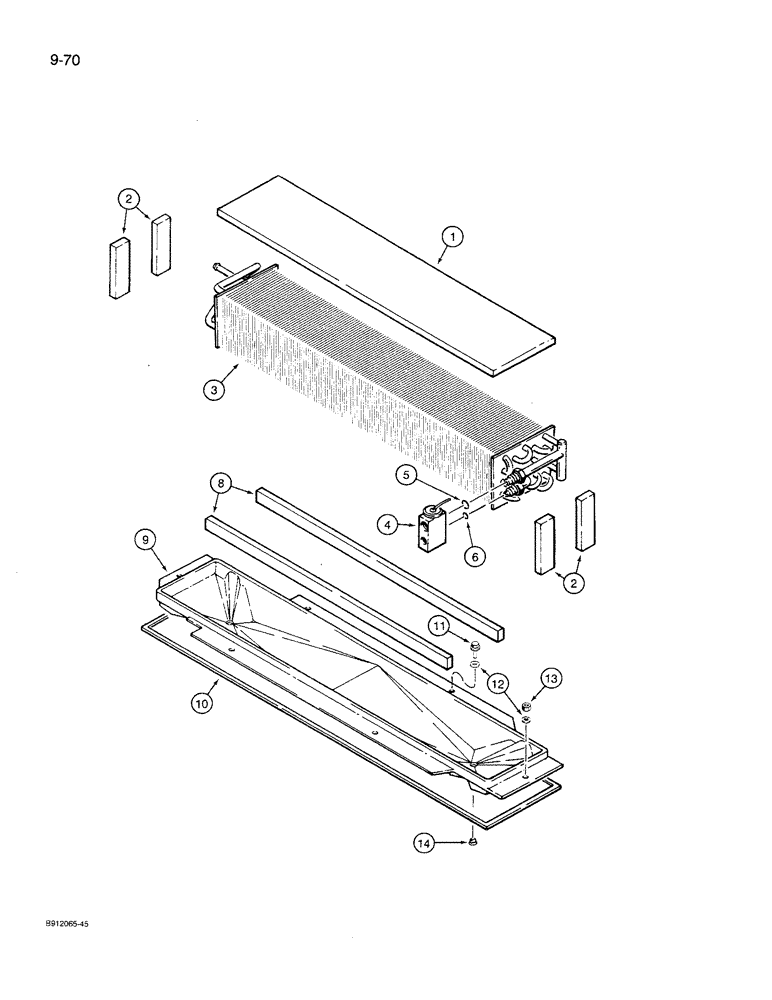

Запчасти Case 621 (9-70) - HEATING AND AIR CONDITIONING CORE (09) - CHASSIS/ATTACHMENTS

1

1276337C2

RUBBER INSULATOR

SEAL - 38-1/8 x 10-1/2 x 1/2 inch (970 x 266 x 13 mm), cut from 1327515C1 bulk seal, see below, core, upper

1шт.

2

1340075C2

SEAL

SEAL - 5-1/8 inch (130 mm) long, cut from 1999750C1 bulk seal, see below, core, end

4шт.

3

98369C3

RADIATOR

CORE ASSEMBLY - air conditioning and heater, see item 7 for core used on models with heater only

1шт.

4

98370C3

VALVE

- expansion, 1-1/2 inch

1шт.

5

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

6

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

7

1331025C1

CORE

- models with heater only, not shown

1шт.

8

98357C1

SEALING STRIP

- 970 mm long, cut from 1974884C1 bulk seal, see below, attaches to bottom of drip pan

2шт.

9

1339577C3

PAN

- drip, condensation

1шт.

10

1977907C1

SEAL

- 87-1/8 inch (2213 mm) long, cut from 187874C2 bulk seal, see below, attaches to floor under condensation pan

1шт.

11

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

4шт.

12

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

6шт.

13

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

14

353-404

PLUG,Dome, .500" hole, Nylon

2шт.

1327515C1

PANEL

SEAL - bulk sheet, 54 inch (1372 mm) wide x 120 inch (3048 mm) long x 1/2 inch (13 mm) thick, use to make item 1 seal

1шт.

1999750C1

SEAL

- bulk roll, 1-1/2 inch (38 mm) wide x 50 ft (15240 mm) long x 1 inch (25 mm) thick, use to make item 2 seal

1шт.

1974884C1

SEAL

- bulk roll, 1/2 inch (13 mm) wide x 50 ft (15240 mm) long x 1 inch (25 mm) thick, use to make item 8 seal

1шт.

187874C2

SEAL

SEAL - bulk roll, 3/8 inch (10 mm) wide x 50 ft (15240 mm) long x 1/8 inch (3 mm) thick, use to make items 10 seal

1шт.
