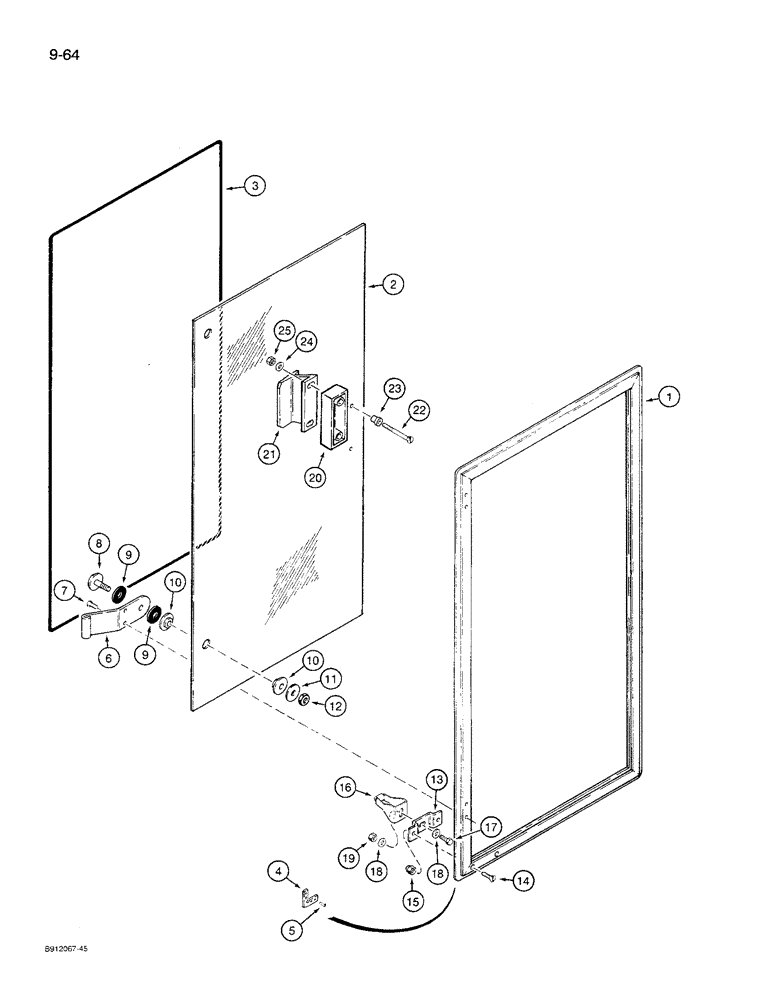

Запчасти Case 621 (9-64) - CAB DOOR WINDOW (09) - CHASSIS/ATTACHMENTS

1344277C1

WINDOW ASSY

WINDOW ASSEMBLY - cab door, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - window, cab door

1шт.

2

1989906C1

GLASS,CAB

GLASS - window

1шт.

3

1977655C1

SEAL

SEAL - 120 inch (3048 mm) long

1шт.

4

1999981C1

KEY

ANGLE - corner key

4шт.

5

1999982C1

SCREW

- special, No. 10 - 32 x 7/16 inch

16шт.

6

1339737C2

HINGE

- window retaining

2шт.

7

1990973C2

SELF-TAP SCREW,Cross Pan Hd, #10-32 x 5/8"

SCREW - pan head slotted, No. 10 NF x 1/2 inch, special

4шт.

8

1970077C1

BOLT

BOLT - round head, 1/2 NF x 1 inch

2шт.

9

1970078C1

WASHER

SEAL - rubber, 17/32 ID x 1-13/32 OD x 1/16 inch thick

4шт.

10

1970079C1

SEALING WASHER

SEAL - glass bushing

4шт.

11

1970080C1

WASHER

- flat, 17/32 x 1-13/32 x 3/32 inch

2шт.

12

1970081C1

NUT

- hex, 1/2 inch NF

2шт.

13

1339736C1

SUPPORT

BRACKET - mounting, window catch

1шт.

14

1999752C1

SELF-TAP SCREW,Sltd Flat Hd, 1/4"-20 x 7/8"

SCREW - flat slotted head, 1/4 NC x 7/8 inch, special

2шт.

15

129-886

CROWN NUT,Crown, 1/4"-20

- dome, 1/4 inch NC

2шт.

16

1981896C1

STOP

CATCH - window

1шт.

17

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

19

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.

20

1340417C1

BLOCK ASSY.

BRACKET - handle mounting

1шт.

21

97399C1

HANDLE

- window

1шт.

22

1990974C1

SELF-TAP SCREW

SCREW - machine, oval Phillips head, No. 10 NC x 1-3/4 inch, special

2шт.

23

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- nylon, black, Serial Range: glass-bracket

2шт.

24

195-81029

WASHER,#10

(7/32 x 31/64 x 3/64") #10

2шт.

25

F45165

SPECIAL NUT,#10-24

NUT - hex, self-locking, No. 10 NC, Teflon coated

2шт.
