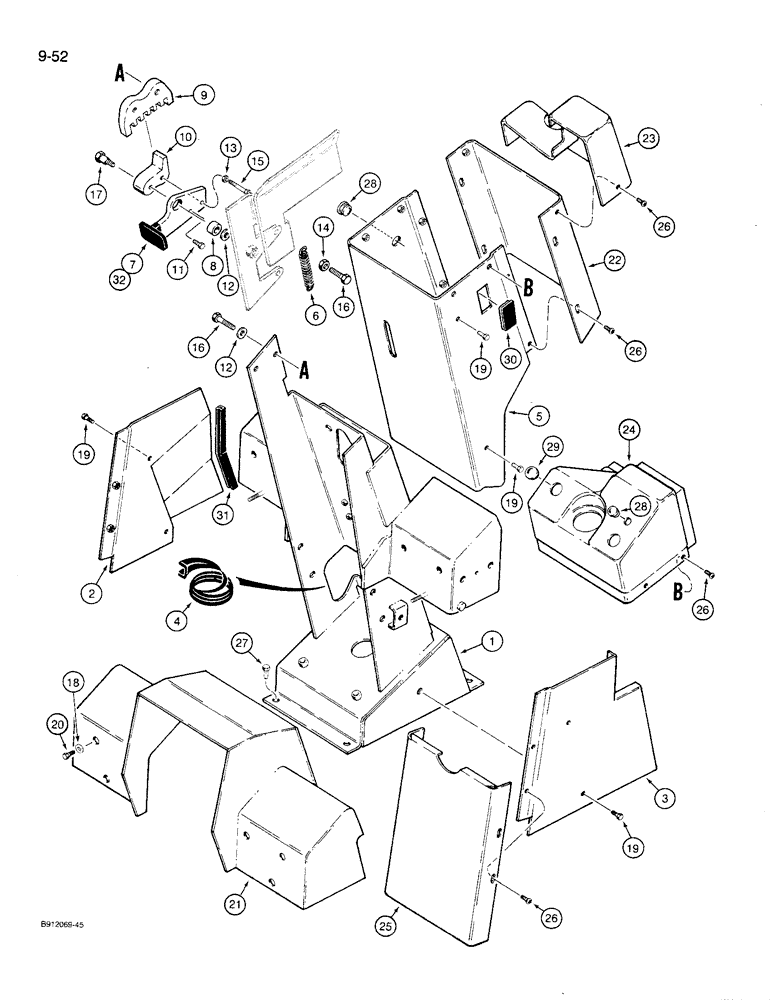

Запчасти Case 621 (9-52) - PEDESTAL AND TILT LATCH, PRIOR TO P.I.N. JAK0027512 (09) - CHASSIS/ATTACHMENTS

1

1970046C4

SUPPORT

BASE - pedestal

1шт.

2

1970010C3

COVER

- pedestal, lower left-hand side

1шт.

3

1970011C2

COVER

- pedestal, lower right-hand side

1шт.

4

1970021C1

GROMMET

TRIM - flexible, pedestal

2шт.

5

1338172C1

COVER

- pedestal, molded, covers upper rear and right-hand and left-hand sides

1шт.

6

A163012

SPRING

- tilt latch

1шт.

7

1338174C1

LEVER

- tilt latch, no longer available, order item 32, lever, Includes: Ref. 8

1шт.

8

NSS

NOT SOLD SEPARAT

BUSHING - lever

1шт.

9

1969906C3

LATCH ASSY.

RACK - tilt latch

1шт.

10

1969903C4

LATCH ASSY.

LATCH - tooth

1шт.

11

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

13

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex, jam, 1/4 inch NC

1шт.

14

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

1шт.

15

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

1шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

17

596021R1

BOLT

BOLT - shoulder, 3/8 NC x 1 inch, special

1шт.

18

195-81022

WASHER,3/8" x 7/8" x .066"

- flat, 3/8 x 7/8 x 1/16 inch

4шт.

19

113-32

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

8шт.

20

113-191

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

Hex, 5/16"-18 x 3/4",G5, Full Thd

4шт.

21

1339987C1

COVER

- brake shaft

1шт.

22

1338170C1

COVER

- pedestal, upper front

1шт.

23

1977339C1

COVER

- steering column, front

1шт.

24

1977338C1

COVER

- steering column, rear

1шт.

25

1969910C2

COVER

- pedestal, lower center

1шт.

26

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

14шт.

27

1327799C1

BOLT,Hex Wshr Hd, 3/8" x 1 1/4"

BOLT - special, 3/8 NC x 1-1/4 inch

4шт.

28

353-406

PLUG,Dome, .625" hole, Nylon

- nylon, 5/8 inch

2шт.

29

353-413

PLUG,Dome, 1.187" hole, Nylon

- nylon, 1-3/16 inch

1шт.

30

245918C1

LENS

PLUG - rectangular, blanking, pedestal cover

1шт.

31

D38500

LINING

TRIM - edge, 9-13/16 inch (249 mm) long

1шт.

32

1990517C1

LEVER

- tilt latch, does not use bushing

1шт.
