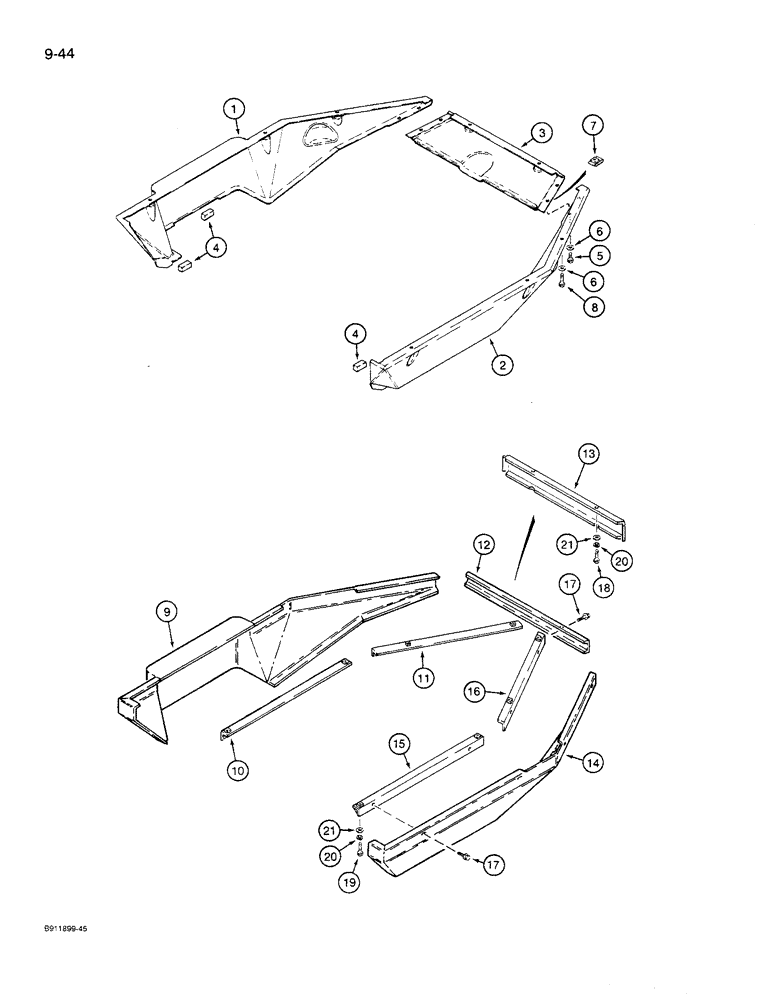

Запчасти Case 621 (9-44) - LOWER CAB AND CANOPY COVERS, PLASTIC COVERS (09) - CHASSIS/ATTACHMENTS

1

L129054

SKIRT

COVER - plastic, left-hand, lower cab and canopy covers plastic covers

1шт.

2

L129055

SKIRT

COVER - plastic, right-hand, lower cab and conopy covers plastic covers

1шт.

3

L129056

SKIRT

COVER - plastic, center, lower cab and canopy covers plastic covers

1шт.

4

L129961

SEALING STRIP

- 19 x 50 mm long, adhesive back, lower cab and canopy covers plastic covers

3шт.

5

409-1512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, lower cab and canopy covers plastic covers

4шт.

6

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64"), Lower cab and canopy covers plastic covers 5/16"

12шт.

7

131-639

SPRING NUT,U, Rtnr, 5/16" - 18

- U-type, 5/16 inch NC, lower cab and canopy covers plastic covers

4шт.

8

409-1520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch, lower cab and canopy covers plastic covers

8шт.

9

L126620

COVER

- metal, left-hand, metal covers

1шт.

10

L129919

BRACKET

- left-hand cover, rear, metal covers

1шт.

11

L129921

BRACKET

- left-hand cover, front, metal covers

1шт.

12

1969928C1

PROFILE

PANEL - center, if used, metal covers

1шт.

13

L129618

SHEET

COVER - metal, center, if used, metal covers

1шт.

14

L125718

COVER

- metal, right-hand, metal covers

1шт.

15

L129918

BRACKET

- right-hand cover, rear, metal covers

1шт.

16

L129920

BRACKET

- right-hand cover, front, metal covers

1шт.

17

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, , Metal covers Hex Flg, 1/4"-20 x 3/4", G5, Full Thd

8-10шт.

18

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, metal covers

2шт.

19

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, metal covers

8шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , Metal covers 5/16"

10шт.

21

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64"), Metal covers 5/16"

10шт.
