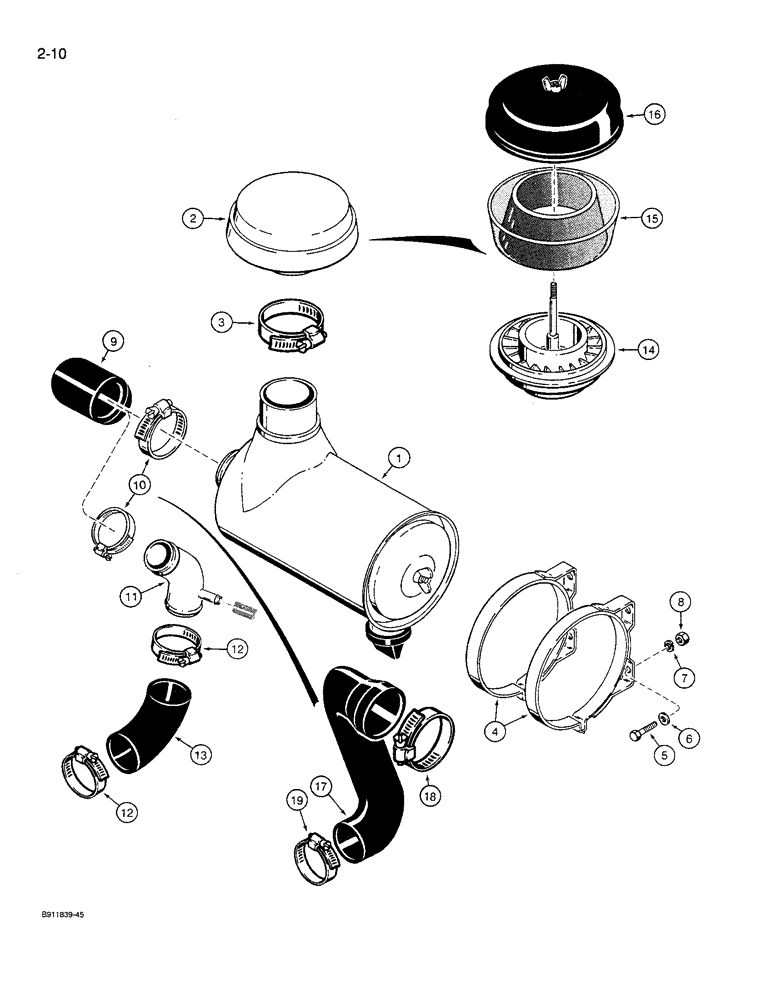

Запчасти Case 621 (2-10) - AIR CLEANER AND AIR INTAKE PARTS (02) - ENGINE

1

A173852

FILTER ASSY

CLEANER ASSEMBLY - air, engine, parts list Figure 2-12

1шт.

2

L10659

CAP

- air cleaner, if used, Includes: Ref. 3

1шт.

3

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - adj, 4-1/16 - 5 inch dia, cap

1шт.

4

A149780

BAND

- air cleaner mounting

2шт.

5

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

6

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

8

425-106

NUT,3/8"-16, Cl 5

4шт.

9

S112515

ELBOW

- 90 degree, rubber, reducing, at air cleaner, if used

1шт.

10

L124635

HOSE CLAMP

CLAMP - elbow to air cleaner and tube, if used

2шт.

11

L118977

TUBE

- air cleaner to engine and air compressor tube, if used

1шт.

12

L115549

CLAMP,69.85mm - 92.08mm

- elbow to tube and turbocharger, if used

2шт.

13

L17181

ELBOW

- 90 degree, rubber, at turbocharger, if used

1шт.

A171342

PRECLEANER

ASSEMBLY - air cleaner, if used, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - precleaner

1шт.

15

277377R1

FILTER BOWL

BOWL - precleaner

1шт.

16

A42465

COVER

- precleaner

1шт.

17

L129441

INTAKE AIR HOSE,76.00 mm ID, 102.00 mm ID, SAE J200

- Formed, Air Cleaner to Turbocharger Inlet, If used 76.00 mm ID, 102.00 mm ID, SAE J200

1шт.

18

L127771

CLAMP,107.95mm - 130.18mm

- air cleaner to hose, if used

1шт.

19

L116820

CLAMP,82.55mm - 104.78mm

- hose to turbocharger inlet, it used

1шт.
