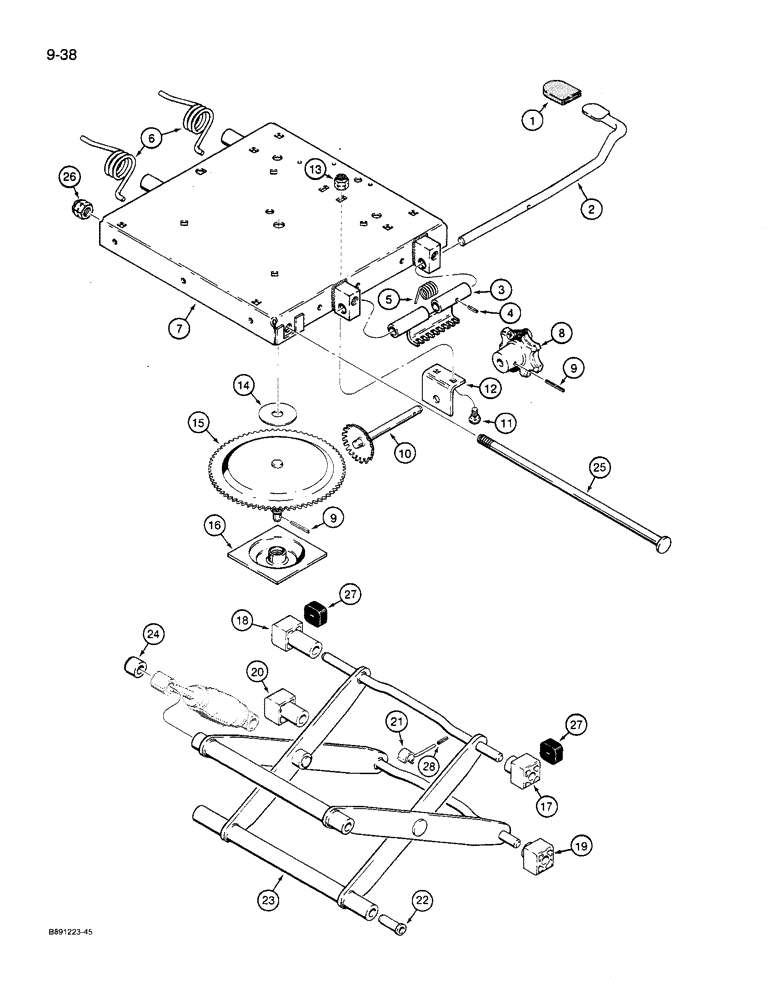

Запчасти Case 621 (9-38) - SUSPENSION SEATS (09) - CHASSIS/ATTACHMENTS

1954778C1

SEAT ASSY.

SEAT ASSEMBLY - suspension, vinyl, cab or canopy models, also includes parts on Figures 9-36 and 9-40, Includes: Ref. 1 - 28

1шт.

97150C1

SEAT ASSY.

SEAT ASSEMBLY - suspension, cloth, cab models, also includes parts on Figures 9-36 and 9-40, Includes: Ref. 1 - 28

1шт.

1

A45472

CAP

AND DECAL - height adjustment lever

1шт.

2

D82857

LEVER

- height adjustment

1шт.

Part of P/N 1977722C1 Seat Suspension Support Kit

1шт.

3

A47381

LATCH

- lever

1шт.

Part of P/N 1977722C1 Seat Suspension Support Kit

1шт.

4

138-2057

PIN,5/32" x 5/8", Coiled

1шт.

Part of P/N 1977722C1 Seat Suspension Support Kit

1шт.

5

A47382

SPRING

- latch

1шт.

Part of P/N 1977722C1 Seat Suspension Support Kit

1шт.

6

D82863

SPRING

- housing

2шт.

Part of P/N 1977722C1 Seat Suspension Support Kit

1шт.

7

N6870

HOUSING

- upper

1шт.

Part of P/N 1977722C1 Seat Suspension Support Kit

1шт.

8

A47763

KNOB

ASSEMBLY - includes handle and decals, which are not serviced separately

1шт.

Part of P/N 1977722C1 Seat Suspension Support Kit

1шт.

9

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

Part of P/N 1977722C1 Seat Suspension Support Kit

1шт.

10

A45513

GEAR

AND SHAFT - adjustment, weight

1шт.

Part of P/N 1977722C1 Seat Suspension Support Kit

1шт.

11

111-107

CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2

BOLT - carriage, 1/4 NC x 1/2 inch, grade 2

2шт.

Part of P/N 1977722C1 Seat Suspension Support Kit

1шт.

12

A45531

BRACKET

- shaft

1шт.

Part of P/N 1977722C1 Seat Suspension Support Kit

1шт.

13

86625061

NUT,1/4"-20, GB

NUT - light hex, self-locking, 1/4 inch NC

2шт.

Part of P/N 1977722C1 Seat Suspension Support Kit

1шт.

14

D82834

WASHER

- thrust

1шт.

Part of P/N 1977722C1 Seat Suspension Support Kit

1шт.

15

A45505

GEAR

AND SHAFT - suspension plate

1шт.

Part of P/N 1977722C1 Seat Suspension Support Kit

1шт.

16

A45504

SPRING WASHER

- spring

1шт.

Part of P/N 1977722C1 Seat Suspension Support Kit

1шт.

1977725C1

SLIDER

KIT - slider block, Includes: Ref. 17 - 22

1шт.

Part of P/N 1977722C1 Seat Suspension Support Kit

1шт.

17

A45517

BLOCK

- slider, 2-9/16 inch

1шт.

18

A45515

BLOCK

- slider, 1-9/16 inch

1шт.

19

A45516

BLOCK

- slider, 2-3/16 inch

1шт.

20

A45512

BLOCK

- slider, 1-3/16 inch

1шт.

21

A49160

INDICATOR

- ride height

1шт.

22

A47760

BUSHING

TUBE - bearing

4шт.

23

A47759

ARM

- suspension

1шт.

Part of P/N 1977722C1 Seat Suspension Support Kit

1шт.

24

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING - shock absorber

1шт.

Part of P/N 1977722C1 Seat Suspension Support Kit

1шт.

25

A47762

SHAFT

- bearing

1шт.

Part of P/N 1977722C1 Seat Suspension Support Kit

1шт.

26

131-1100

LOCK NUT,1/2"-13, GA

NUT, LOCK, 1/2"-13, GA

1шт.

Part of P/N 1977722C1 Seat Suspension Support Kit

1шт.

27

A45054

BUMPER,Neoprene

- seat

2шт.

Part of P/N 1977722C1 Seat Suspension Support Kit

1шт.

28

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, 5/32" x 5/8", Slotted

1шт.

Part of P/N 1977722C1 Seat Suspension Support Kit

1шт.

1977722C1

SUSPENSION BLOCK

KIT - seat suspension support, Includes: Ref. 2 - 16, P/N 1977725C1 and Ref. 23 - 28 on this figure and items on Figures 9-36 and 9-40

1шт.
